8.6.

Placement of the Box for Measurement

Place the box to be measured flush against the
back of the ExpressCube™ countertop such that
one side of the box is in contact with the rear face.
The orientation of the box is arbitrary as long as it:
•
Sits over the center array
•
Is flush (contact) to the back
•
Sits within the yellow guide lines

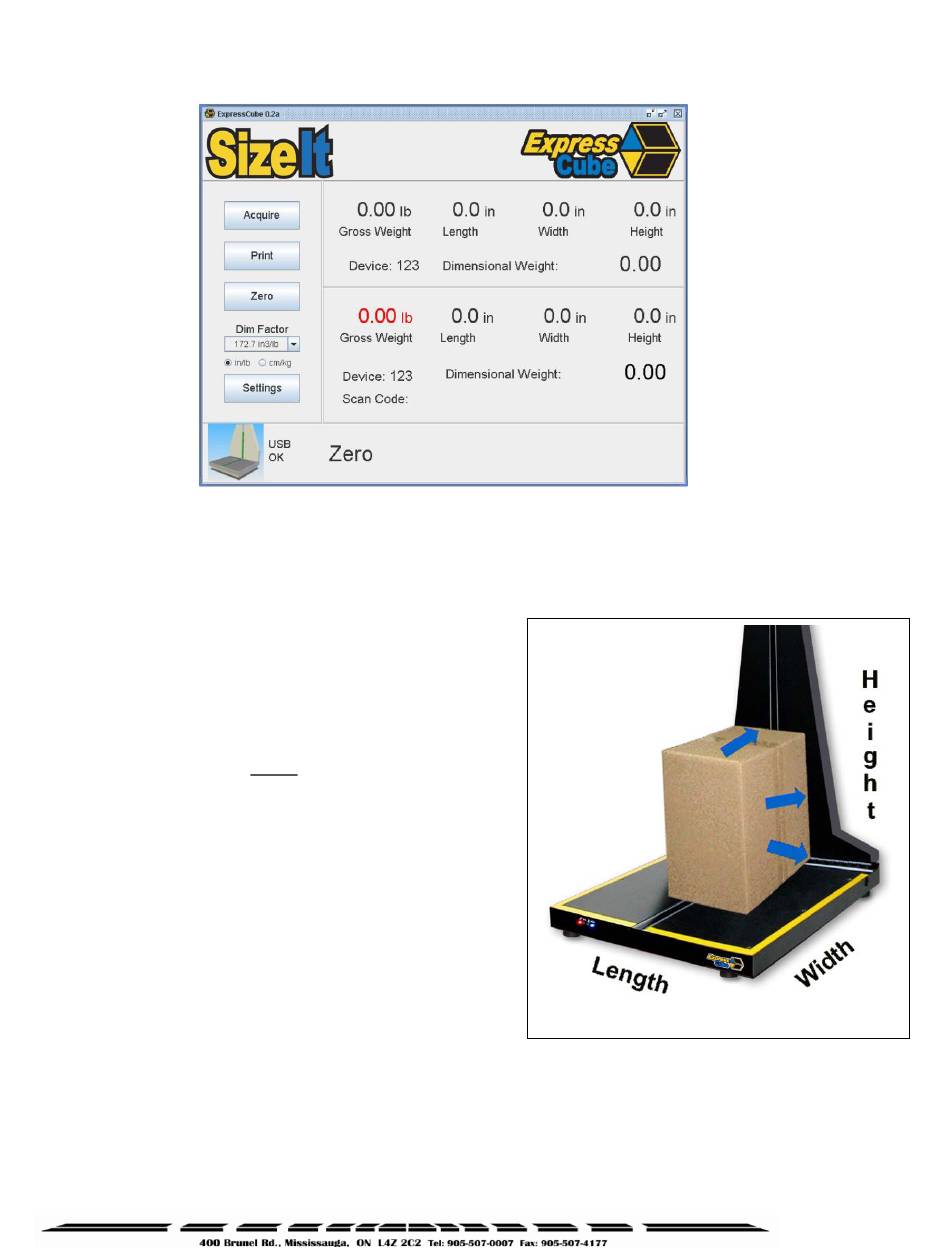

The illustration shows an example of a box
ready for measurement and indicates how
the dimensions will be recorded.
ExpressCube™ SizeIt™ Display
22
