Summary

The ExpressCube™ countertop is a very accurate MDMD (Multi-Dimensional Measuring Device) that
is capable of measuring cuboidal (rectangular/square) boxes with great precision. The
ExpressCube™ countertop has built in controls to prevent erroneous readings that cannot be altered
by third party software control. Even with these built in controls, the user must exercise care to
follow these guidelines:
•
Boxes cannot exceed the dimension and weight listed in the specifications.
•
Boxes must be cuboidal ( i.e. rectangular or square).
•
Severely damaged packages or packages covered by excessive mud or ice can cause errors
for both dimensions and weight.
•
Both the platform and the package being measured must be free from physical contact with
surrounding objects.
•
Place objects on the platform – do not drop packages onto the platform.
Keep the platform clean and free of dust build up to ensure optimum operating
performance.
8.2.

Main unit LED indicators

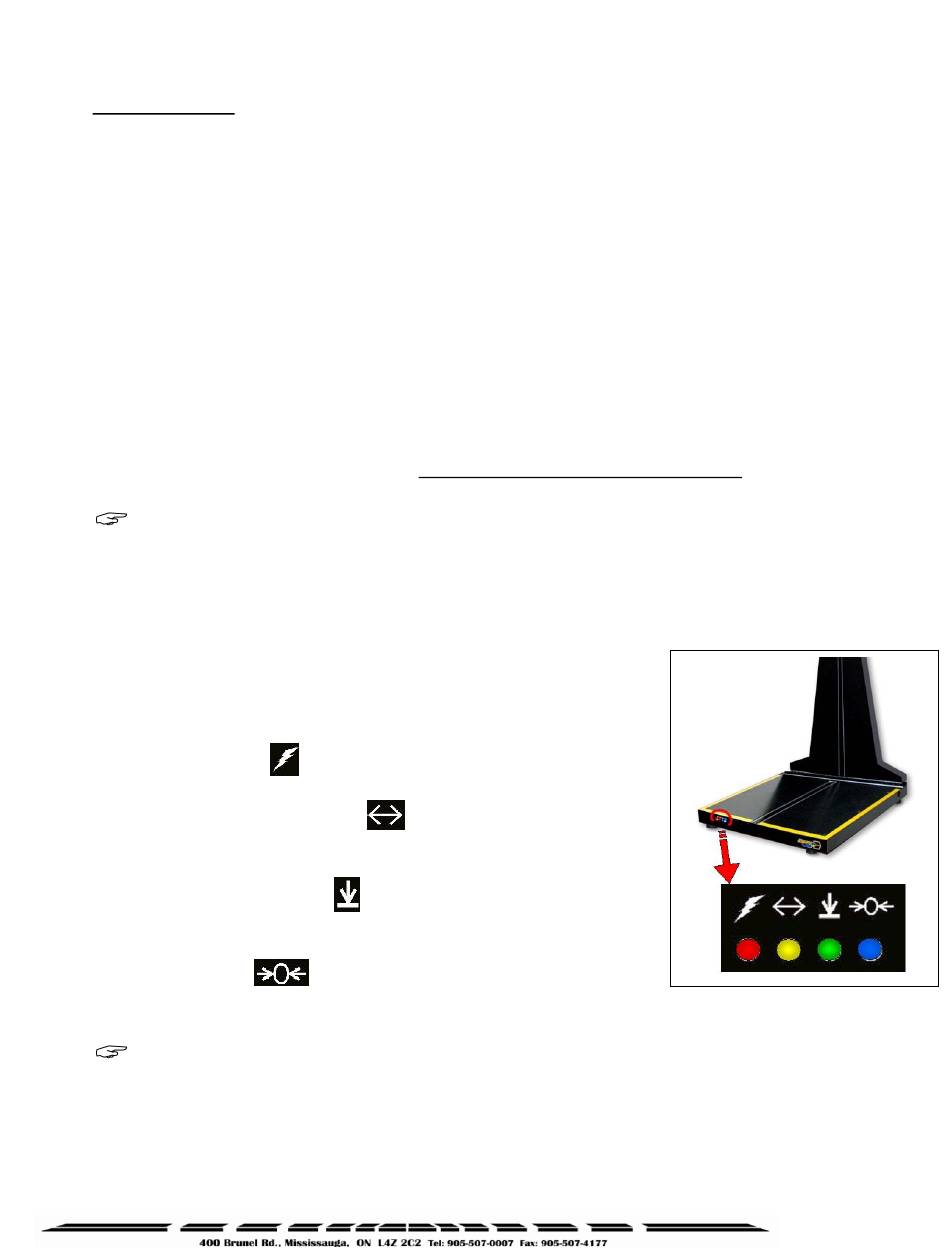

The main unit LED indicators are a set of four LEDs mounted on the
front of the main platform of the ExpressCube™ countertop. They
give an accurate status of the ExpressCube™ countertop main
computer and are unaffected by third party software.
•
Red – Power
unit has power.
•
Yellow – Valid Dimension
indicates that the ExpressCube™ countertop has measured
a parcel placed on the platform.
•
Green – Valid Weight
that the ExpressCube™ countertop has weighed a parcel
placed on the platform.
•
Blue – Zero
ExpressCube™ countertop is in a zero (no-load) condition.
The ExpressCube
reached a zero condition after the removal of the previous package. The Yellow and Green
LED indicators will remain in the ACQUIRED state until a zero condition is achieved after the
last recorded measurement.
– A steady illumination indicates that the
– A steady illumination
– A steady illumination indicates
- A steady illumination indicates that the
™
countertop will not attempt any new measurement until the unit has
