Positive Alarm Sequence (Pas); Presignal - Notifier AFC-600 Programming Manual

$SSHQGL[ % 6SHFLDO =RQH 2XWSXWV
3UHVLJQDO
3RVLWLYH $ODUP 6HTXHQFH
3$6
70
Technical Manuals Online! - http://www.tech-man.com

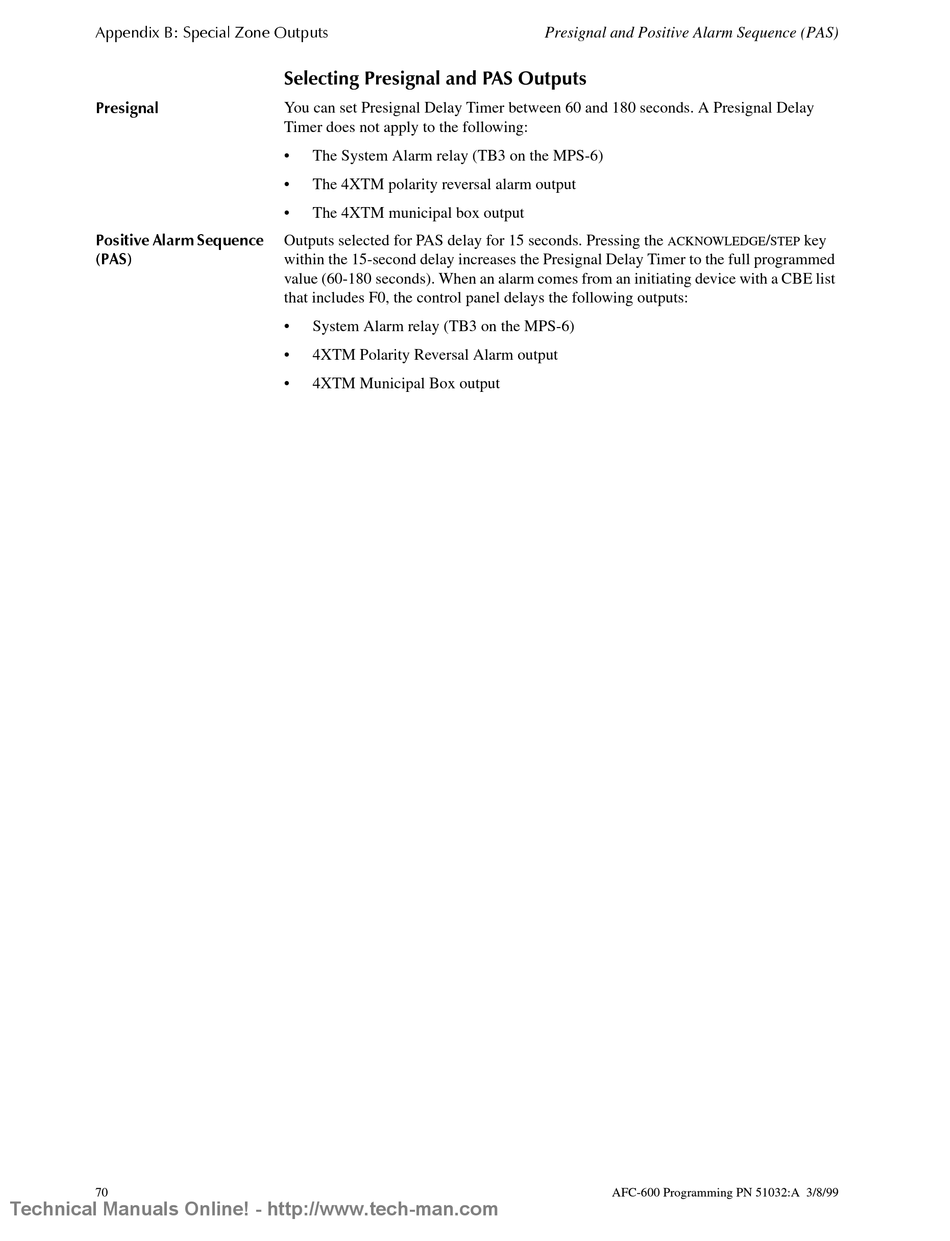

6HOHFWLQJ3UHVLJQDODQG3$62XWSXWV
You can set Presignal Delay Timer between 60 and 180 seconds. A Presignal Delay
Timer does not apply to the following:
• The System Alarm relay (TB3 on the MPS-6)
• The 4XTM polarity reversal alarm output
• The 4XTM municipal box output
Outputs selected for PAS delay for 15 seconds. Pressing the
within the 15-second delay increases the Presignal Delay Timer to the full programmed
value (60-180 seconds). When an alarm comes from an initiating device with a CBE list
that includes F0, the control panel delays the following outputs:
• System Alarm relay (TB3 on the MPS-6)
• 4XTM Polarity Reversal Alarm output
• 4XTM Municipal Box output
Presignal and Positive Alarm Sequence (PAS)
ACKNOWLEDGE
AFC-600 Programming PN 51032:A 3/8/99
/ key
STEP
