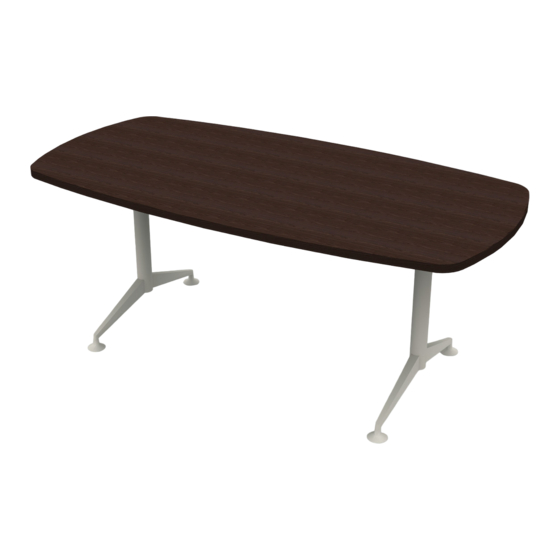

AIS Day to Day Tables Quick Start Manual

AIS Day to Day Tables Quick Start Manual

Advertisement

Quick Links

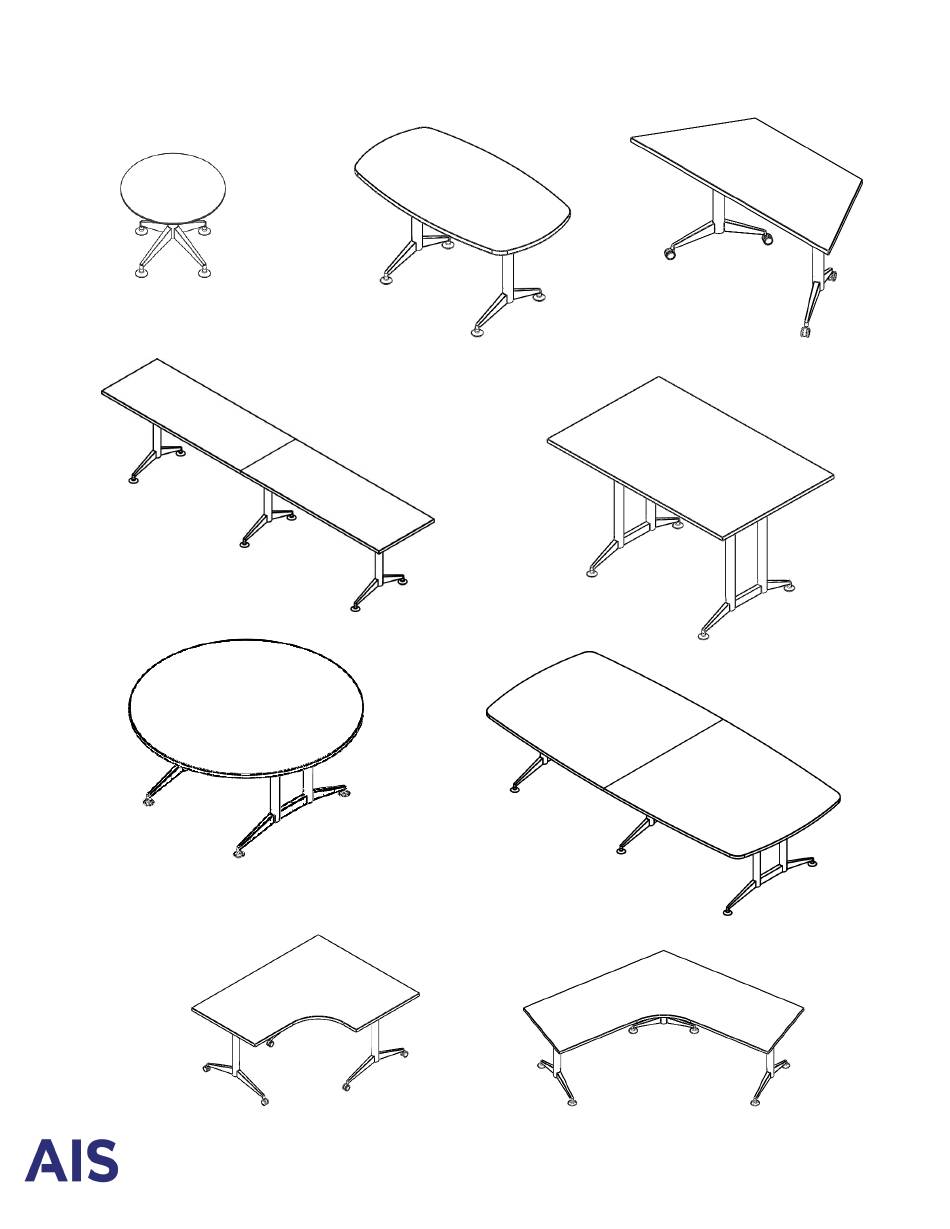

Day to Day Tables –
Aluminum Base
T-ABTINSTALL Revision 12.12.2018
www.ais-inc.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Day to Day Tables and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AIS Day to Day Tables

  • Page 1 Day to Day Tables – Aluminum Base T-ABTINSTALL Revision 12.12.2018 www.ais-inc.com...
  • Page 2: Revision Log

    Day to Day Tables – Revision Log Aluminum Base Date Page Description of change Name 6/25/2018 Released S. Powers 12/12/18 Added AIS Power Unit instructijons S. Powers T-ABTINSTALL Revision 12.12.2018 www.ais-inc.com...
  • Page 3 Day to Day Tables – X-Base Assembly Aluminum Base Hex Drive Flat Head Screw 5/16-18 X 1” Long 3/16” Hex Drive, 4 Places Worksurface Foot Post Insert RWFS-UTPI 3/8-16 X 1 3/8 Hex Bolt 3/8-16 Locknut RH-922400A627 RH-91831A127 Top Plate...
  • Page 4 Day to Day Tables – T-Base Assembly Aluminum Base 8” 8” Hex Drive Flat Head Screw 5/16-18 X 1” Long 3/16” Hex Drive, 4 Places Top Plate 8” 8” T-Base Double T-Base Worksurface 3” 3” 2” 2” 2” 5” 2”...
  • Page 5 Day to Day Tables – U-Channel Assembly Aluminum Base U-Channel (See following page for location) Flat head wood screw #9 x 7/8 long with #2 Phillips drive, silver x 12 T-ABTINSTALL Revision 12.12.2018 www.ais-inc.com...
  • Page 6 Day to Day Tables – U-Channel Assembly Aluminum Base 78W use TL-UCK36 72W use TL-UCK36 84W use TL-UCK42 24-30D 24-36D 72W use TL-UCK36 72W use TL-UCK36 120W use TL-UCK36 120W use TL-UCK36 24-36D 30-36D 66W use TL-UCK36 66W use TL-UCK36...
  • Page 7 Day to Day Tables – AIS Power Unit Aluminum Base Power Cover #6 x 3/8” Flat Head Sheet Metal Screw 2 Places Power Unit Power Box Plug 2 Places Data Jack 2 Places #9 x 7/8 long Flat head wood screws...
