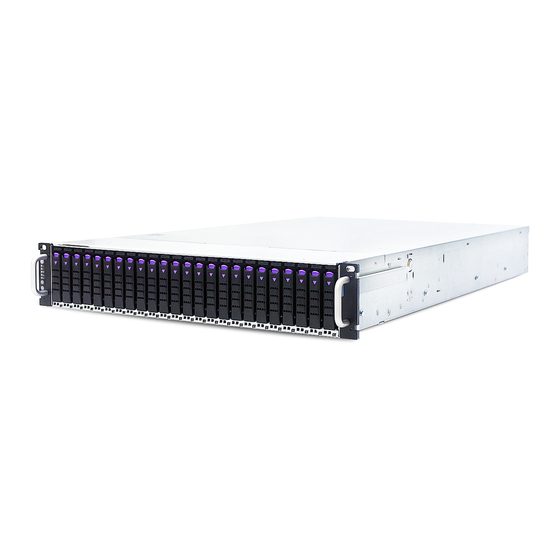

FB201-LX
Server Barebone
User's Manual
UM_FB201-LX_v1.5_110819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FB201-LX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AIC FB201-LX

Summary of Contents for AIC FB201-LX

  • Page 1 FB201-LX Server Barebone User's Manual UM_FB201-LX_v1.5_110819...

  • Page 2: Table Of Contents

    Table of Contents Preface ������������������������������������������������������������������������������������������������� i Safety Instructions ������������������������������������������������������������������������������ ii About This Manual ������������������������������������������������������������������������������ iv Chapter 1� Product Features �������������������������������������������������������������� 1 1�1 Box Contents �����������������������������������������������������������������������������������1 1.2 Specifications �����������������������������������������������������������������������������������2 1�3 Feature ���������������������������������������������������������������������������������������������3 Chapter 2� Hardware Setup ���������������������������������������������������������������� 8 2�1 Central Processing Unit ��������������������������������������������������������������������8 2.1.1 Processor Installation ..................8 2�2 System Memory �����������������������������������������������������������������������������11 2.2.1 Placement ......................
  • Page 3 4�3 Main ����������������������������������������������������������������������������������������������45 4.3.1 Main ........................45 4�4 Advanced ����������������������������������������������������������������������������������������46 4.4.1 Peripheral Configuration ................. 46 4.4.2 Video Configuration ..................46 4.4.3 OEMBoard Function ..................46 4.4.4 SIO AST2500 ....................47 4.4.5 Socket Configuration ..................47 4.4.6 ME Configuration ..................... 53 4.4.7 PCH Configuration ...................
  • Page 4 Document Release History Release Date Version Update Content January User's Manual release to public. 2019 Febuary Safety information update. 2019 March Content update. 2019 April LED Status update. 2019 September MB settings update. 2019 1. Pin definition update. November 2019 2.
  • Page 5 Copyright © 2019 AIC, Inc� All Rights Reserved� This document contains proprietary information about AIC products and is not to be disclosed or used except in accordance with applicable agreements.

  • Page 6: Preface

    Disclaimer AIC shall not be liable for technical or editorial errors or omissions contained herein. The information provided is provided "as is" without warranty of any kind. To the extent permitted by law, neither AIC or its affiliates, subcontractors or suppliers will be liable for incidental, special or consequential damages including downtime cost;...

  • Page 7: Safety Instructions

    Safety Instructions Before getting started, please read the following important cautions: • All cautions and warnings on the equipment or in the manuals should be noted. • Most electronic components are sensitive to electrical static discharge. Therefore, be sure to ground yourself at all times when installing the internal components. •...
  • Page 8 • If the equipment is not used for a long time, disconnect the equipment from mains to avoid being damaged by transient over-voltage. • Never open the equipment. For safety reasons, only qualified service personnel should open the equipment. • If one of the following situations arise, the equipment should be checked by service personnel: 1.

  • Page 9: About This Manual

    This document pellucidly presents a brief overview of the product design, device installation, and firmware settings for FB201-LX. For the latest version of this user's manual, please refer to the AIC website: https://www.aicipc.com/en/productdetail/51011.

  • Page 10: Chapter 1� Product Features

    Chapter 1. Product Features FB201-LX User Manual Chapter 1. Product Features FB201-LX is a high density storage server that includes mother board, chassis, redundant power supplies, HDD backplane, and hotswapple fans. For more information about our product, please visit our website at http://www.aicipc.com/en.

  • Page 11: Specifications

    FB201-LX User Manual Chapter 1. Product Features 1.2 Specifications Riser Card mm : 438 x 800 x 88 Dimensions RC-PE2U09-TY 2 x16 PCIe slots (included) (W x D x H) inches : 17.2 x 31.5 x 3.5 AIC Server Board Lynx...

  • Page 12: 1�3 Feature

    Chapter 1. Product Features 1�3 Feature FB201-LX is a reliable 2U storage server barebone with 24 hotswap drives bays at the front and 2 hotswap drive bays at the rear. This product is designed to accommodate the AIC-patented serverboard, Lynx, which supports two Intel® Xeon® Scalable Processors and 24 DDR4 DIMM to offer greater perfomance, efficiency, and utility for our customers.
  • Page 13 FB201-LX User Manual Chapter 1. Product Features Front Panel 2.5" HDD hotwap drive (U.2 NVMe) Power On/Off Button System Power LED System HDD Activity LED LAN LED System Alert LED System ID LED System ID Button System Reset Button...
  • Page 14 FB201-LX User Manual Chapter 1. Product Features Rear Panel 2.5" HDD tray low profile PCIe RJ45 dedicated to BMC VGA port RJ45 USB 3.0 Type A 1600W 1+1 redundant PSU port Rear Panel without 2�5" Tray RJ45 dedicated to BMC...
  • Page 15 FB201-LX User Manual Chapter 1. Product Features Top view 1600W 1+1 redundant power supply 80+ Platinum 4 x 60 x 56mm hotswap fans...
  • Page 16 FB201-LX User Manual Chapter 1. Product Features System Block Diagram Code Name : MB-DPSK03 LYNX MB BLOCK DIAGRAM LYNX MB BLOCK DIAGRAM Project Name : Lynx Lynx ： Review Project Code : B48-DTIET02G00A000 CPU Footprint(LGA3647-P0 NRW-F) Version : A Platform Environment Control Interface(PECI)

  • Page 17: Chapter 2� Hardware Setup

    Chapter 2� Hardware Setup Chapter 2. Hardware Setup FB201-LX User Manual This section describes a simple instruction guide for installing the hardware components on the serverboard system. Turn off and unplug all system and peripheral devices before proceeding. 2.1 Central Processing Unit The serverboard supports dual Xeon scalable processors and Socket P0 (LGA-3647).
  • Page 18 FB201-LX User Manual Chapter 2. Hardware Setup Processor Socker Assembly: The server board includes two processor sockets (LGA-3647), supports two Intel® Xeon® Processor Scalable Family and has a Thermal Design Power (TDP) of up to 165W on selected models. PHM (Processor Heatsink Module) Component:...
  • Page 19 Chapter 2. Hardware Setup FB201-LX User Manual PHM Screw Installation Order: The PHM sits level with the processor socket assembly. The PHM is NOT installed properly if it does not sit level with the processor socket assembly. Once the PHM is seated over the processor socket assembly, the four heat sink torque screws must be secured in the following order as shown below.

  • Page 20: 2�2 System Memory

    FB201-LX User Manual Chapter 2. Hardware Setup 2�2 System Memory 2�2�1 Placement CPU1 JDIMMJ1 JDIMMJ0 JDIMMK1 JDIMMK0 JDIMML1 JDIMML0 JDIMMC0 JDIMMC1 JDIMMB0 JDIMMB1 JDIMMA0 JDIMMA1 CPU0 JDIMMD1 JDIMMD0 JDIMME1 JDIMME0 JDIMMF1 JDIMMF0...

  • Page 21: Dimm Population

    Chapter 2. Hardware Setup FB201-LX User Manual 2�2�2 DIMM Population DIMM DIMM Numbers Placement Numbers CPU1 CPU0 JDIMMI1 JDIMMC1 JDIMMH0 JDIMMB0 JDIMMH1 JDIMMB1 JDIMMG0 JDIMMA0 JDIMMG1 JDIMMA1 2 DIMMs JDIMM_I0 JDIMM_C0 CPU1 CPU1 CPU0 CPU0 JDIMMD1 JDIMMJ1 JDIMMD0 JDIMMJ0 JDIMME1...
  • Page 22 FB201-LX User Manual Chapter 2. Hardware Setup CPU1 CPU0 JDIMMI1 JDIMMC1 JDIMM_I0 JDIMM_C0 JDIMMH1 JDIMMB1 JDIMMG1 JDIMMA1 JDIMM_H0 JDIMM_B0 10 DIMMs CPU1 CPU1 CPU0 CPU0 JDIMM_G0 JDIMM_A0 JDIMM_K0 JDIMM_E0 JDIMMJ1 JDIMMD1 JDIMMJ0 JDIMMD0 JDIMMK1 JDIMME1 JDIMM_L0 JDIMM_F0 JDIMMF1 JDIMML1 CPU1...
  • Page 23 Chapter 2. Hardware Setup FB201-LX User Manual CPU1 CPU0 JDIMM_I0 JDIMM_C0 JDIMM_I1 JDIMM_C1 JDIMM_H0 JDIMM_B0 JDIMM_H1 JDIMM_B1 20 DIMMs JDIMM_G0 JDIMM_A0 CPU1 CPU1 CPU0 CPU0 JDIMM_G1 JDIMM_A1 JDIMM_J0 JDIMM_D0 JDIMMD1 JDIMMJ1 JDIMM_K0 JDIMM_E0 JDIMME1 JDIMMK1 JDIMM_L1 JDIMM_F1 JDIMM_L0 JDIMM_F0 CPU1...

  • Page 24: Installation

    FB201-LX User Manual Chapter 2. Hardware Setup 2�2�3 Installation Step 1 Unlock the dimm socket by pressing the retaining clips outward. Step 2 Insert the memory module into the slot. Make sure that the dimm notch is accurately positioned. DIMM notch Step 3 Close the retaining clips to complete installation.

  • Page 25: 2�3 Top Cover

    Chapter 2. Hardware Setup FB201-LX User Manual 2�3 Top Cover  Press the release button x 2 on both sides of the system.  Slide the cover toward the rear panel and pull upward to remove. This information is provided for professional technicians only.

  • Page 26: 2�4 Power Supply Unit Module

    FB201-LX User Manual Chapter 2. Hardware Setup 2�4 Power Supply Unit Module  Push the ejector to release the module.  Pull the handle to remove the module out of the chassis.  Push the replaced power supply unit into the chassis. Ensure that the module is hooked into the cage.

  • Page 27: 2�5 Fan Module

    Chapter 2. Hardware Setup FB201-LX User Manual 2�5 Fan Module  Initiate the removal of the fan by unplugging the cables and connectors from the fan.  Extract the fan by carefully dislodging the rubber connectors on the fan from the securing bracket.

  • Page 28: 2�6 Hard Disk Drive

    FB201-LX User Manual Chapter 2. Hardware Setup 2�6 Hard Disk Drive  Press the release button the tray lever to loosen the lever.  Pull the tray lever outward completely.  Pull the tray out of the system.  Insert the hard disk drive into the tray. Ensure that the dimples on the tray match the hard disk drive.

  • Page 29: 2�7 Hdd Backplane

    Chapter 2. Hardware Setup FB201-LX User Manual 2�7 HDD Backplane  Detach the cables and hard disk drives from the backplane module.  Release the module by shifting the hook.  Dislodge the screws on the module.  Lift the module upward to remove.

  • Page 30: 2�8 Bridge Board

    FB201-LX User Manual Chapter 2. Hardware Setup 2�8 Bridge Board  Loosen the captive screws x 2.  Pull the bridge board upward to remove.  Align and insert the new bridge board with the bracket into the appropriate card slot.

  • Page 31: 2�9 Riser Card

    Chapter 2. Hardware Setup FB201-LX User Manual 2�9 Riser Card  Loosen the captive screw.  Remove the riser card from the system.  Align and insert the new riser card with bracket into the appropriate card slot. Ensure that the card is properly aligned.

  • Page 32: 2�10 Tool-Less Slide Blade Installation

    FB201-LX User Manual Chapter 2. Hardware Setup 2�10 Tool-less Slide Blade Installation 1. Pull on the ‘’Front-Release’’to unlock the inner channel from the Slide Assembly. 2. Release the Detent-Lock and push Middle Channel inwards to retract Middle Channel.
  • Page 33 Chapter 2. Hardware Setup FB201-LX User Manual Optional: Remove Metal Spacer for Aluminium Racks Metal Spacer 3. Aligning the Front Bracket with the Mounting Hole. 4. Push in to assembly the Front Bracket onto the Rack.
  • Page 34 FB201-LX User Manual Chapter 2. Hardware Setup 5. Now the bracket is fixed onto the Rack. (Optional M6x10L screws are to secure the rails with posts if needed.) 6. Refer to step 3 and 4 to assemble the End Bracket onto the Rack.
  • Page 35 Chapter 2. Hardware Setup FB201-LX User Manual 7. Assemble the inner channel onto the chassis using thescrews provided. 8. Push the chassis with inner channels into Slide to complete Rack Installation.

  • Page 36: Chapter 3� Hardware Settings

    Chapter 3� Hardware Settings FB201-LX User Manual Chapter 3. Motherboard Settings This section provides illustrations that display the internal jumpers, connectors, and system LED indicators. 3�1 Motherboard 3�1�1 Block Diagram Platform Environment Control Interface(PECI) USB2#9 DIMM #I1 DIMM #C1 USB2#8 USB2.0(X2)

  • Page 37: Content List

    FB201-LX User Manual Chapter 3. Motherboard Settings 3�1�2 Content List Connector and Header Location Connector and Header Location JPWR1 Backplane Power JPWR2 BMC I2C10 Header JBMC_I2C10 Header JPWR3 JPWR4 Power Supply JPWR5 BMC SPI Socket JSPI_BMC Connector Power Supply RJ45 port dedicated to BMC...
  • Page 38 FB201-LX User Manual Chapter 3. Motherboard Settings Jumper Location Jumper Location Power Supply COM BMC Disable Jumper JBMC_DIS Bus Disable Jumper Power Supply Flash Descriptor PSKILL Disable Security override Jumper Jumper PS_ON Enable NTB Configuration JNTB Jumper Jumper SATA Power Header...

  • Page 39: Placement

    FB201-LX User Manual Chapter 3. Motherboard Settings 3�1�3 Placement...
  • Page 40 FB201-LX User Manual Chapter 3. Motherboard Settings 3�1�4 Connector 1a ~ 1d Backplane Power Header (JPWR1, JPWR2, JPWR3, JPWR4) 2 Power Supply Connector (JPWR5) 3 Power Supply Header (JPMBUS_PDB) 4 PMBus Header (JPMBUS) SMB_PMBUS_CLK SMB_PMBUS_DATA PMBUS_ALERT_N +3.3V 5a ~ 5h Fan Connector (J19, J20, J23, J25, J26, J27, J28)
  • Page 41 FB201-LX User Manual Chapter 3. Motherboard Settings 6a ~ 6b Power Supply Connector (JPWR6, JPWR7) 7a PCH Fan Connector (J4) 7b CPU0 Fan Connector (J21) 7c CPU1 Fan Connector (J22) +12V TACH 8a Front I/O USB Header (JUSB_INT1, JUSB_INT2) 8b Front I/O USB Header (JUSB_INT2)
  • Page 42 FB201-LX User Manual Chapter 3. Motherboard Settings 9 Front I/O USB 2.0 Header (JUSB20) 10 OCuLink Connector (JSYS_EXT) BMC GPIO Header (JBMC_GPIO1) BMC GPIO Header (JBMC_GPIO2) GPIOP3 GPIOP2 GPIOI3 GPION7 +3.3V_DUAL...
  • Page 43 FB201-LX User Manual Chapter 3. Motherboard Settings 12 Front Panel Header (JFRNT_SSI) 13 PCH SGPIO Header (JSGPIO) 14 PCH SSGPIO (JSSGPIO) 18 LCM Header (JLCM) SW_PWR_BTN# SW_RST_BTN# TXDC RXDC...
  • Page 44 FB201-LX User Manual Chapter 3. Motherboard Settings COM Port (JCOM1, JCOM4) 21 Buzzer Header (JBUZZER) BMC_BUZZER- 22 IPMB Header (JBMC_I2C1) I2C1SDA I2C1SCL N.C. 23 BMC I2C10 Header (JBMC_I2C10) I2C10SCL I2C10SDA 29 VGA Header (JVGA_INT) DACROA N.C. DACGOA DDC_DATAO DACBOA AHSYNCO N.C.
  • Page 45 FB201-LX User Manual Chapter 3. Motherboard Settings 31 VRM SMB Header (JSMB_VR) SMB_VR_DAT SMB_VR_CLK 32 PCH GPIO Header (JPCH_GPIO) PCH_GPP_C16 PCH_GPP_C17 33 VROC KEY BOX Header (JRAID_KEY) +3.3V_DUAL PCH_GPP_C10 39 SATA DOM Power Header (JDOM_PWR) 41 PCIE Hot-Plug SMB Header (JPCIE_HP)
  • Page 46 FB201-LX User Manual Chapter 3. Motherboard Settings Power Supply Connector (J9, J10) +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V PMBUS_SDA PMBUS_A0 PMBUS_SCL PMBUS_A1 PS_ON +12V_AUX ALERT CR_BUS_N SENSE- 12LS...

  • Page 47: Jumper

    FB201-LX User Manual Chapter 3. Motherboard Settings 3�1�5 Jumper A1 ~ A2 Power Supply COM Bus Disable H BMC Disable Jumper (JBMC_DIS) Jumper (J15, J16) JBMC_DIS Setting J15, J16 Setting Short Disable Short Disable Open Normal Defualt Open Enable Defualt...

  • Page 48: 3�2 System Led Indicator

    FB201-LX User Manual Chapter 3. Motherboard Settings 3�2 System LED Indicator 3�2�1 Front Panel LED Green System is on. Power Status System is off. Yellow (Blinking) Disk activity is detected. HDD Drive Activity No disk activity is detected. Yellow (Blinking)

  • Page 49: Internal Led

    FB201-LX User Manual Chapter 3. Motherboard Settings 3�2�2 Internal LED JDIMMJ0 JDIMMK1 NGFF2 ACT LED JDIMML0 JDIMMC0 JDIMMC1 NGFF1 ACT LED JDIMMB0 JDIMMB1 UID LED UID LED JDIMMA1 RSMRST PG LED RSMRST PG LED SYSTEM PG LED SYSTEM PG LED...

  • Page 50: 3�3 Hdd Backplane

    FB201-LX User Manual Chapter 3. Motherboard Settings 3�3 HDD Backplane 3�3�1 Placement Top View Bottom View...

  • Page 51: Connector And Jumper

    FB201-LX User Manual Chapter 3. Motherboard Settings 3�3�2 Connector and Jumper Connector Function Physical Description Location SFF8639 Connector NVME SSD connector J2000 ~ J2011 Connect with Bridge board pin define AirMax Connector J1 ~ J6 by AIC. 12V power input connector with Bridge...

  • Page 52: Chapter 4. Bios Configuration Settings

    Chapter 4. BIOS Configuration Settings FB201-LX User Manual Chapter 4. BIOS Configuration Settings This chapter demonstrates how to configure the UEFI BIOS settings in your system device. You can enter the BIOS screen during system startup. To enter BIOS configuration settings, •...

  • Page 53: 4�2 Bios Menu

    FB201-LX User Manual Chapter 4. BIOS Configuration Settings 4�2 BIOS Menu Press  and  to select the options of the menu bar. Press Enter to access the option screen. Menu Description Main Displays basic system information and date & time.

  • Page 54: 4�3 Main

    FB201-LX User Manual Chapter 4. BIOS Configuration Settings 4�3 Main Main Option Key: 4�3�1 Main Main System time Configures the current time. System date Configures the current date.

  • Page 55: 4�4 Advanced

    FB201-LX User Manual Chapter 4. BIOS Configuration Settings 4�4 Advanced Advanced Option Key: 4.4.1 Peripheral Configuration Peripheral Configuration PCIe SR-IOV [Enable] Disable PCIe ARI Enable [Disable] ARI Forward Enable [Disable] Spread Spectrum Enable [Disable] 4.4.2 Video Configuration Video Configuration Display Mode...

  • Page 56: Sio Ast2500

    FB201-LX User Manual Chapter 4. BIOS Configuration Settings 4�4�4 SIO AST2500 SIO AST2500 Serial Port A Auto [Enable] Disable Base I/O Address [3F8] Interrupt IRQ3 [IRQ4] Serial Port B Auto [Enable] Disable Base I/O Address [2F8] Interrupt [IRQ3] IRQ4 Serial Port D...
  • Page 57 FB201-LX User Manual Chapter 4. BIOS Configuration Settings Volatile Memory [Auto] Mode AppDirect cache Auto Enable [Disable] eADR Support Auto Enable [Disable] 1LM Memory 256B Target, 64B Target, 64B Interleave [Auto] 256B Channel Channel Granularity Memory Map IMC Interleaving [Auto]...
  • Page 58 FB201-LX User Manual Chapter 4. BIOS Configuration Settings App Direct [Enable] Disable Memory Hole SWSMI [ASL] implementation SMBus Max Min= 0, Max= 4294967295, [350] Access Time NGNVM DIMM NGN Configuration Secure Erase SMBus Release Min= 0, Max= 4294967295, [150] Unit...
  • Page 59 FB201-LX User Manual Chapter 4. BIOS Configuration Settings PCI 64-Bit Resource [Enable] Disable Allocation PCIe Train by BIOS [Yes] PCIe Hot Plug Auto Manual Enable [Disable] PCIe ACPI Hot Plug Enable [Disable] Per-Port PCI-E Completion Timeout (Global) [No] Per-Port Disable...
  • Page 60 FB201-LX User Manual Chapter 4. BIOS Configuration Settings Intel® VMD 32-bit non-prefetchable for Volume [64-bit non-prefetchable] Intel® VMD MemBar2 IIO Configuration Management technology attribute Device on 64-bit prefetchable Socket 0 WFR Uncore GV Auto Enable [Disable] Rate Reduction Uncore Freq...
  • Page 61 FB201-LX User Manual Chapter 4. BIOS Configuration Settings Non-Snoop Latency Latency Min=0, Max=7, [0] Multiplier Tolerence Requirement Non-Snoop Min=0x0, Max=0x3ff Latency Value IIO0_PKGC_ Enable CLK_GATE_ [Disable] DISABLE IIO1_PKGC_ Enable CLK_GATE_ [Disable] DISABLE IIO2_PKGC_ Enable CLK_GATE_ [Disable] DISABLE UPI01_PKGC_ Enable CLK_GATE_...

  • Page 62: Me Configuration

    FB201-LX User Manual Chapter 4. BIOS Configuration Settings 4.4.6 ME Configuration ME Configuration Altitude Min=0x0, Max=0xffff, [0x8000] Server ME General ME Configuration Configuration MCTP Bus Owner Min=0x0, Max=0xffff, [0x0] ME Initialization Min=0, Max=12, [2] Complete Timeout Enable HSIO [Enable] Disable...

  • Page 63: Pch Configuration

    FB201-LX User Manual Chapter 4. BIOS Configuration Settings 4.4.7 PCH Configuration PCH Configuration PCH Devices PCH state after G3 [S5] Last State SATA Controller [Enable] Disable Configure SATA as [AHCI] RAID Support Aggressive Link Power [Enable] Disable Management Port 0~7...

  • Page 64: H2O Ipmi Configuration

    FB201-LX User Manual Chapter 4. BIOS Configuration Settings 4.4.8 H2O IPMI Configuration H2O IPMI Configuration IPMI Support [Enable] Disable BMC Warmup Time Min=0, Max=240, [90] ACPI SPMI Table [Enable] Disable Boot Option Support [Enable] Disable Set BIOS version to [Enable]...

  • Page 65: H2O Event Log Config Manager

    FB201-LX User Manual Chapter 4. BIOS Configuration Settings 4.4.11 H2O Event Log Config Manager H2O Event Log Config Manager BIOS Log Event To BIOS Event Log BIOS Event [BMC SEL] Memory Disable Configuration Log Viewer Event Log [Stop Overwrite Clear All...

  • Page 66: 4�5 Security

    FB201-LX User Manual Chapter 4. BIOS Configuration Settings 4�5 Security Security Option Key: 4�5�1 Security Security Current TPM Device Not Detected TPM 1.2 [TPM 2.0] TPM Active PCR Hash [SHA1, SHA256] Algorithm TPM Hardware Supported Hash [SHA1, SHA256] Algorithm TrEE Protocol Version 1.0 [1.1]...

  • Page 67: 4�6 Power

    FB201-LX User Manual Chapter 4. BIOS Configuration Settings 4�6 Power Power Option Key: 4�6�1 Power Power Wake on PME Enable [Disable]...

  • Page 68: 4�7 Boot

    FB201-LX User Manual Chapter 4. BIOS Configuration Settings 4�7 Boot Boot Option Key: 4�7�1 Boot Boot Boot Type [Dual Boot Type] Legacy Boot Type UEFI Boot Type Quick Boot [Enable] Disable Quiet Boot Enable [Disable] Network Stack [Enable] Disable [Disable]...

  • Page 69: 4�8 Exit

    FB201-LX User Manual Chapter 4. BIOS Configuration Settings 4�8 Exit Exit Option Key: 4�8�1 Exit Save and Exit Exit Saving Changes Exit system setup and save your changes. Save Change Without Exit Save your changes without exiting the system. Exit Discarding Changes Discard your changes when existing the system.

  • Page 70: Chapter 5. Bmc Configuration Settings

    Chapter 5. BMC Configuration Settings FB201-LX User Manual Chapter 5. BMC Configuration Settings 5�1 Login NOTE This feature works with the JAVA 6 run time installed console environment. The IP address below is an example using the default IP setting. The IP address is configurable.

  • Page 71: 5�2 Web Gui

    FB201-LX User Manual Chapter 5. BMC Configuration Settings 5�2 Web GUI 5�2�1 Menu Bar Click to select the options of the menu bar. Menu Description The Dashboard page gives the overall information about the status of a Dashboard device. Sensor The Sensor Readings page displays all the sensor related information.

  • Page 72: User Information And Quick Button

    FB201-LX User Manual Chapter 5. BMC Configuration Settings 5�2�2 User Information and Quick Button The user information and quick access buttons are located at the top right corner. It displays the logged-in user, his/her privilege and the four quick buttons allowing you to perform different functions.
  • Page 73 FB201-LX User Manual Chapter 5. BMC Configuration Settings 5�2�3 Dashboard The Dashboord page displays device, system, and network information. Click Dashboard on the menu bar to view the overall information of the server. 5�2�4 Sensor The Sensor page displays the status and records on related sensors.

  • Page 74: Fru Information

    FB201-LX User Manual Chapter 5. BMC Configuration Settings 5�2�5 FRU Information The FRU Information page displays Basic Information, Chassis Information, Board Information and Product Information of the FRU device. Click FRU Information on the menu bar to view the details of the selected device.

  • Page 75: Settings

    FB201-LX User Manual Chapter 5. BMC Configuration Settings 5�2�7 Settings The Settings page displays the configuration settings for KVM Mouse Setting, Media Redirection Settings, Network Settings, Platform Event Filter, Services, SMTP Settings, SSL Settings, System Firewall, User Management, and Video Recording.

  • Page 76: Remote Control

    FB201-LX User Manual Chapter 5. BMC Configuration Settings 5�2�8 Remote Control The Remote Control page displays the configuration for power control and remote KVM. Launch KVM...
  • Page 77 FB201-LX User Manual Chapter 5. BMC Configuration Settings Procedure To Start KVM Step 1 Click Start KVM to start the H5Viewer video redirection. Step 2 Click Browse to select CD Image. Step 3 Click Start Media to redirect the selected CD image file to the Host.
  • Page 78 FB201-LX User Manual Chapter 5. BMC Configuration Settings Remote KVM Menu and Option Key Button Description Start KVM Starts the H5Viewer video redirection. Stop KVM Stops the H5Viewer video redirection. Pause Video This option is used for pausing Console Redirection.
  • Page 79 FB201-LX User Manual Chapter 5. BMC Configuration Settings This menu item can be used to act as the Right <Ctrl> right-side <CTRL> key when in Console Redirection. This menu item can be used to act as Right <Alt> the right-side <ALT> key when in Console Redirection.

  • Page 80: Power Control

    FB201-LX User Manual Chapter 5. BMC Configuration Settings 5�2�9 Power Control The Power Control page allows you to view and control the power of your server. To open Power Control, click Power Control from the menu bar. The various options of Power Control are given below.

  • Page 81: Maintenance

    FB201-LX User Manual Chapter 5. BMC Configuration Settings 5�2�10 Maintenance This Maintenance page displays the configuration settings for Backup Configuration, Firmware Image Location, Firmware Information, Fimware Update, Preserve Configuration, Restore Configuration, Restore Configuration, and Restore Factory Defaults. Maintenance Procedure 1. Click Check All to backup the selected configuration items. The...

  • Page 82: Sign Out

    FB201-LX User Manual Chapter 5. BMC Configuration Settings 5�2�11 Sign out To log out of the BMC: Method 1: Click Sign out from the menu bar. The Logout dialog box will pop out. Method 2: Click the root quick button on the top right corner of the screen.

  • Page 83: Chapter 6� Technical Support

    Chapter 6� Technical Support Taiwain, Global Headquarters South California, United States Address: No� 152, Section 4, Address: 21808 Garcia Lane Linghang N� Rd, Dayuan District, City of Industry, CA 91789, Taoyuan City 337, Taiwan United States Tel: +886-3-433-9188 Toll free: +7-4997019998 Fax: +886-3-287-1818 Tel: +1-909-895-8989 Fax: +1-909-895-8989#157...
