Section 4: Configuration

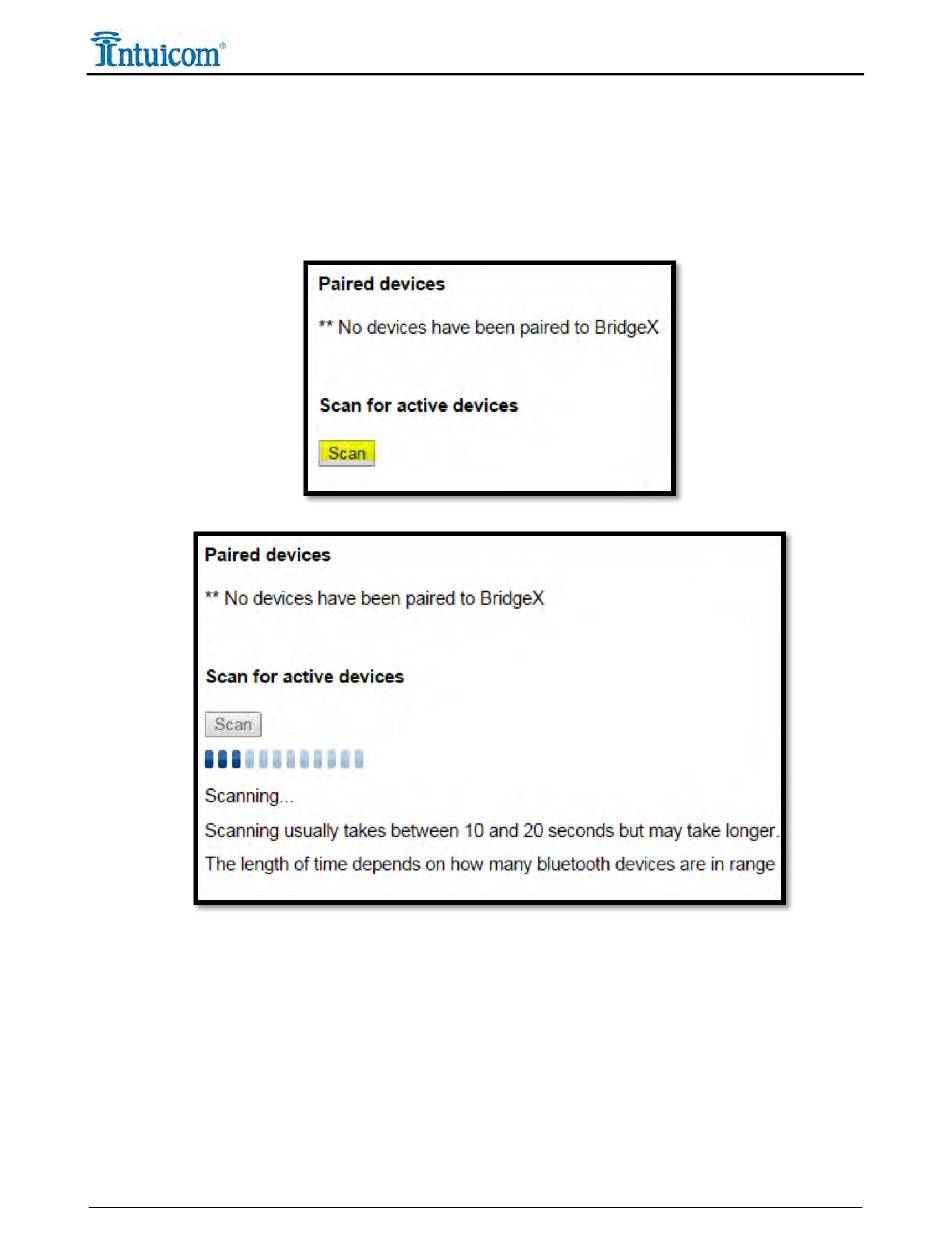

Now the RTK Bridge-X is ready to pair to the RTK Bridge-X Bluetooth Receiver. Press the
Pairing button and the RTK Bridge-X will start to search for the RTK Bridge-X Bluetooth
Receiver. This process can take 10-20 seconds and may have to be run more than once if
there is interference. Disabling the WiFi may help for the pairing process to be faster; but
will require that the unit be configured via direct Ethernet connection or via Cellular
connection.
Once the RTK Bridge-X Bluetooth Receiver has been discovered, press the Pair with device
button. The PAIR LED on the RTK Bridge-X Bluetooth Receiver should stop blinking and
be constantly on indicating a successful pairing. The DATA LED should start blinking as
the RTK Bridge-X begins sending data to the RTK Bridge-X Bluetooth Receiver.
