INSTRUCTION SHEET FOR MOUNTING IN THE RADIO HOUSING
Preparing the John Deere Radio Housing for mounting the Intuicom RTK Bridge
Receiver.

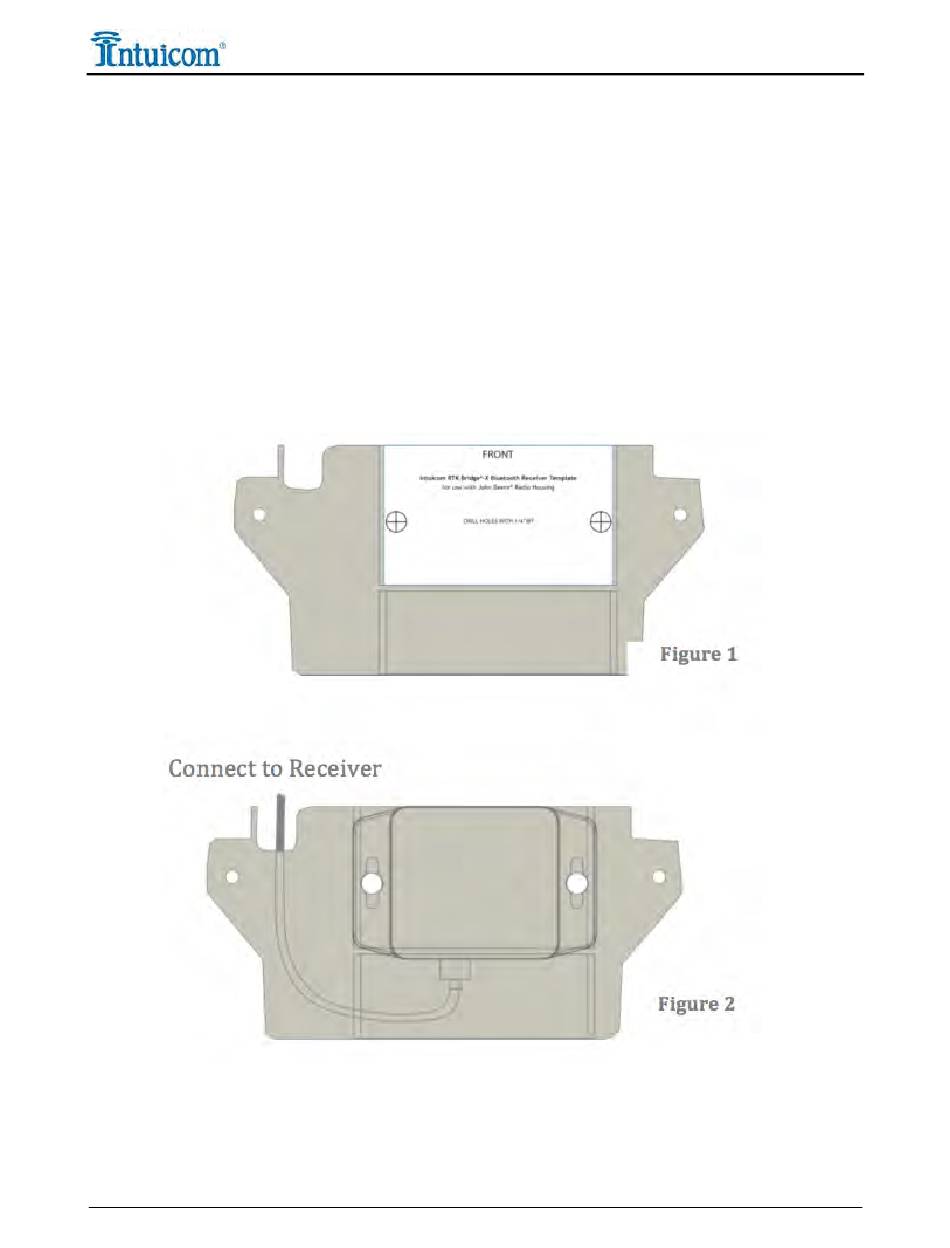

STEP 1: Place the provided template on the Radio Housing as shown below [Figure 1].
Secure it with tape to prevent it from moving during the drilling process.
STEP 2: Using a drill with a ¼" bit, drill the two holes where indicated.
STEP 3: Remove the template. Insert the Intuicom RTK Bridge
shown [Figure 2], securing it to the Radio Housing with the hardware provided.
