3 Installation Instructions

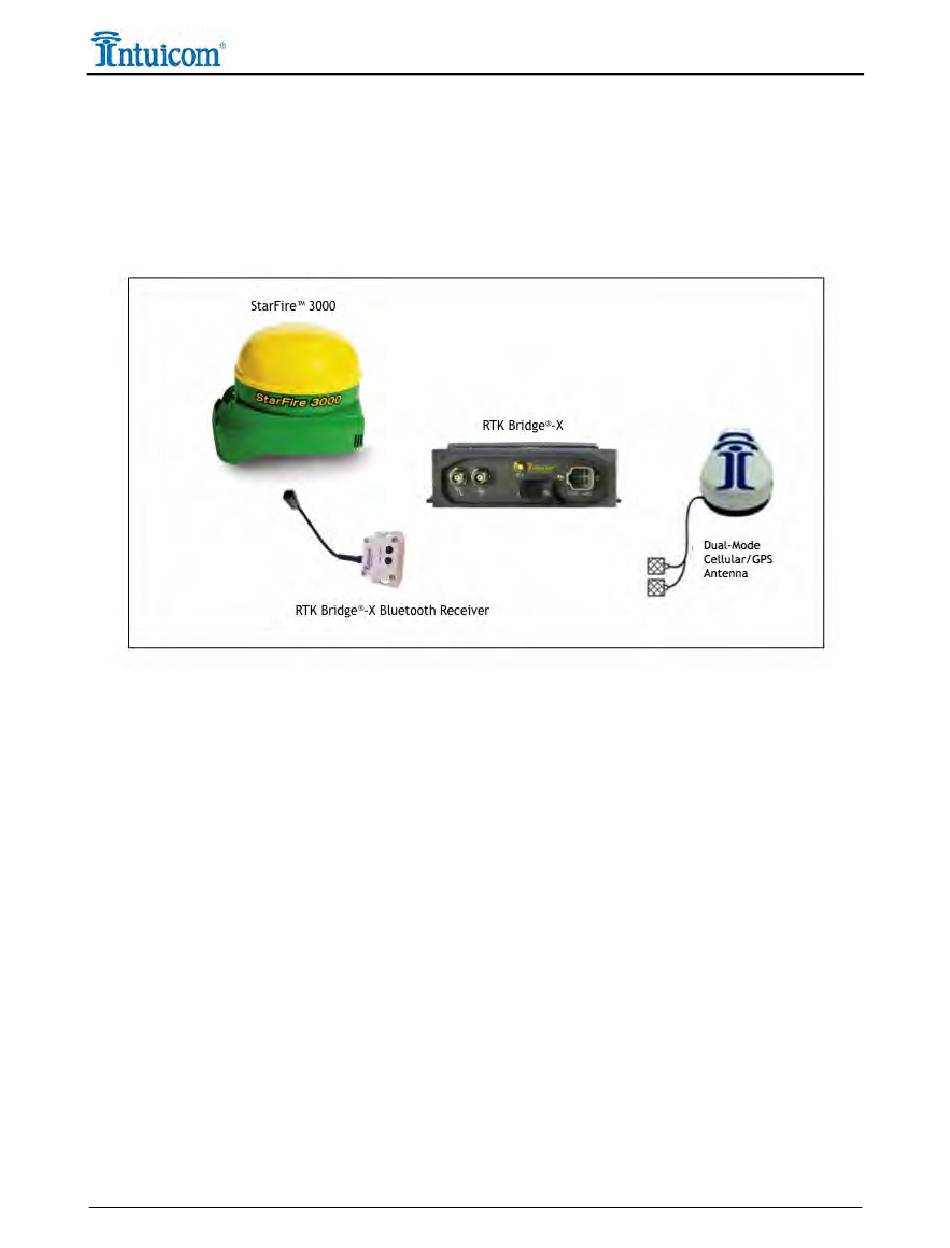

Below is a diagram for the recommended installation of the Intuicom RTK Bridge

utilizing the equipment noted above.

The RTK Bridge-X Bluetooth Receiver is designed to be plugged directly into the GNSS

receiver and has both data and power connections. The unit should be mounted so that it is

secure and not overly straining the cable and connectors.

The RTK Bridge-X should be installed in the cab of the tractor where the diagnostic LEDs

can be monitored. When using the RTK Bridge-X Bluetooth Receiver, the RTK Bridge-X

will need to be powered via the included DC power leads since it is no longer being powered

through the StarFire™ 3000. Connect all antennas to the RTK Bridge-X and connect the

power cable. Plug the RTK Bridge-X Bluetooth Receiver into the GNSS receiver.

Connecting the RTK Bridge

• Open the base of the StarFire™ 3000 and unplug the radio connector if included.

Plug the connector from the RTK Bridge

connector. Reassemble the StarFire™ 3000 making sure the cable is not crimped and

waterproofing the housing where the cable enters. Diagram 2, below shows the

inside of the StarFire™ receiver and where the RTK Bridge

cable will plug in.

Version 1.4

-X to the StarFire™ 3000

-X Bluetooth Receiver into the StarFire™

Section 3: Installation Instructions

-X

-X Bluetooth Receiver
