Intuicom RTK Bridge-X Installation Manual page 17

If the Distance to Base is 0.00, press the Reset "Radio Data" button in the bottom left corner
(Diagram 9). The % Received should go to 0 and then climb to 100. The Distance to Base
should correctly display. If not, repeat this step until this item is not 0.

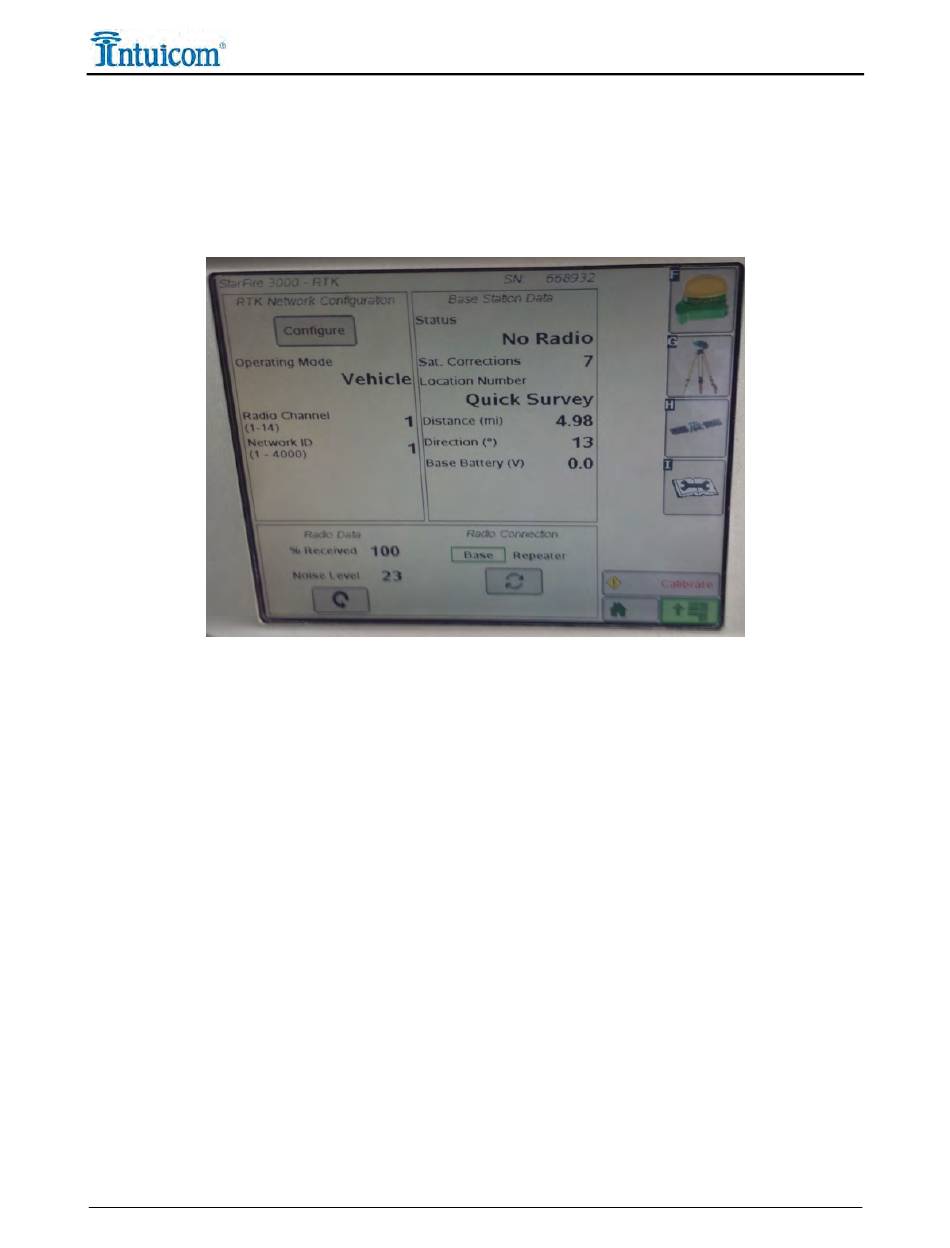

3. When the Distance displays correctly, it should look like Diagram 10.
4. The StarFire™ 3000 should now get an RTK Fix. To verify, select the StarFire 3000
icon in the upper right corner. The page should look like Diagram 6. It may take a
minute or two for the receiver to get an RTK Fix.
5. If the receiver does not get an RTK Fix and is in SF2 Fallback Mode, select the
"Setup" tab and uncheck the "SF2 when lost" box. This should force the receiver out
of SF2 fallback and into RTK quicker. Once the receiver has an RTK Fix, this box
can be rechecked to allow for SF2 Fallback Mode. Diagram 11.
6. If the receiver is still not maintaining an RTK Fix, the "Hours On After Shutdown"
option can be set to 0. Then the receiver should be powered off and then restarted.
This should force the receiver to do a fresh sky view and should get an RTK Fix
faster. Diagram 11.
Version 1.4
Section 6: Programming and Troubleshooting
Diagram 10
17 .
