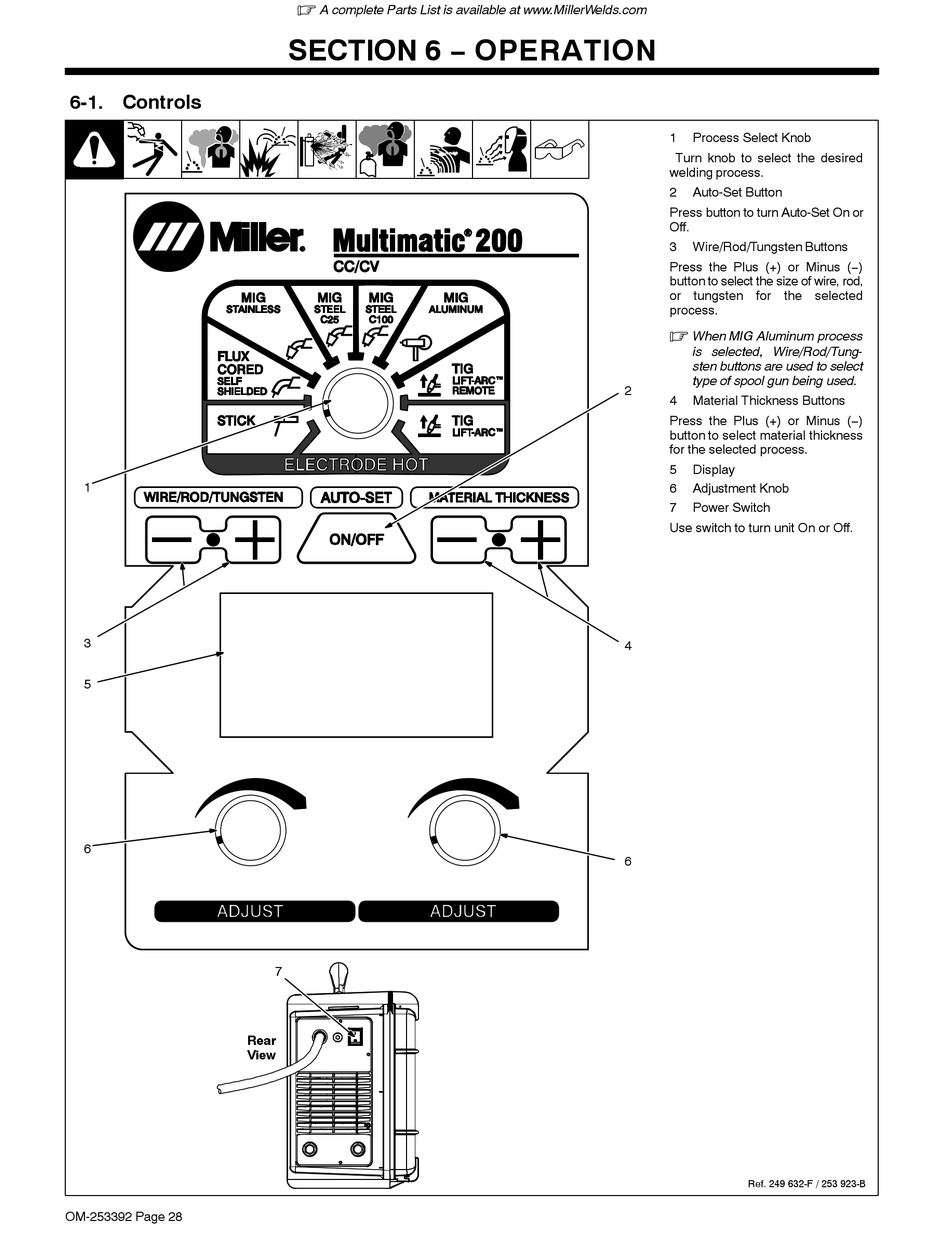

6-1. Controls

1
3
5
6
OM-253392 Page 28
.
A complete Parts List is available at www.MillerWelds.com
SECTION 6 − OPERATION
7
Rear
View
1 Process Select Knob
Turn knob to select the desired
welding process.
2 Auto-Set Button
Press button to turn Auto-Set On or
Off.
3 Wire/Rod/Tungsten Buttons
Press the Plus (+) or Minus (−)
button to select the size of wire, rod,
or tungsten for the selected
process.
.
When MIG Aluminum process
is selected, Wire/Rod/Tung-
sten buttons are used to select
type of spool gun being used.
2
4 Material Thickness Buttons
Press the Plus (+) or Minus (−)
button to select material thickness
for the selected process.
5 Display
6 Adjustment Knob
7 Power Switch
Use switch to turn unit On or Off.
4
6
