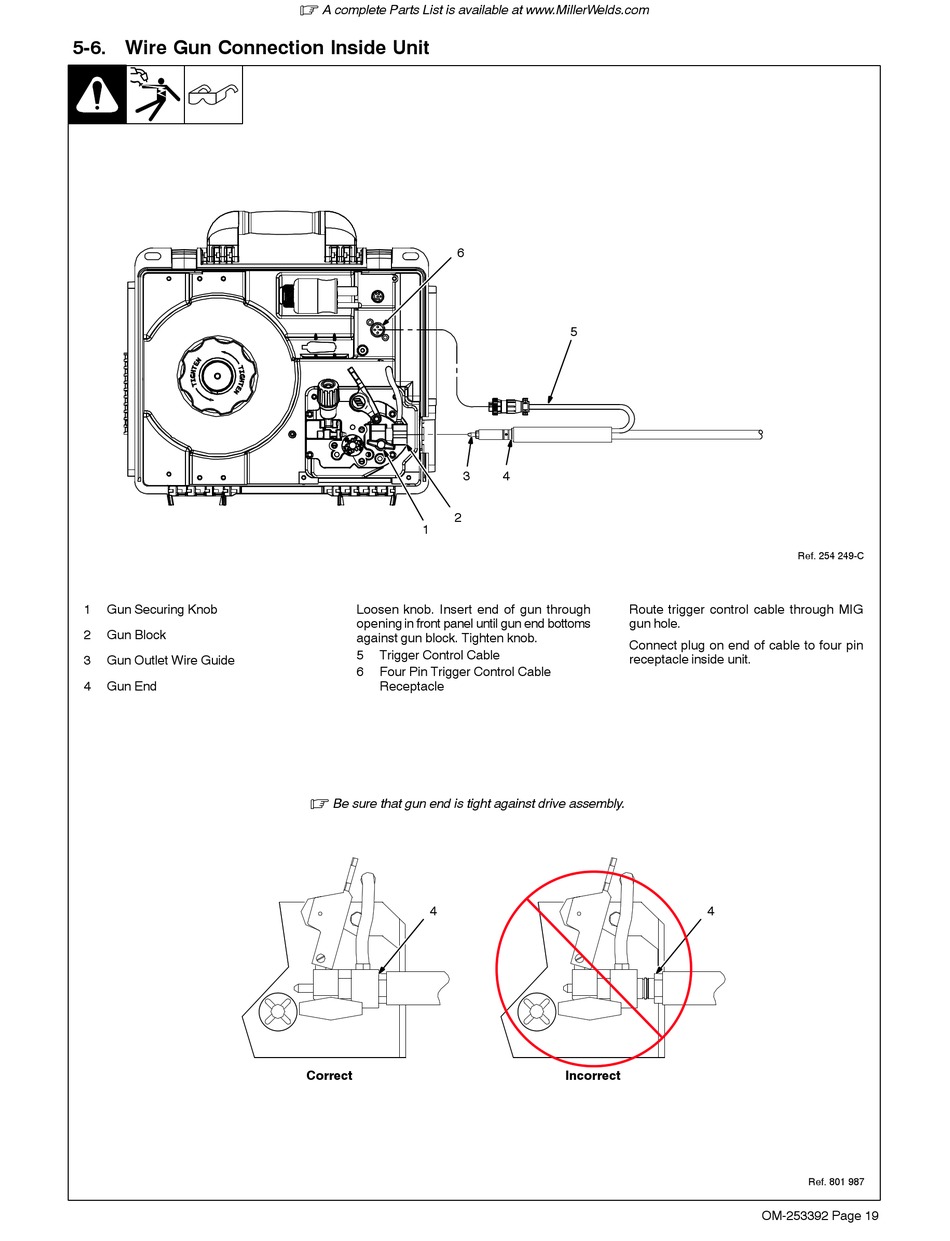

5-6. Wire Gun Connection Inside Unit

1 Gun Securing Knob
2 Gun Block
3 Gun Outlet Wire Guide
4 Gun End
.
A complete Parts List is available at www.MillerWelds.com
6
3
2
1
Loosen knob. Insert end of gun through
opening in front panel until gun end bottoms
against gun block. Tighten knob.
5 Trigger Control Cable
6 Four Pin Trigger Control Cable
Receptacle
.
Be sure that gun end is tight against drive assembly.
4
Correct
5
4
Route trigger control cable through MIG
gun hole.
Connect plug on end of cable to four pin
receptacle inside unit.
Incorrect
Ref. 254 249-C
4
Ref. 801 987
