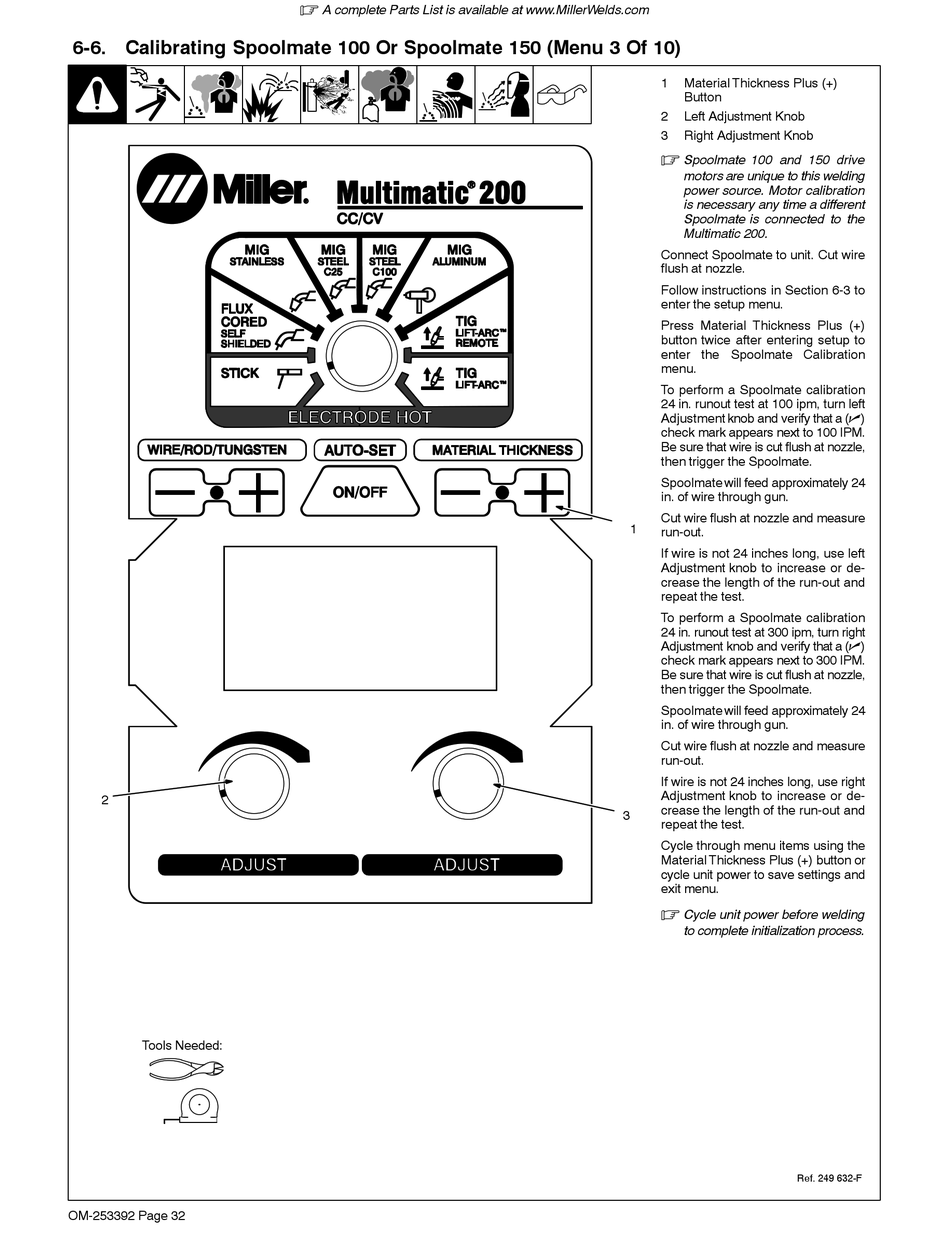

6-6. Calibrating Spoolmate 100 Or Spoolmate 150 (Menu 3 Of 10)

2
Tools Needed:
OM-253392 Page 32
.
A complete Parts List is available at www.MillerWelds.com
1 Material Thickness Plus (+)
Button
2 Left Adjustment Knob
3 Right Adjustment Knob
.
Spoolmate 100 and 150 drive
motors are unique to this welding
power source. Motor calibration
is necessary any time a different
Spoolmate is connected to the
Multimatic 200.
Connect Spoolmate to unit. Cut wire
flush at nozzle.
Follow instructions in Section 6-3 to
enter the setup menu.
Press Material Thickness Plus (+)
button twice after entering setup to
enter the Spoolmate Calibration
menu.
To perform a Spoolmate calibration
24 in. runout test at 100 ipm, turn left
Adjustment knob and verify that a (n)
check mark appears next to 100 IPM.
Be sure that wire is cut flush at nozzle,
then trigger the Spoolmate.
Spoolmate will feed approximately 24
in. of wire through gun.
Cut wire flush at nozzle and measure
1
run-out.
If wire is not 24 inches long, use left
Adjustment knob to increase or de-
crease the length of the run-out and
repeat the test.
To perform a Spoolmate calibration
24 in. runout test at 300 ipm, turn right
Adjustment knob and verify that a (n)
check mark appears next to 300 IPM.
Be sure that wire is cut flush at nozzle,
then trigger the Spoolmate.
Spoolmate will feed approximately 24
in. of wire through gun.
Cut wire flush at nozzle and measure
run-out.
If wire is not 24 inches long, use right
Adjustment knob to increase or de-
crease the length of the run-out and
3
repeat the test.
Cycle through menu items using the
Material Thickness Plus (+) button or
cycle unit power to save settings and
exit menu.
.
Cycle unit power before welding
to complete initialization process.
Ref. 249 632-F
