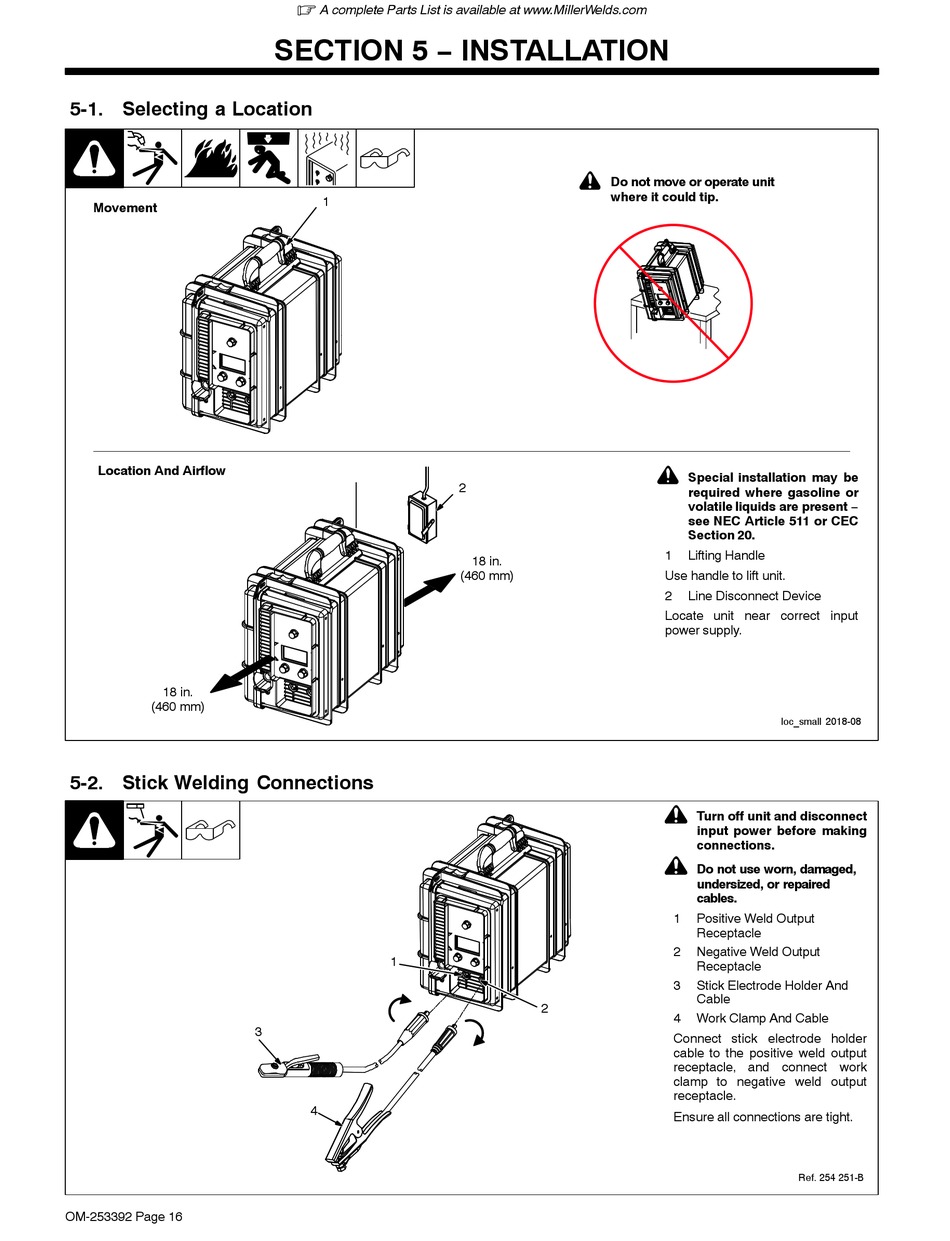

Section 5 − Installation; Selecting A Location; Stick Welding Connections - Miller Multimatic 200 Owner's Manual

5-1. Selecting a Location

Movement
Location And Airflow
18 in.
(460 mm)

5-2. Stick Welding Connections

OM-253392 Page 16
.
A complete Parts List is available at www.MillerWelds.com
SECTION 5 − INSTALLATION
1
1
3
4
!
Do not move or operate unit
where it could tip.
2
18 in.
(460 mm)
2
!
Special installation may be
required where gasoline or
volatile liquids are present −
see NEC Article 511 or CEC
Section 20.
1 Lifting Handle
Use handle to lift unit.
2 Line Disconnect Device
Locate unit near correct input
power supply.
loc_small 2018-08
!
Turn off unit and disconnect
input power before making
connections.
!
Do not use worn, damaged,
undersized, or repaired
cables.
1 Positive Weld Output
Receptacle
2 Negative Weld Output
Receptacle
3 Stick Electrode Holder And
Cable
4 Work Clamp And Cable
Connect stick electrode holder
cable to the positive weld output
receptacle, and connect work
clamp to negative weld output
receptacle.
Ensure all connections are tight.
Ref. 254 251-B
