5-12. Connecting 120 Volt Input Power

.
A complete Parts List is available at www.MillerWelds.com
!
Installation must meet
National and Local Codes − have
only qualified persons make this
installation.
!
Special installation may
required where gasoline or volatile
liquids are present − see NEC
Article 511 or CEC Section 20.
NOTICE − The Auto-Line circuitry in this
unit automatically links the power source
to the primary voltage being applied, either
120 or 230 VAC.
See rating label on unit and check input
voltage available at site.
For 120 volts AC input power, a 15 or 20
ampere individual branch circuit protected
by time-delay fuses or circuit breaker is
required.

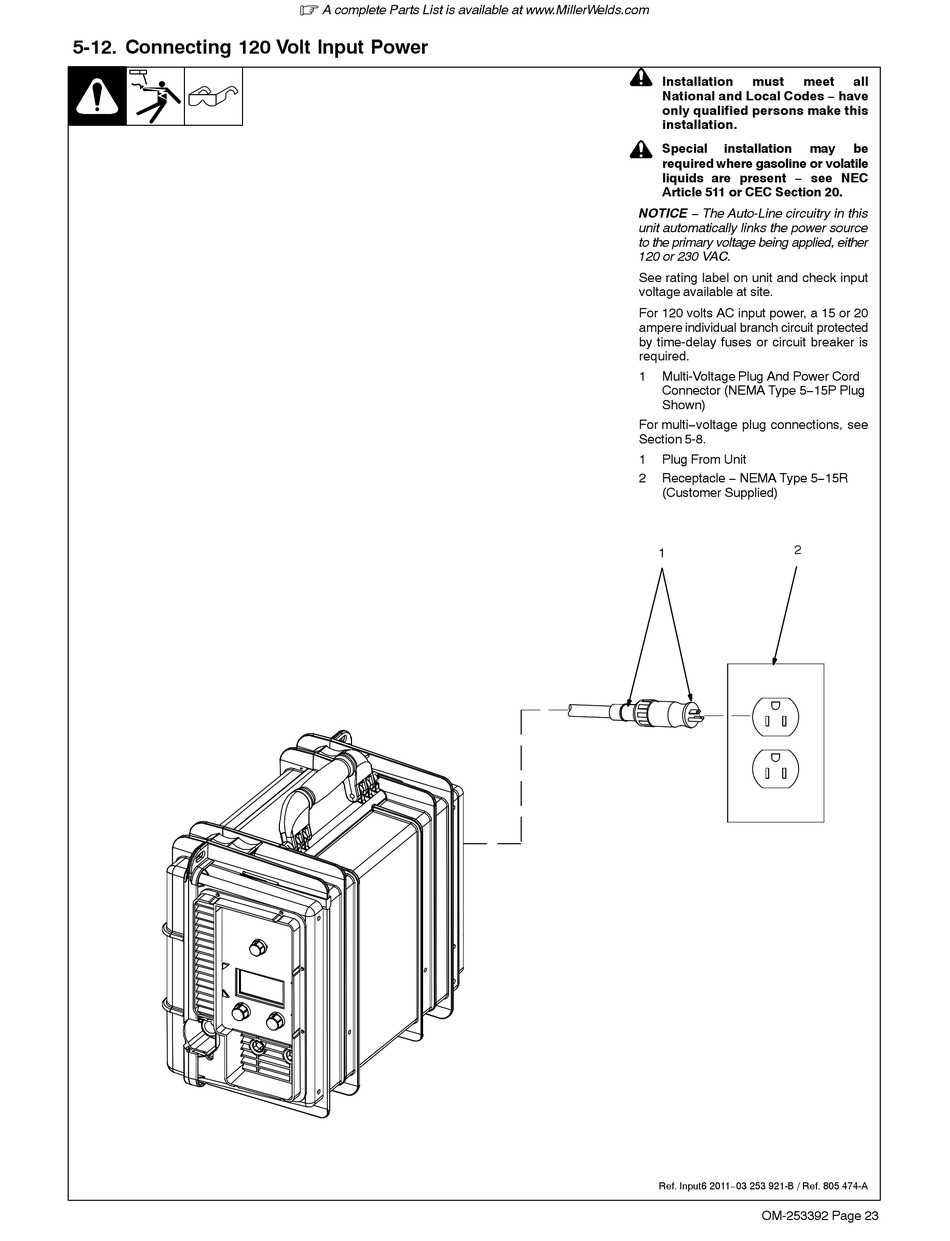

1 Multi-Voltage Plug And Power Cord
Connector (NEMA Type 5−15P Plug
Shown)
For multi−voltage plug connections, see
Section 5-8.
1 Plug From Unit
2 Receptacle − NEMA Type 5−15R
(Customer Supplied)
2
1
