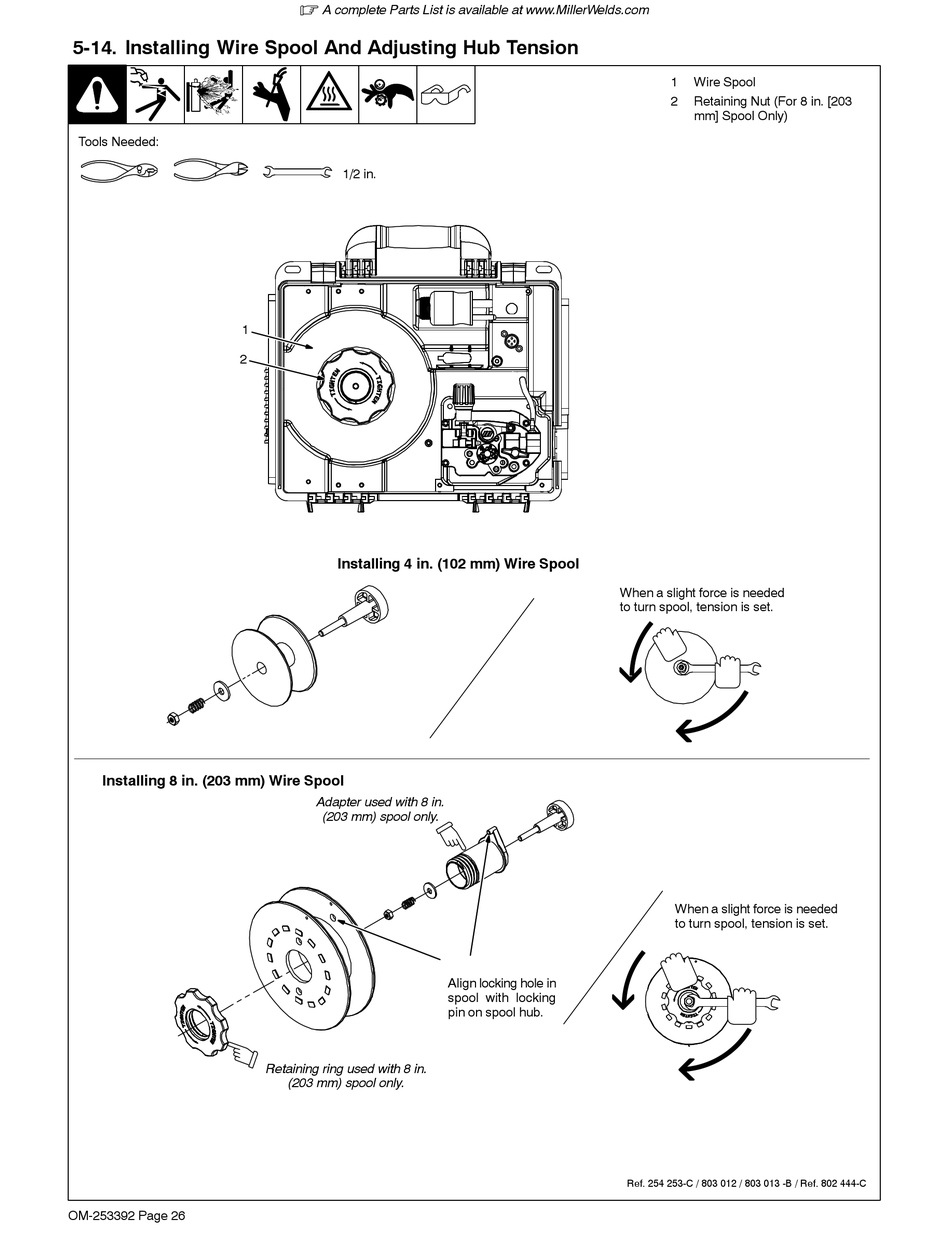

5-14. Installing Wire Spool And Adjusting Hub Tension

Tools Needed:
1
2
Installing 8 in. (203 mm) Wire Spool
OM-253392 Page 26
.
A complete Parts List is available at www.MillerWelds.com
1/2 in.
Installing 4 in. (102 mm) Wire Spool
Adapter used with 8 in.
(203 mm) spool only.
Retaining ring used with 8 in.
(203 mm) spool only.
When a slight force is needed
to turn spool, tension is set.
Align locking hole in
spool with locking
pin on spool hub.
1 Wire Spool
2 Retaining Nut (For 8 in. [203
mm] Spool Only)
When a slight force is needed
to turn spool, tension is set.
Ref. 254 253-C / 803 012 / 803 013 -B / Ref. 802 444-C
