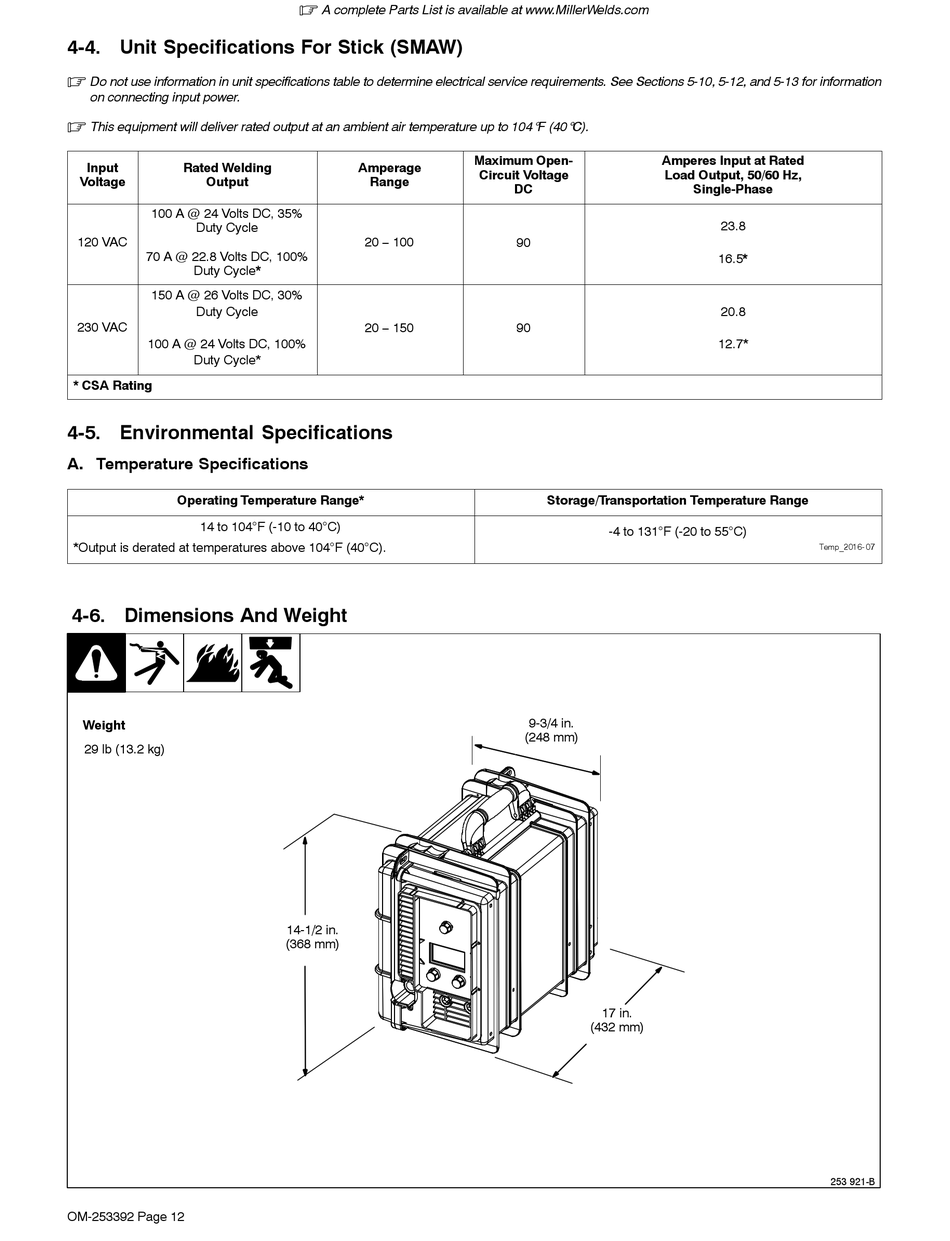

4-4. Unit Specifications For Stick (SMAW)

.
Do not use information in unit specifications table to determine electrical service requirements. See Sections 5-10, 5-12, and 5-13 for information
on connecting input power.
.
This equipment will deliver rated output at an ambient air temperature up to 1045F (405C).
Input Rated Welding
Voltage Output
100 A @ 24 Volts DC, 35%
Duty Cycle
120 VAC
70 A @ 22.8 Volts DC, 100%
Duty Cycle*
150 A @ 26 Volts DC, 30%
Duty Cycle
230 VAC
100 A @ 24 Volts DC, 100%
Duty Cycle*
* CSA Rating

4-5. Environmental Specifications

A. Temperature Specifications
Operating Temperature Range*
14 to 104F (-10 to 40C)
*Output is derated at temperatures above 104F (40C).

4-6. Dimensions And Weight

Weight
29 lb (13.2 kg)
OM-253392 Page 12
.
A complete Parts List is available at www.MillerWelds.com
Amperage
Range
20 − 100
20 − 150
14-1/2 in.
(368 mm)
Maximum Open-
Circuit Voltage
DC
90
90
Storage/Transportation Temperature Range
-4 to 131F (-20 to 55C)
9-3/4 in.
(248 mm)
17 in.
(432 mm)
Amperes Input at Rated
Load Output, 50/60 Hz,
Single-Phase
23.8
16.5*
20.8
12.7*
Temp_2016- 07
253 921-B
