Vertex M
24-Point Continuous Monitor
TM
Date fields
Defaults to
current date. The
default range is
current date and
the previous two
weeks.
Maximum Records
Use to limit the number of
records to display. Vertex will
display up to 10,000 records.
The default setting is 500.
Use the up and down arrow
buttons to increment the
value by 100.
Advanced Filter Options-Events
Use to filter on specific alarms, faults or other events.
Section 4 - Operation
Advance Filter Options
Use the Advance Filter Option
buttons located to refine the
sort.

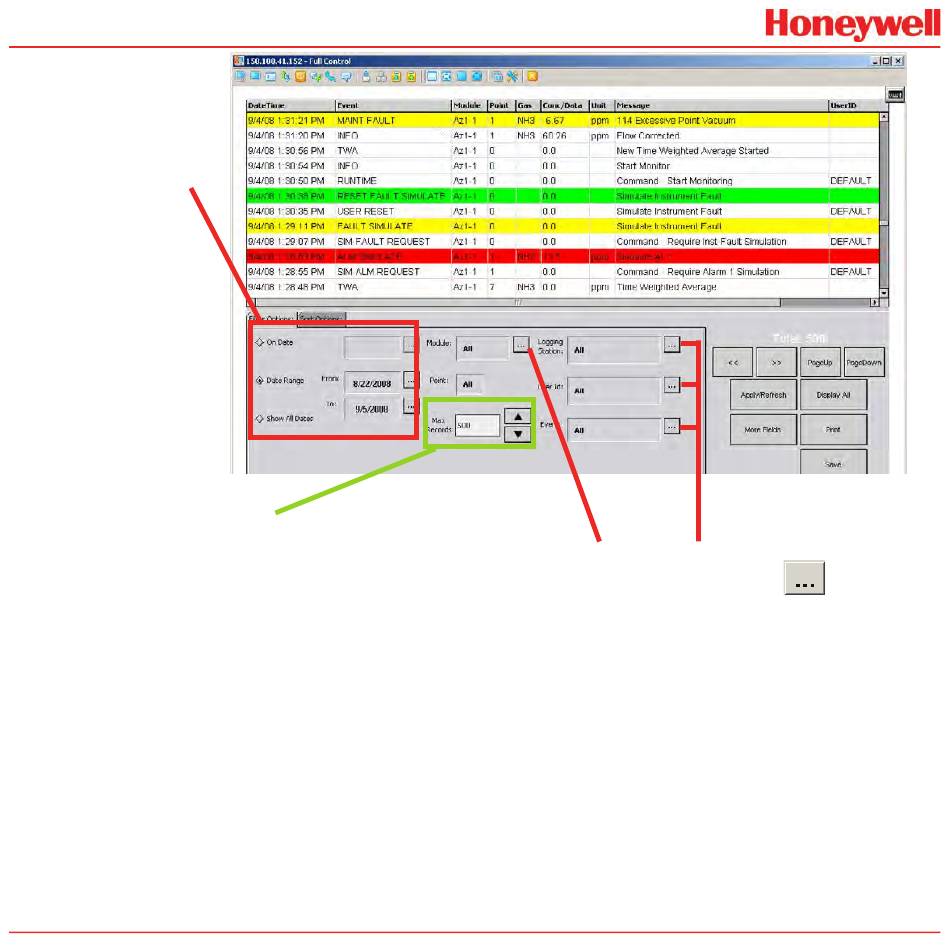

Figure 4-8. Event History
4-16
