3.4 Features and benefits

The Hydro Multi-B is developed with focus on user-friendliness
and ease of operation.
The pumps are controlled via the CU 323 controller which
features a simple interface that makes it easy to control and
monitor the system.
When the system has been set up, the controller takes care of the
daily operation.

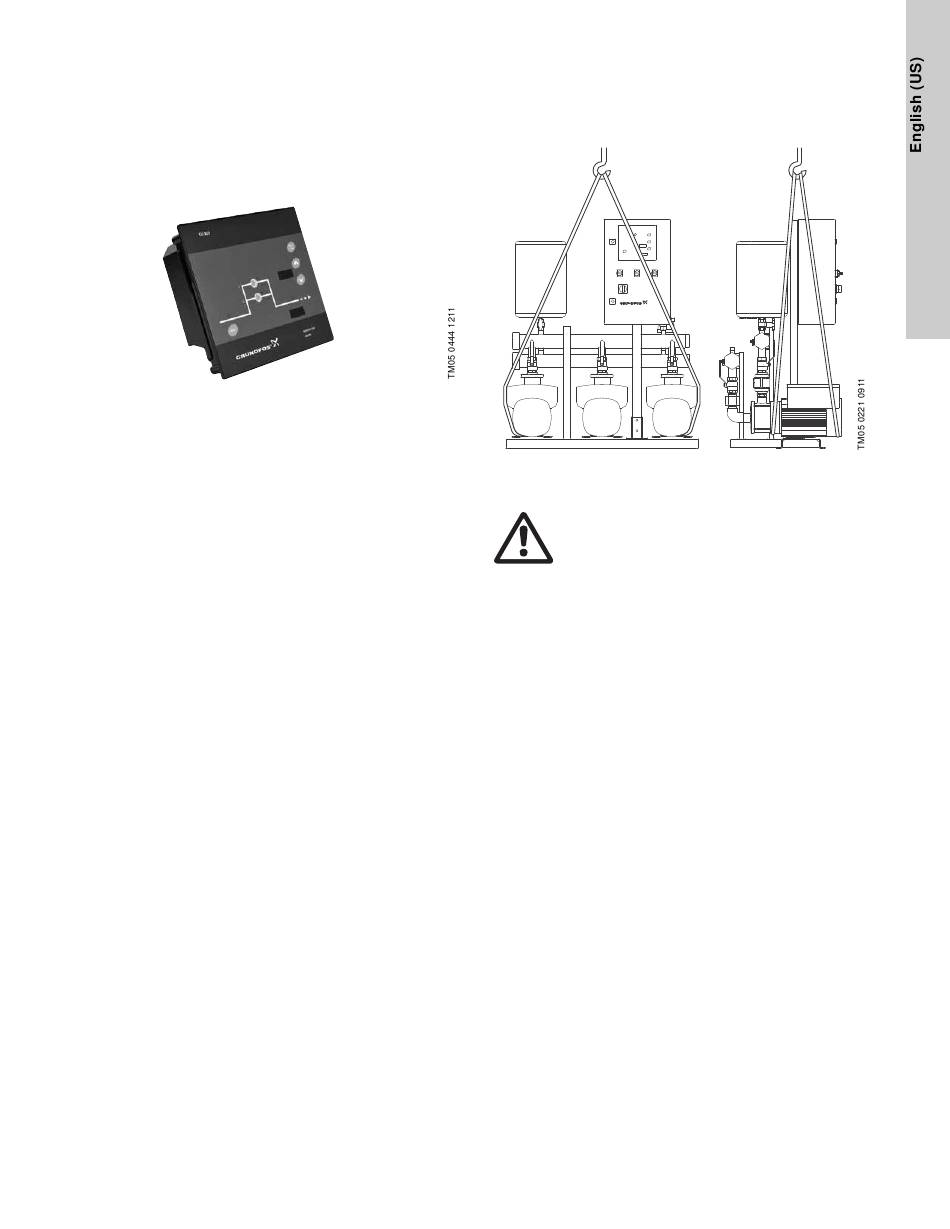

Fig. 3 CU 323 controller
The components and design of the Hydro Multi-B have been
chosen with focus on robustness and compactness. Every
system is thoroughly tested before is leaves the factory.

4. Delivery and handling

4.1 Delivery

The Hydro Multi-B booster system is delivered in a recyclable
packaging, specially designed for transport by fork-lift truck or a
similar vehicle.
The forks of the fork-lift truck must be at least 6 feet long.

4.2 Handling

Hydro Multi-B booster systems must be lifted as shown in fig. 4.
During handling, the lifting point should always be above the
centre of gravity of the booster system.
Fig. 4 Correct lifting of Hydro Multi-B
Warning
When lifting the booster system, never use the
eyebolts of the motors.
Do not lift the booster system by the manifolds.
Do not stand on the manifolds.
When lifting the booster system, only use suitable lifting
equipment that is in good condition and approved for the weight.
The weight is stated on the nameplate of the booster system.
