CP180 / CP180i
GPS Chart Plotters
Owner's Manual
CP180
CP180i

Advertisement

Table of Contents
loading

Related Manuals for Standard Horizon CP180

Summary of Contents for Standard Horizon CP180

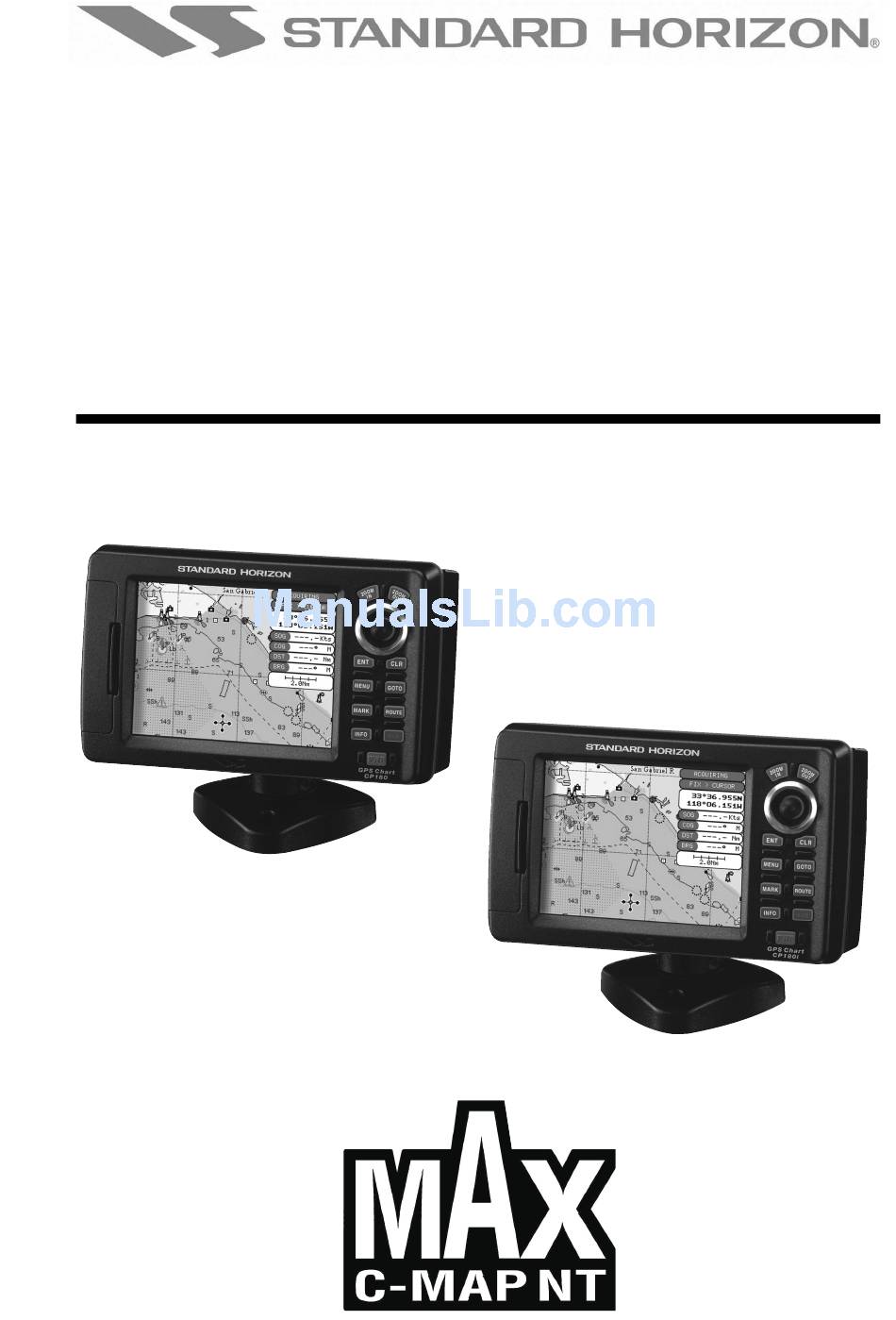

  • Page 1 CP180 / CP180i GPS Chart Plotters Owner's Manual CP180 CP180i...
  • Page 2 (1) This device cannot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. STANDARD HORIZON Copyright 2006. No part of this publication may be reproduced or distributed in any form or by any means, or stored in a database or retrieval system, without prior written permission of the publisher.
  • Page 3 - The GPS chart plotter contains dangerous high voltage circuits which only experienced technicians can handle. - STANDARD HORIZON will not be liable for errors contained herein, or for incidental or consequential damages in connection with the performance or use of this material.
  • Page 4 Page 6 CP180 / CP180i...

  • Page 5: Table Of Contents

    MOUNTING THE GPS CHART PLOTTER ... 13 BRACKET MOUNTING ... 13 FLUSH MOUNTING O MOUNTING THE CP 180 GPS ANTENNA ... 14 2.3.0 Flush mounting the CP180 antenna ... 14 CONNECTIONS ... 15 2.4.0 Connection Table ... 15 2.4.1 Connection ... 16 BATTERY CONNECTIONS ...
  • Page 6 12.0.0 Window Selections ... 62 12.0.1 Additional Functions on Chart page ... 62 12.0.2 Turning Off Information on Icon Points ... 63 Page 8 ... 43 ... 46 ... 51 ... 55 ... 55 ... 59 ... 61 CP180 / CP180i...
  • Page 7 17.0.1 DIM Menu ... 85 17.0.2 Cartridges ... 86 17.0.3 Serial Ports ... 86 18. SPECIFICATIONS 18.0 SPECIFICATIONS ... 87 18.1 GPS WAAS SMART Receiver Specifications ... 88 CP180 / CP180i ... 73 ... 74 ... 74 ... 77 ... 78 ...
  • Page 8 19. APPENDIX: TERMS ... 89 INDEX ... 91 Page 10 CP180 / CP180i...

  • Page 9: Introduction

    Congratulations on your purchase of the Standard Horizon GPS chart plotter. Whether this is your first GPS chart plotter, or if you have other STANDARD HORIZON equipment, the STANDARD HORIZON organization is committed to ensuring your enjoyment of this GPS chart plotter.
  • Page 10 S8101690 S8002223 EMO16N550 Q7000559 EM023U100 EM023U500 Page 12 Power data cable Flush mounting screws (CP180 ONLY Flush mount template (CP180 ONLY GPS WAAS Smart antenna Owner’s Manual Quick Reference Guide CP180 / CP180i...

  • Page 11: Getting Started

    2. GETTING STARTED MOUNTING THE GPS CHART PLOTTER The CP180 is supplied with hardware for bracket or flush mounting, the CP180i is supplied with only with hardware for bracket mounting due to the internal design of the GPS antenna. Below are pictures showing actual examples of the two types of installation.

  • Page 12: Mounting The Cp 180 Gps Antenna

    Figure 2.2 - Example of GPS chart plotter Flush installation MOUNTING THE CP 180 GPS ANTENNA The CP180 is supplied with a external GPS WAAS antenna with 30 feet of routing cable. This antenna is designed to be mounted on a base, installed on an extension or even flush mounted.

  • Page 13: Connections

    Figure 2.3.0a - Installing the GPS WAAS Smart antenna (II) CONNECTIONS The CP180 or CP180i has connectors that are used to connect to the power supply, GPS antenna (CP180 only) optional FF520 Fish Finder and to NMEA devices such as Marine radio, digital instruments, autopilots and AIS receivers.

  • Page 14: Connection

    Port3 Output *NOTE: FF520 FISH FINDER OPTION When a FF520 is connected to the CP180 or CP180i, Port 2 of the NMEA in/out Communi- cation setup menu must be changed to FF520 as shown below for communications. 1. From the Chart page, press [MENU]. Move the ShuttlePoint knob to highlight SETUP MENU and press [ENT].

  • Page 15: Battery Connections

    Some manufacturers of DSC VHF’s are not capable of outputting NMEA DSC sentences from the CP180 or CP180i. Refer to the Owner’s Manual and confirm the VHF can listen to NMEA DSC and DSE sentences which are outputted by the brown wire.

  • Page 16: Outputting Nmea To A Personal Computer

    Also, the active page changes automatically every 10 seconds. The pages are shown in Page 18 NMEA connection Brown Blue Green Example: ENTER TO STOP ZOOM IN TO CHANGE Port: NMEA1 Figure 2.10 - NMEA Data page CP180 / CP180i...
  • Page 17 Chart/Compass tape, Chart/Fish, Full page Fish, Navigation page, Highway Page, Celestial page, NMEA Page. This mode is use by selling dealers to promote the features of the CP180 and CP180i when retail shelf. The Demo mode can be selected from the Simulation Menu following the procedure: 1.
  • Page 18 Page 20 CP180 / CP180i...

  • Page 19: Controls And Indicators

    This key is very useful when you desire to start navigating (goto) to a destination point. When pressed, a popup window will be shown allowing you position of the cursor, Mark or Route. CP180 / CP180i NOTE NOTE /MAX C-CARD must be purchased and installed.

  • Page 20: Getting Started

    Chart page with Page 22 Figure 3.1.0 - Example of Start-Up page on CP 180 After a fix is received the GPS chart plotter will automatically ships icon centered on the screen. CP180 / CP180i...

  • Page 21: Cursor Vs. Home Mode

    The GPS chart plotter allows you to control the speed the Cursor moves when the ShuttlePoint knob is pressed. To change the speed: CP180 / CP180i Figure 3.1.0a - GPS Status and Chart pages on the Chart page (cursor is not shown) you are in Home...

  • Page 22: Changing The Ships Icon

    With the GPS chart plotter turned On, briefly press [PWR] to show the light and contrast popup window. Move the ShuttlePoint knob to the left or right to adjust the LCD backlight Page 24 Figure 3.1.2 - Cursor Speed menu Figure 3.1.3 - Ship icons CP180 / CP180i...

  • Page 23: Selecting North Up Or Course Up

    States or Pacific Standard Time the offset needed would be –08:00 or –07:00 for daylight savings time, Eastern Standard Time –05:00 or –04:00 for daylight savings time. CP180 / CP180i Figure 3.1.4 - Backlight and Contrast adjustment Figure 3.1.5 - Course Up/North Up menu...
  • Page 24 9. Repeat this method to change the minutes, if necessary. 10. Once you have the correct GPS time offset, press [ENT] to set. Page 26 Figure 3.2 - Adjusting Time NOTE Figure 3.2a - Time Setup menu CP180 / CP180i...

  • Page 25: Selecting Loran Td Or Other Coordinate System

    ShuttlePoint knob to the right. 3. Move the ShuttlePoint knob to highlight DISPLAY COLOR and press [ENT] or move the ShuttlePoint knob to the right. CP180 / CP180i Figure 3.3 - Coordinate System menu NOTE Figure 3.4 - Display Color menu...

  • Page 26: Other Settings In General Setup Menu

    The top of the page is orientated to the direction the vessel is heading. to be drawn affect how the icons for Lights, Signals, Buoys and beacons are distinguishable. using NOAA symbology when US is are not your vessels position CP180 / CP180i...
  • Page 27 ShuttlePoint knob to the right. 3. The Information page appears on the screen (see the previous Figure). 4. Press [CLR] or move the ShuttlePoint knob to the left to exit and show the Chart page. CP180 / CP180i Page 29...
  • Page 28 Page 30 CP180 / CP180i...

  • Page 29: Using Find Services & More Function

    POINTS OF INTEREST : Searches and shows information on the selected Point Of Interest. USER POINTS : Searches and shows on the Chart page the closest User Points (Marks or Waypoints). COORDINATES : Searches and shows on the Chart page GPS Coordinates. CP180 / CP180i Figure 4.0 - Port Services Page 31...

  • Page 30: Info On Lakes

    Full Info On Lakes The following is an example of Full Info on Lakes: Page 32 Figure 4.2.0 - Example of Lakes info Figure 4.2.0a - Quick Info: available services Figure 4.2.1 - Example of Full Info page CP180 / CP180i...
  • Page 31 To see the "Fishing" object press [MENU] (when the "Fishing" object is highlighted). On the screen appears: Figure 4.2.1a - Example of picture associated to the Fishing object CP180 / CP180i Page 33...
  • Page 32 Page 34 CP180 / CP180i...

  • Page 33: C-Map Max Overview

    · Dynamic Nav-Aids (an innovative and dynamic presentation mode) · Flexi-Zoom (increased Under and Over Zoom between chart levels, resulting in optimal scale display for any situation) CP180 / CP180i Figure 5.0 - Inserting C-CARD Figure 5.0a - Inserting C-CARD (Details) product technology.
  • Page 34 MAX data cover different areas, the GPS chart plotter gets data from both charts (depending on the current position). · When NT data and MAX data cover the same area, the GPS chart plotter gets data only from MAX chart. Page 36 CP180 / CP180i...

  • Page 35: Map Functions

    View of the chart. As the upper side of the map is more compressed than the lower side, a wider map area is visible. The perspective view allows showing more chart information immediately ahead and around the cursor. CP180 / CP180i Figure 6.0 - Map Functions Menu Page 37...

  • Page 36: Dynamic Nav-Aids

    1. Press [MENU]. Move the ShuttlePoint knob to highlight SETUP MENU and press [ENT]. 2. Move the ShuttlePoint knob to highlight MAX FUNCTIONS and press [ENT] or move Page 38 Figure 6.0.1 - Perspective View (DSI - Data Safety Indicator) CP180 / CP180i...
  • Page 37 Red when “Guardian Technology” detects one of the following objects: Land, Inter- tidal, Depth Area, Rocks, Obstructions, Shoreline Constructions, Fishing Facility, Wrecks, Dragged area, Diffusion area, Mooring facilities, Pingos and Production in- stallations. CP180 / CP180i allowing the Safety Status Bar to be Figure 6.0.3 - Safety Status Bar NOTE shown.

  • Page 38: Currents Prediction

    Move the cursor over the camera icon. You will get the quick info on the object and there will be the camera icon on the top bar of the window: Figure 6.0.5a - Example of Quick Info on MULTIMEDIA object Page 40 Figure 6.0.5 - Pictures and Diagrams CP180 / CP180i...

  • Page 39: Enhanced Port Info

    6.0.6 Enhanced Port Info MAX charts include additional port services that were not present before. Additional attributes of Port Areas and Port Marinas have been included (Location, Country, Region, State, Harbor master telephone number etc.). CP180 / CP180i Page 41...
  • Page 40 Page 42 CP180 / CP180i...

  • Page 41: Creating Marks

    1. After a Mark is created. Press [ENT], select EDIT using the ShuttlePoint knob and press [ENT]. 2. Use the ShuttlePoint knob to change to the Mark Icon, when finished press [ENT]. CP180 / CP180i NOTE Figure 7.0 - Mark creation Figure 7.1 - Mark editing...

  • Page 42: Deleting A Mark Or Waypoint

    A dotted line, connecting the previous Waypoint position to the new position, is shown: Press [ENT] ([CLR] to abort the move), the Waypoint appears in the new position. Page 44 Figure 7.1.1 - Moving Mark or Waypoint (I) Figure 7.1.1a - Moving Mark or Waypoint (II) CP180 / CP180i...

  • Page 43: Marks/Waypoints List

    6. Move the ShuttlePoint knob to highlight the desired Icon and press [ENT]. 7. Move the ShuttlePoint knob to the right to select the Mark name. Press [ENT] and the first digit in the name will be highlighted. CP180 / CP180i NOTE Figure 7.2 - Marks/Waypoints List...

  • Page 44: Goto Cursor

    1. Move the ShuttlePoint knob to an open position (no buoy, warning etc. under the cursor) on the Chart page. Page 46 Figure 7.4 - GO TO menu Figure 7.4a - Navigating to Cursor Example [CLR] so CP180 / CP180i...
  • Page 45 5. You will notice a circle is drawn around the Icon Symbol. This means the GPS chart plotter is now navigating to the point. 6. Press [CLR] to switch to the Chart page or Highway page to start navigating to the point. CP180 / CP180i Page 47...
  • Page 46 Page 48 CP180 / CP180i...

  • Page 47: Man Over Board (Mob) Function

    1. Move the ShuttlePoint knob until the cursor is over the top of the MOB icon. 2. Press [ENT], select DELETE and press [ENT] to confirm deleting the MOB point. 3. Move the ShuttlePoint knob to highlight YES and press [ENT]. CP180 / CP180i In this mode, the GPS chart plotter will be on the...
  • Page 48 Page 50 CP180 / CP180i...

  • Page 49: Routes

    9. Move the ShuttlePoint knob to highlight NAME and press [ENT]. A popup window will be shown. 10. Move the ShuttlePoint knob up/down to change the characters and left/right to select a different character in the Routes Name. CP180 / CP180i Figure 9.0 - Creating a Route using Waypoints NOTE maximum of 30 will be placed under the in the Route.

  • Page 50: Making Additional Routes

    7. Move the ShuttlePoint to highlight REPORT and press [ENT] or move the ShuttlePoint knob to the right. 8. Move the ShuttlePoint knob to highlight NAME and press [ENT] or move the Shuttle- Page 52 Figure 9.0 - Route Report NOTE CP180 / CP180i...

  • Page 51: Inserting A Waypoint Into A Route

    Sends the stored points to a external device (PC) capable of listening to NMEA RTE sentence. RECEIVE Receive the points from an external device (PC) capable of sending NMEA RTE sentence. CP180 / CP180i Figure 9.4.0 - Select a Route Page 53...
  • Page 52 Page 54 CP180 / CP180i...

  • Page 53: Tracks

    Time, Water Temperature (shown when FF520 is connected), Speed and Course Over Ground (COG) this is very useful if you are fishing and want to review the conditions where the fish were being caught. CP180 / CP180i individual tracks NOTE...

  • Page 54: Saving And Starting A New Track

    3. A popup window will be shown with Nm (Nautical Mile), Sm (Statute Mile), Km (Kilometer) and RESET. Move the ShuttlePoint knob to select the desired units of measure and press [ENT] or move the ShuttlePoint knob to the right. Page 56 Figure 10.0 - Tracking CP180 / CP180i...

  • Page 55: Resetting The Trip Log

    RESET and press [ENT] or move the ShuttlePoint knob to the right. 3. A Warning popup window will be shown to confirm if you want to reset the Trip Log. Using the ShuttlePoint knob select YES and press [ENT]. The Trip Log is now reset. CP180 / CP180i Page 57...
  • Page 56 Page 58 CP180 / CP180i...

  • Page 57: User C-Card

    GPS chart plotter's memory. The User C-CARD is similar to a back up disk used with a PC, in case you have to clear your GPS chart plotter's memory, or if you would like to transfer Waypoint, Track and Route information from one STANDARD HORIZON GPS chart plotter to another.

  • Page 58: Transferring Files To The Optional User C-Card

    3. Move the ShuttlePoint knob to highlight REFRESH and press [ENT]. 4. Remove the User C-CARD and insert the new one into the slot. Press [ENT]. Page 60 C-CARD if present and insert the optional User /MAX CP180 / CP180i...

  • Page 59: Pages

    COG and SOG, place points, GOTO a destination point, show Track history etc. The GPS chart plotter is provided with a Worldwide background showing C-MAP /MAX detail up to 2.0 NM. For more detail, optional C-MAP NT /MAX C-CARDs are used. CP180 / CP180i Page 61...

  • Page 60: Window Selections

    Stations and Port Icons. If the cursor is moved over the top of these icons a popup window will be shown with information about the icon. Page 62 Figure 12.0 - Charts and general text area GENERAL 1 LINE SMALL WAAS HIGHWAY Figure 12.0.0 - Data window layout WAAS 1 LINE LARGE COMPASS CP180 / CP180i...

  • Page 61: Turning Off Information On Icon Points

    Underwater Ob. Limit 1000Ft Rocks Icon + Depth Obstructions Icon + Depth Diffusers Icon + Depth Wrecks Icon + Depth CP180 / CP180i Medium RADAR No Sector No Sector No Sector 0 Ft 0 Ft 0 Ft 32805 Ft 32805 Ft...

  • Page 62: Marine Settings

    Points of interest : Turns the displaying of Points of Information On or Off. 12.0.7 Chart Settings Settings that control how the chart features will be shown on the Chart page of the GPS chart plotter. Page 64 CP180 / CP180i...

  • Page 63: Underwater Objects Settings

    3. Move the ShuttlePoint knob up or down to choose the desired setting and press [ENT] to select and press [CLR] to store and exit the editing mode. CP180 / CP180i NOTE(*) The default setting is Icon.

  • Page 64: Customizing Chart Settings

    6. Press [CLR] or move the ShuttlePoint knob to the right until the Chart page is shown. Fix position Time 3 Speed Over Ground Course Over Ground Compass Rose Figure 12.2 - Navigation Data page with Compass Rose Page 66 CP180 / CP180i...

  • Page 65: Highway Page

    3. Press [CLR] to exit and view the information. Changing to and from Daylight Savings time 1. Press [MARK] to toggle between Standard and Daylight Savings time. CP180 / CP180i Figure 12.3 - Highway page Page 67...

  • Page 66: Gps Status Page

    NMEA Display shows 3 windows. When going to a destination, this screen is useful to navigate as to get to the destination keep the Course Over Ground (COG) and Bearing (BRG) figures the same. Page 68 Figure 12.4 - Celestial page Figure 12.5 - GPS Status page CP180 / CP180i...

  • Page 67: Nmea Data Page

    12.8 NMEA DEPTH, WIND SPEED, TEMP AND SOG TREND PAGES When the GPS chart plotter is connected to the Optional FF520 50/200kHz BLACK BOX CP180 / CP180i Figure 12.6 - NMEA Display page Figure 12.7 - NMEA Data page Page 69...

  • Page 68: Vhf Digital Selective Calling

    STANDARD HORIZON VHF Marine Radios with Digital Selective Calling are able to be interfaced with the GPS chart plotter which feeds GPS data to the VHF and listens for DSC calls from the VHF. By connecting a few wires between the STANDARD HORIZON VHF and the GPS chart plotter it will receive: 1.

  • Page 69: Position Request

    12.9.2 Position Request STANDARD HORIZON VHF radios can transmit a DSC call to other equipped Vessels with a DSC VHF or request this radio transmit the GPS position. When this position is received the STANDARD HORIZON VHF radio sends the information to the GPS chart plotter which displays the GPS position of the vessel on the Chart page.
  • Page 70 Page 72 CP180 / CP180i...

  • Page 71: Advanced Settings

    ASF1/2 : Additional Secondary phase Factor (TD Coordinate System) Correction to TD1/2 values which can be inserted by the user. CP180 / CP180i 2 NMEA inputs and 3 NMEA outputs. The NMEA outputs can be of the display. To keep the vessel in the center of the display the GPS chart plotter will occasionally redraw.

  • Page 72: Compass

    Instead, if in the next searches the objects found before are no longer detected, their relevant item in the Grounding Alarm Report Page 74 Figure 13.2 - Compass Table NOTES /MAX C-CARDs. It also affects the CP180 / CP180i...
  • Page 73 Grounding Alarm Report Page to identify which dangerous objects have been currently detected. b. Grounding Alarm Report : Displays a report of dangerous objects found. CP180 / CP180i Figure 13.3 - Grounding Alarm Page 75...
  • Page 74 Page 76 CP180 / CP180i...

  • Page 75: Ais

    Dangerous Target: Target detected by CPA or TCPA Alarm. Dangerous target is Active Target by definition. For better visibility Dangerous Target symbol is flashing. Sleeping Target: Target located outside the Activation Range. Sleeping target CP180 / CP180i Page 77...

  • Page 76: Ais Menu

    = Port 1/Port 2/Port 3* m = NMEA-0183 4800-N81-N, NMEA-0183 38400-N82-N according to the transmission speed of your AIS receiver. For CP 180i there is not the selection for the Port 3. Page 78 NOTE NOTE* CP180 / CP180i...

  • Page 77: Quick Info On Ais Target

    By placing the cursor over a AIS Target icon, the following information is displayed: Vessel Name MMSI number Radio Call Sign CPA and TCPA values The selected AIS Target icon is surrounded by a square frame when user places the cursor over the icon. CP180 / CP180i NOTE Page 79...
  • Page 78 Page 80 CP180 / CP180i...

  • Page 79: C-Map Weather Service

    : Allows inserting of the Pin of the SIM. Download Area : Allows the weather download: a squared grey area, where the weather data will be downloaded, is centered on cursor position. See the following picure. CP180 / CP180i Display Figure 15 - Weather data package WARNING 18°...

  • Page 80: Copy From User C-Card

    The layer displayed is the one selected into the previous menu item. 15.0.4 Type of Data Allows selecting the type of data, refer to the table in the Figure 16. Page 82 Figure 15.0.0 - Download Area CP180 / CP180i...

  • Page 81: Trouble Shooting

    Chart page, press [INFO], move the ShuttlePoint knob to Data Source and press [ENT]. Write down the “Compilation scale”, “Notice to mariners” and “Horizontal datum”. Next contact C-MAP USA at 508/477-8010 and advise the problem. CP180 / CP180i Page 83...
  • Page 82 Page 84 CP180 / CP180i...

  • Page 83: Technical Tests

    Each time you move the ShuttlePoint knob to right, the screen will decrease brightness, move it to the left to increase brightness. Backlight The second option allows to set the backlight. Operates in similar mode as Contrast. CP180 / CP180i Page 85...

  • Page 84: Cartridges

    Use [ZOOM IN] to stop (or continue after pause) data displaying, [ENT] to show data in hex or ASCII mode (normal or small) and [CLR] to exit. Loop-Back Test This is a special test done during the production phase to check the serial ports integrity. A special connector is required. Page 86 CP180 / CP180i...

  • Page 85: Specifications

    Water Resistance Memory Keyboard Weight (without bracket) User Points (Marks/Waypoints): 600 Routes Track Points CP180 / CP180i : 10-35 Volt DC : Input/Output Interface NMEA-0183 : TFT Color LCD (active area 5") : 320 x 240 pixels : C-MAP NT...

  • Page 86: Gps Waas Smart Receiver Specifications

    : < 45 seconds (typical) : less than 10' (3m), 95% of the time : 0.3 Knots RMS : 1 second : 1 second : 1 second : 1 second : 3 seconds : 3 seconds : 1 second CP180 / CP180i...
  • Page 87 (GPS). The smaller the HDOP/VDOP value, the more accurately the position fix is provided. HEIGHT – The current tide height referred to the vertical cursor. HIGH WATER – The maximum level of the tide height in 24 hours. CP180 / CP180i Page 89...
  • Page 88 LOW WATER – The minimum level of the tide height in 24 hours. Position Request – Marine DSC VHF Function of transmitting a GPS position to another Marine DSC VHF. When GPS chart plotter is connected to STANDARD HORIZON GPS the position of another vessel is shown on the Chart page.
  • Page 89 Currents Prediction ... 40 cursor ... 21 Cursor Mode ... 22, 23 CURSOR WINDOW ... 28 Cursor/Menu Speed ... 24 CP180 / CP180i Data Safety Indicator ... 38 Data window layout ... 62 DATE ... 89 Daylight Savings ... 25, 67 Demo mode ...
  • Page 90 Simulation ... 19 Smart GPS Cable ... 16 Smart, GPS WAAS ... 88 SOG ... 90 Speed ... 28, 90 Starting Waypoint ... 51 startup page ... 22 Static Navigation ... 73 STEER ... 90 Structure ... 39 CP180 / CP180i...
  • Page 91 Universal Time Coordinates ... 25 User C-CARD ... 59 User Points ... 31, 87 CODE: S3e/igSH5c_0ww 11.00cA77 - 080606 CP180 / CP180i UTC ... 25 UTM ... 27 Value Added Data ... 35, 65 Variation ... 74 VDOP ... 89 VHF Radio ...
  • Page 92 In the event of a defect, malfunction or failure of the Product during the warranty period, Standard Horizon's liability for any breach of contract or any breach of express or implied warranties in connection with the sale of Products shall be limited solely to repair or replacement, at its option, of the Product or part(s) therein which, upon examination by STANDARD HORIZON, appear to be defective or not up to factory specifications.

This manual is also suitable for:
