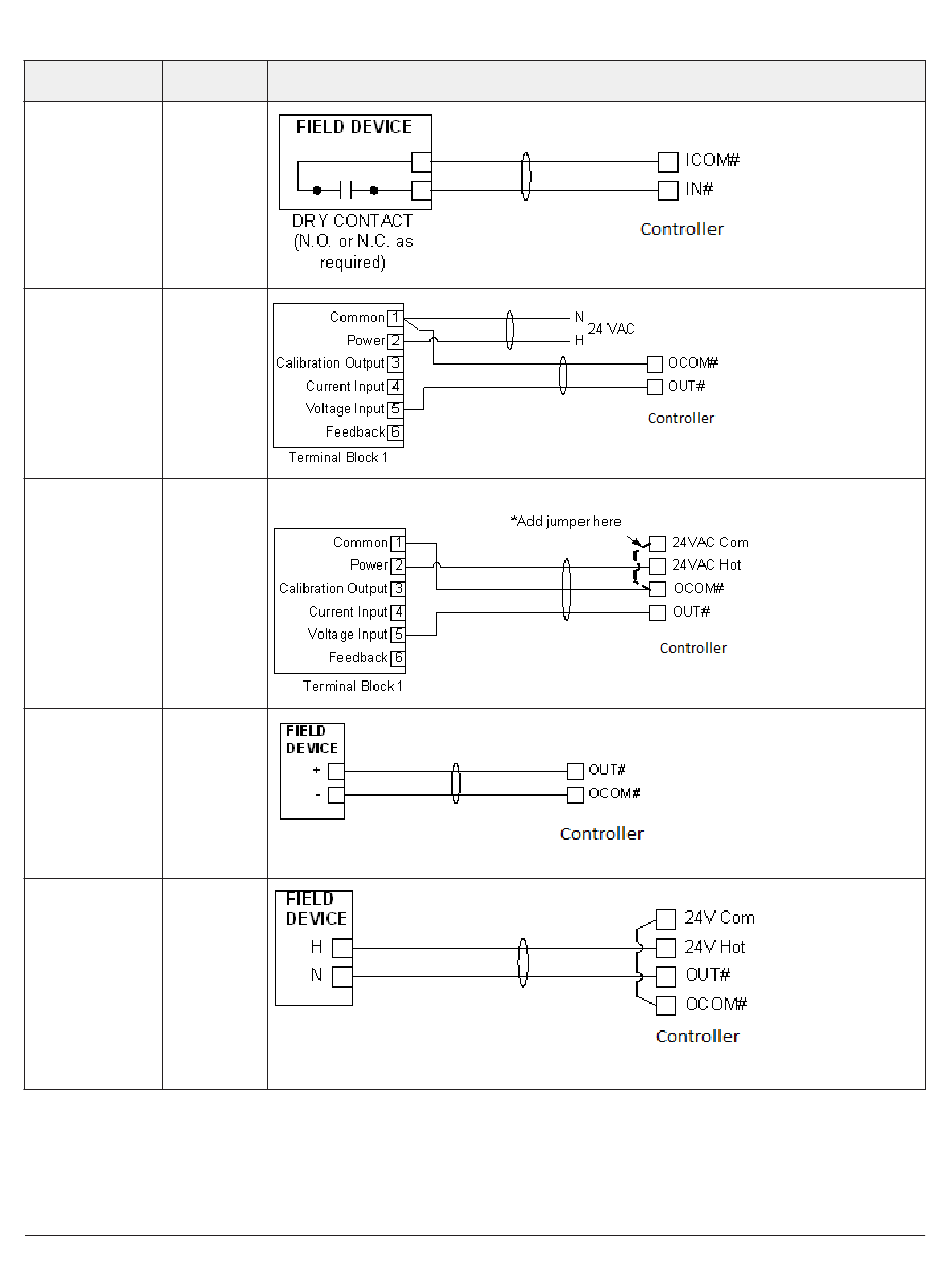

Table 6: Termination details
Type of field Type of Input/
device Output
Dry Contact
UI or BI
(Binary Input)
0–10 VDC Output
to Actuator CO or AO
(External Source)
0–10 VDC Output
to Actuator CO or AO
(Internal Source)
Current Output CO or AO
24 VAC Triac
Output (Switch
CO or AO
Low, External
Source)
14 FAC4911 Advanced Application Field Equipment Controller Installation Guide
Termination diagrams
