Unpack your DAE

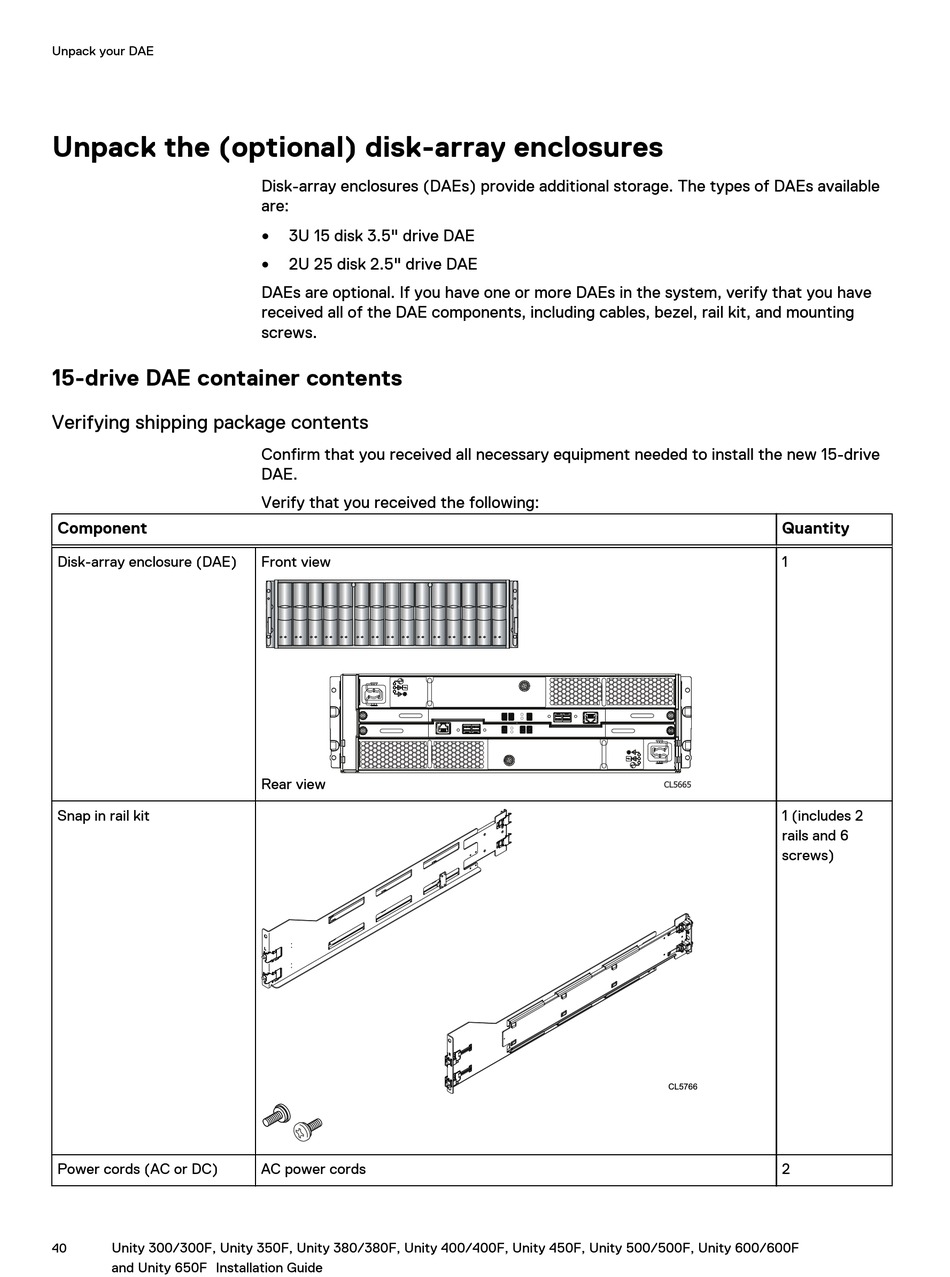

Unpack the (optional) disk-array enclosures

15-drive DAE container contents

Verifying shipping package contents
Component
Disk-array enclosure (DAE)
Snap in rail kit
Power cords (AC or DC)
Unity 300/300F, Unity 350F, Unity 380/380F, Unity 400/400F, Unity 450F, Unity 500/500F, Unity 600/600F
40
and Unity 650F Installation Guide
Disk-array enclosures (DAEs) provide additional storage. The types of DAEs available
are:
3U 15 disk 3.5" drive DAE
l
2U 25 disk 2.5" drive DAE
l
DAEs are optional. If you have one or more DAEs in the system, verify that you have
received all of the DAE components, including cables, bezel, rail kit, and mounting
screws.
Confirm that you received all necessary equipment needed to install the new 15-drive
DAE.
Verify that you received the following:
Front view
Rear view
AC power cords
CL4139
CL5665
CL5766
Quantity
1
1 (includes 2
rails and 6
screws)
2
