Cable and power up your DAE components
Expansion port cable labeling details
Label part Label
number
046-001-562
046-001-562_xx
SP A SAS 1
SP A SAS 1
SP A SAS 1
SP A SAS 1
046-003-750
046-003-750_xx
SP B SAS 1
SP B SAS 1
SP B SAS 1
SP B SAS 1
Unity 300/300F, Unity 350F, Unity 380/380F, Unity 400/400F, Unity 450F, Unity 500/500F, Unity 600/600F
56
and Unity 650F Installation Guide

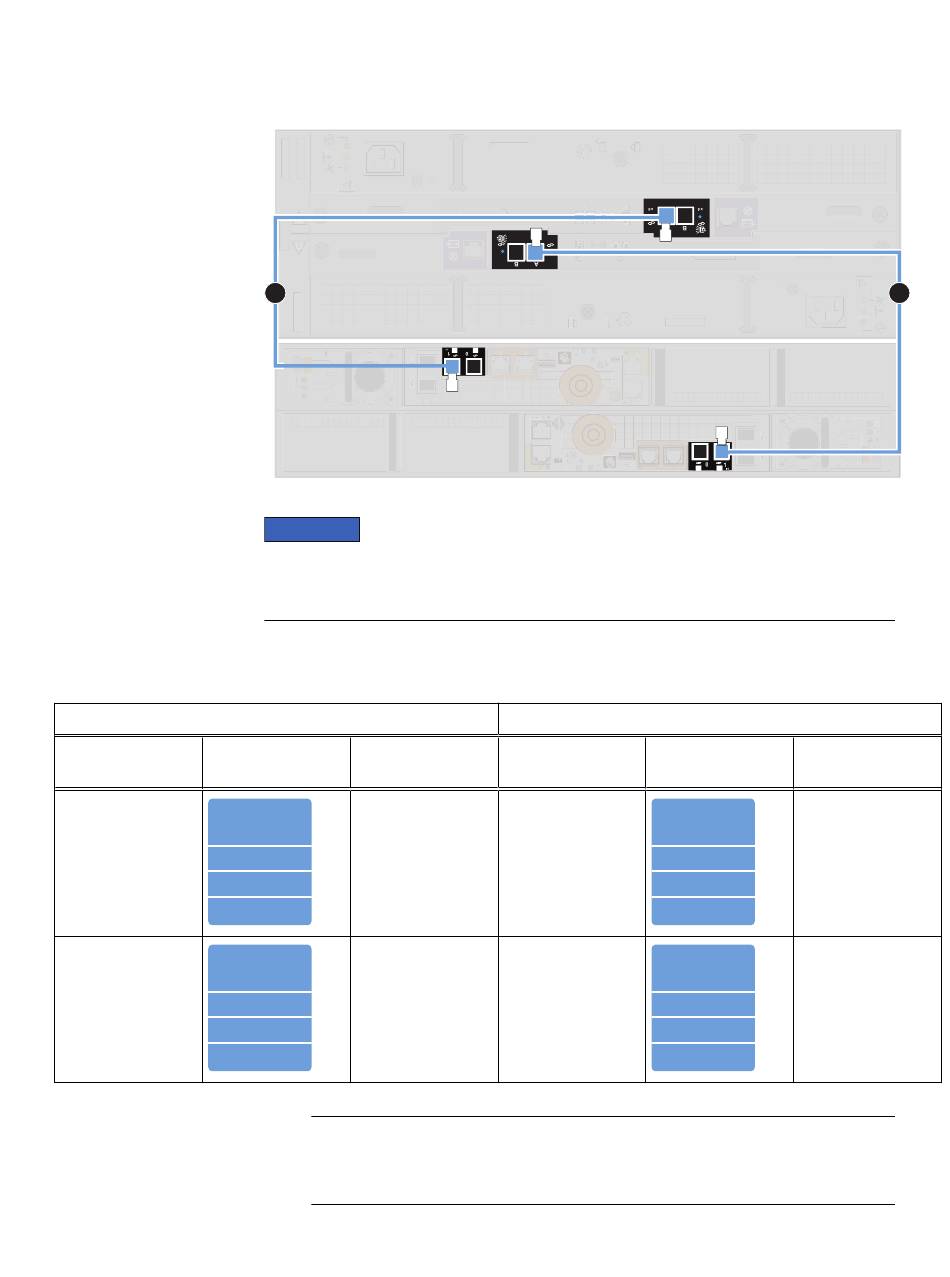

Figure 26 Example: DPE to DAE BE1 enclosure 0 (continued)
B
A
2
4
5
NOTICE
When cabling the 15-drive DAE LCC SAS ports, ensure that the cables do not overlap
behind the DAE. The illustration above demonstrates the proper method for cabling to
the DAE LCC SAS ports.
Procedure
1. Label a pair of mini-SAS HD cables using the blue labels shown here.
Port
SP A SAS 1
SP B SAS 1
2. Connect each SP to the first optional DAE to create BE1 EA0.
Note
Neither connector on the mini-SAS HD cable has a symbol to indicate input or
output.
#
B B A A
x4 x4 x4 x4
3 2
1
Primary port cable labeling details
Label part
number
046-021-012
046-021-013
A B
A B
5
4
0 1
x4
Label Port
LCC A Port A
046-021-012_xx
LCC A PORT A
LCC A PORT A
LCC A PORT A
LCC A PORT A
LCC B Port A
046-021-013_xx
LCC B PORT A
LCC B PORT A
LCC B PORT A
LCC B PORT A
1
AC
DC
