Technical Information
PLUS+1 SC0XX-1XX Controller Family

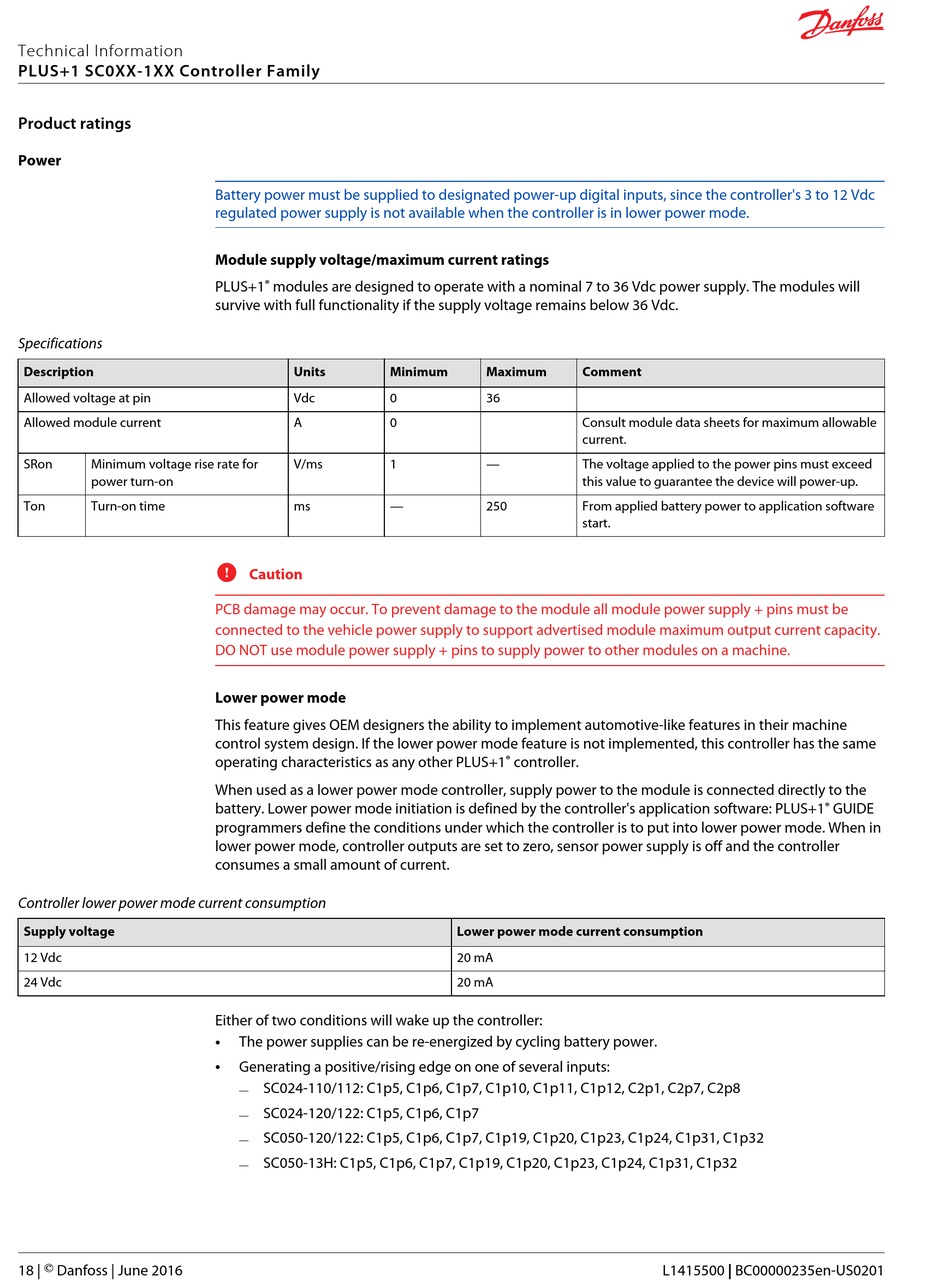

Product ratings

Power

Specifications
Description
Allowed voltage at pin
Allowed module current
SRon Minimum voltage rise rate for
power turn-on
Ton Turn-on time
Controller lower power mode current consumption
Supply voltage
12 Vdc
24 Vdc
18 | © Danfoss | June 2016
Battery power must be supplied to designated power-up digital inputs, since the controller's 3 to 12 Vdc
regulated power supply is not available when the controller is in lower power mode.

Module supply voltage/maximum current ratings

PLUS+1 ® modules are designed to operate with a nominal 7 to 36 Vdc power supply. The modules will
survive with full functionality if the supply voltage remains below 36 Vdc.
Units Minimum
Vdc 0
A 0
V/ms 1
ms —
C
Caution
PCB damage may occur. To prevent damage to the module all module power supply + pins must be
connected to the vehicle power supply to support advertised module maximum output current capacity.
DO NOT use module power supply + pins to supply power to other modules on a machine.

Lower power mode

This feature gives OEM designers the ability to implement automotive-like features in their machine
control system design. If the lower power mode feature is not implemented, this controller has the same
operating characteristics as any other PLUS+1
When used as a lower power mode controller, supply power to the module is connected directly to the
battery. Lower power mode initiation is defined by the controller's application software: PLUS+1
programmers define the conditions under which the controller is to put into lower power mode. When in
lower power mode, controller outputs are set to zero, sensor power supply is off and the controller
consumes a small amount of current.
Either of two conditions will wake up the controller:
•
The power supplies can be re-energized by cycling battery power.
•
Generating a positive/rising edge on one of several inputs:
‒ SC024-110/112: C1p5, C1p6, C1p7, C1p10, C1p11, C1p12, C2p1, C2p7, C2p8
‒ SC024-120/122: C1p5, C1p6, C1p7
‒ SC050-120/122: C1p5, C1p6, C1p7, C1p19, C1p20, C1p23, C1p24, C1p31, C1p32
‒ SC050-13H: C1p5, C1p6, C1p7, C1p19, C1p20, C1p23, C1p24, C1p31, C1p32
Maximum Comment
36
Consult module data sheets for maximum allowable
current.
— The voltage applied to the power pins must exceed
this value to guarantee the device will power-up.
250 From applied battery power to application software
start.
® controller.
Lower power mode current consumption
20 mA
20 mA
®
GUIDE
L1415500 | BC00000235en-US0201
