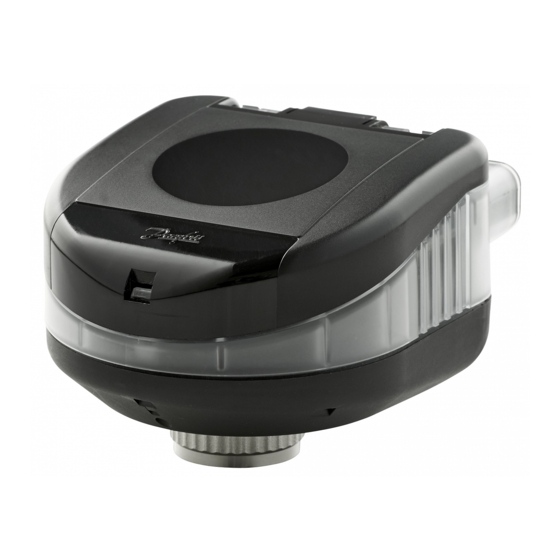

Danfoss NovoCon S 003Z8504 Operating Manual

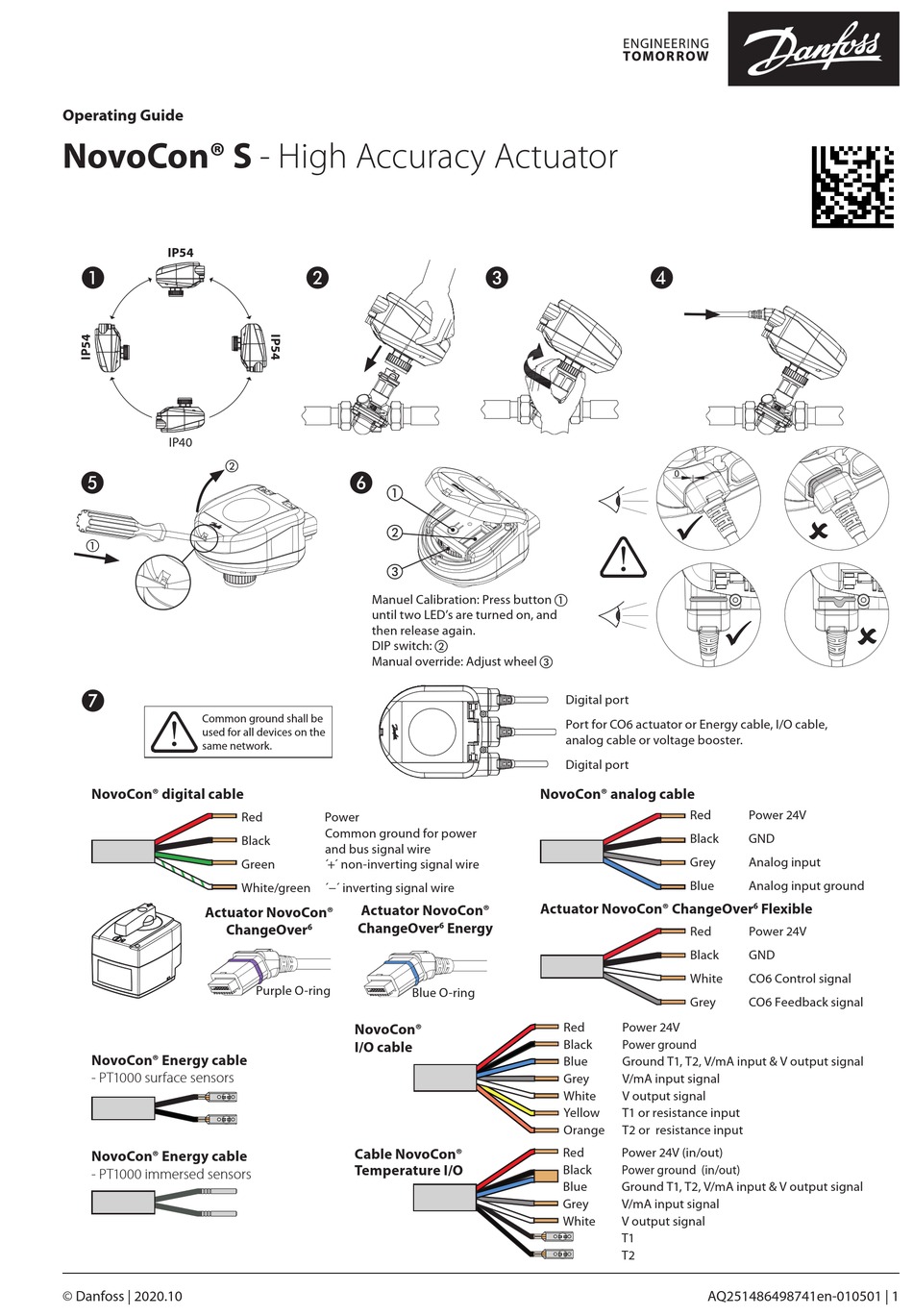

Operating Guide
NovoCon® S - High Accuracy Actuator
IP54
❶
IP40
②
❺
①
❼
Common ground shall be
used for all devices on the
same network.
NovoCon® digital cable
Actuator NovoCon®
ChangeOver
NovoCon® Energy cable
- PT1000 surface sensors
NovoCon® Energy cable
- PT1000 immersed sensors
© Danfoss | 2020.10
❷
❻
①
②
③
Manuel Calibration: Press button ①
until two LED's are turned on, and
then release again.
DIP switch: ②
Manual override: Adjust wheel ③
Red Power
Common ground for power
Black
and bus signal wire
Green ´+´ non-inverting signal wire
White/green ´−´ inverting signal wire
Actuator NovoCon®
ChangeOver
6
Purple O-ring
Blue O-ring
NovoCon®
I/O cable
Cable NovoCon®
Temperature I/O
❸
Digital port
Port for CO6 actuator or Energy cable, I/O cable,
analog cable or voltage booster.
Digital port
NovoCon® analog cable
Actuator NovoCon® ChangeOver
Energy
6
Red
Black
Blue
Grey
White
Yellow
Orange
Red
Black
Blue
Grey
White
❹


Red Power 24V
Black GND
Grey Analog input
Blue Analog input ground
6 Flexible
Red Power 24V
Black GND
White CO6 Control signal
Grey CO6 Feedback signal
Power 24V
Power ground
Ground T1, T2, V/mA input & V output signal
V/mA input signal
V output signal
T1 or resistance input
T2 or resistance input
Power 24V (in/out)
Power ground (in/out)
Ground T1, T2, V/mA input & V output signal
V/mA input signal
V output signal
T1
T2
AQ251486498741en-010501 | 1


