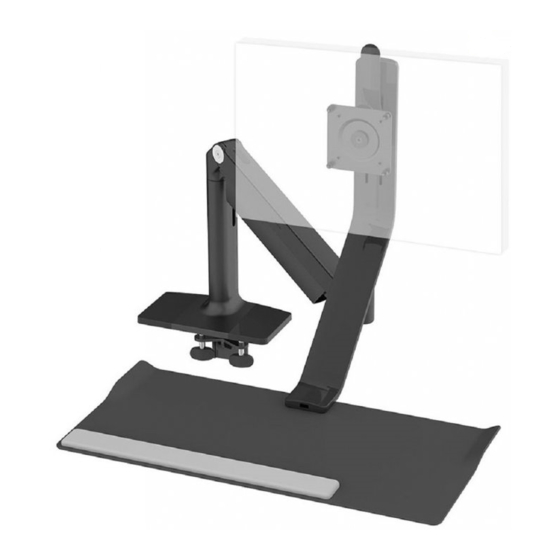

Summary of Contents for Humanscale Quick Stand Lite

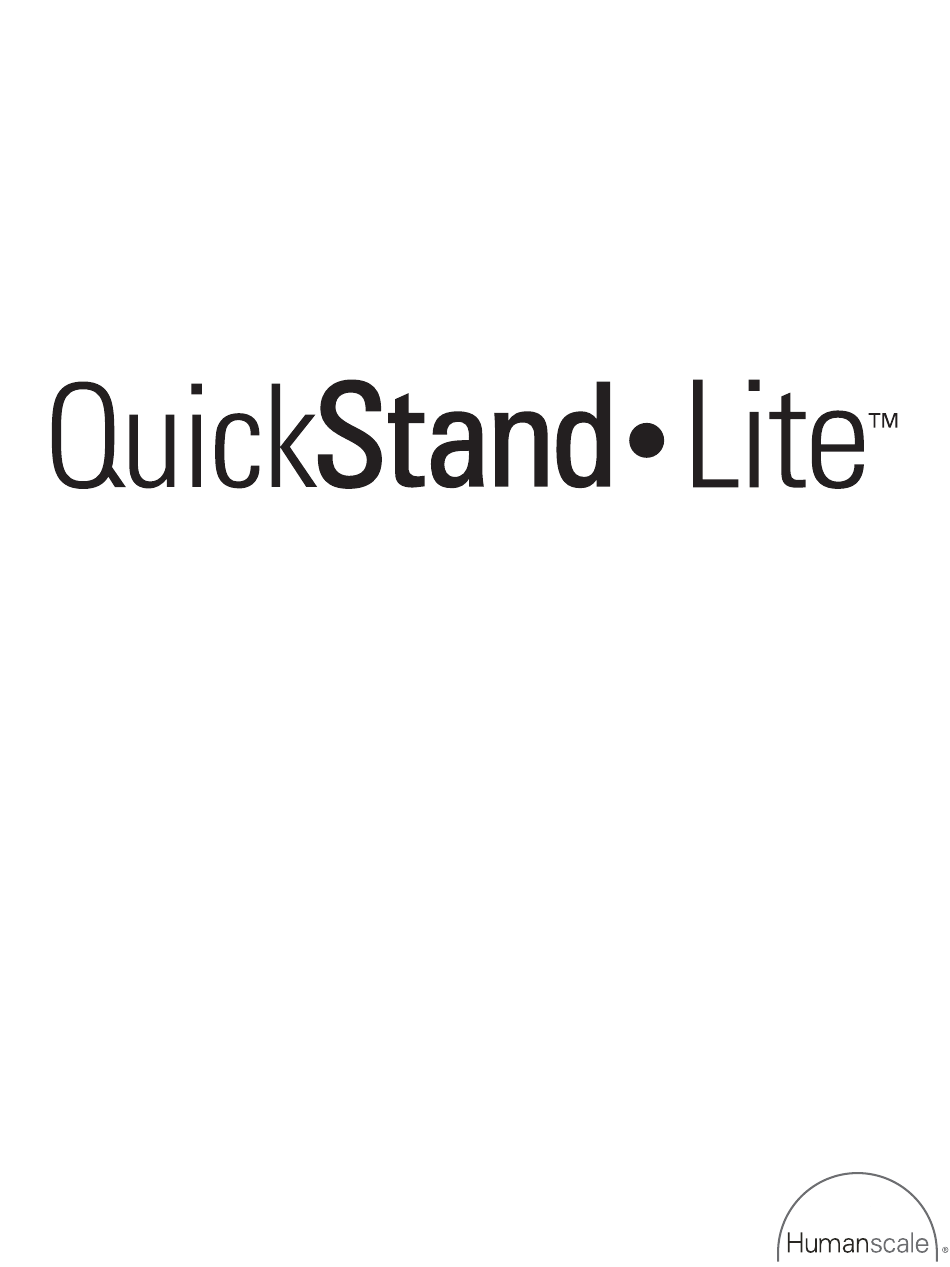

- Page 1 IN STA L LATION IN STRUCT IO N S...
- Page 2 (2) M5 x 14mm Flat Head Machine Screw (4) M4 x 8mm Pan Head Phillips (4) M4 x 18mm Pan Head Phillips (4) VESA Spacers Hardware www.humanscale.com Customer Service: N America +1 800 400 0625 / International +353 (0)1 858 0910...
- Page 3 ST EP 1 (IF USING CL A MP MOUNT ) Assemble Base and Clamp • Loosen the two M6 x 12mm screws on the clamp bracket and remove the clamp foot assembly (fig. A) • Attach the clamp bracket to the base using the M12 x 25mm countersink screw (fig.
- Page 4 ST EP 3 Remove Cable Cover • Take off the plastic cable cover from the base and remove the 180° stop screw. ST EP 4 Insert M8 Arm • Place the M8 arm into the socket on the base and re-insert the 180°stop screw. ST EP 5 Prep Lower Arm •...
- Page 5 ST EP 6 Attach Keyboard Platform • Attach the keyboard platform to the lower arm using four M6 x 10mm countersink screws and the included metal plate. ST EP 7 Attach Lower Arm to Base • Remove the 180° stop screw from the M8 arm head.
- Page 6 ST EP 9 Attach Upper Arm • Slide the upper arm assembly down onto the lower arm and secure it with a M6 x 20mm countersink screw. ST EP 10 Attach VESA Plate • Attach the VESA plate to your monitor(s) using four M4 x 8mm pan head screws.
- Page 7 ST EP 12 Adjust Monitor Arm Tension • Adjust the tension of the M8 arm using a 5mm hex key to match the weight of the monitor(s). • Turn clockwise for heavier weights and counterclockwise for lighter weights. ST EP 13 Adjust Keyboard Platform Location •...
- Page 8 Guide the cables through the side opening and down the back, then replace the cover (fig. J) by pressing it over them and slide down to lock it in place again. Customer Service: N America +1 800 400 0625 / International +353 (0)1 858 0910 www.humanscale.com...
