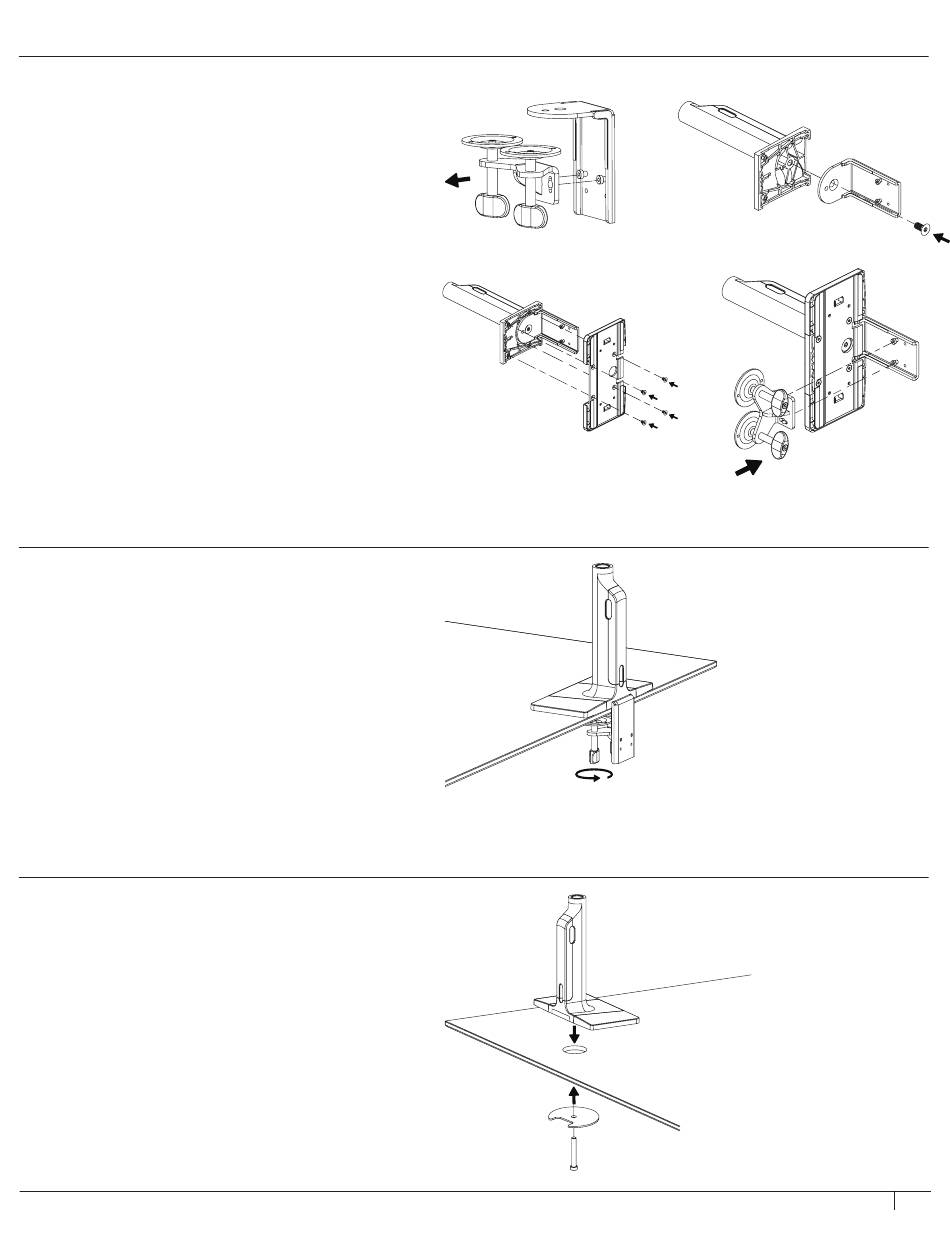

ST EP 1 (IF USING CL A MP MOUNT )
Assemble Base and Clamp
• Loosen the two M6 x 12mm screws on the clamp
bracket and remove the clamp foot assembly (fig. A)
• Attach the clamp bracket to the base using the
M12 x 25mm countersink screw (fig. B)
• Attach the base plate to the base with four
M6 x 10mm countersink screws (fig. C)
• Slide the clamp foot assembly back onto the clamp
bracket and tighten the two M6 x 12mm screws (fig. D)
ST EP 2 (IF USING CL A MP MOUNT )
Attach Base to Table
• Slide the assembled base onto the desk and
tighten the clamp feet. If needed, move the clamp
feet to the lower position on the bracket.
• Proceed to STEP 3
ST EP 1 (IF USING BOLT MOUNT )
Attach Base to Table
• Position the QuickStand Lite base over the work surface hole.
• Align the bolt-through plate, foam side up, under the
work surface. Pass the bolt through the hole in the plate
and screw into the QuickStand Lite base.
• Full tighten until secure.
• Proceed to STEP 3
