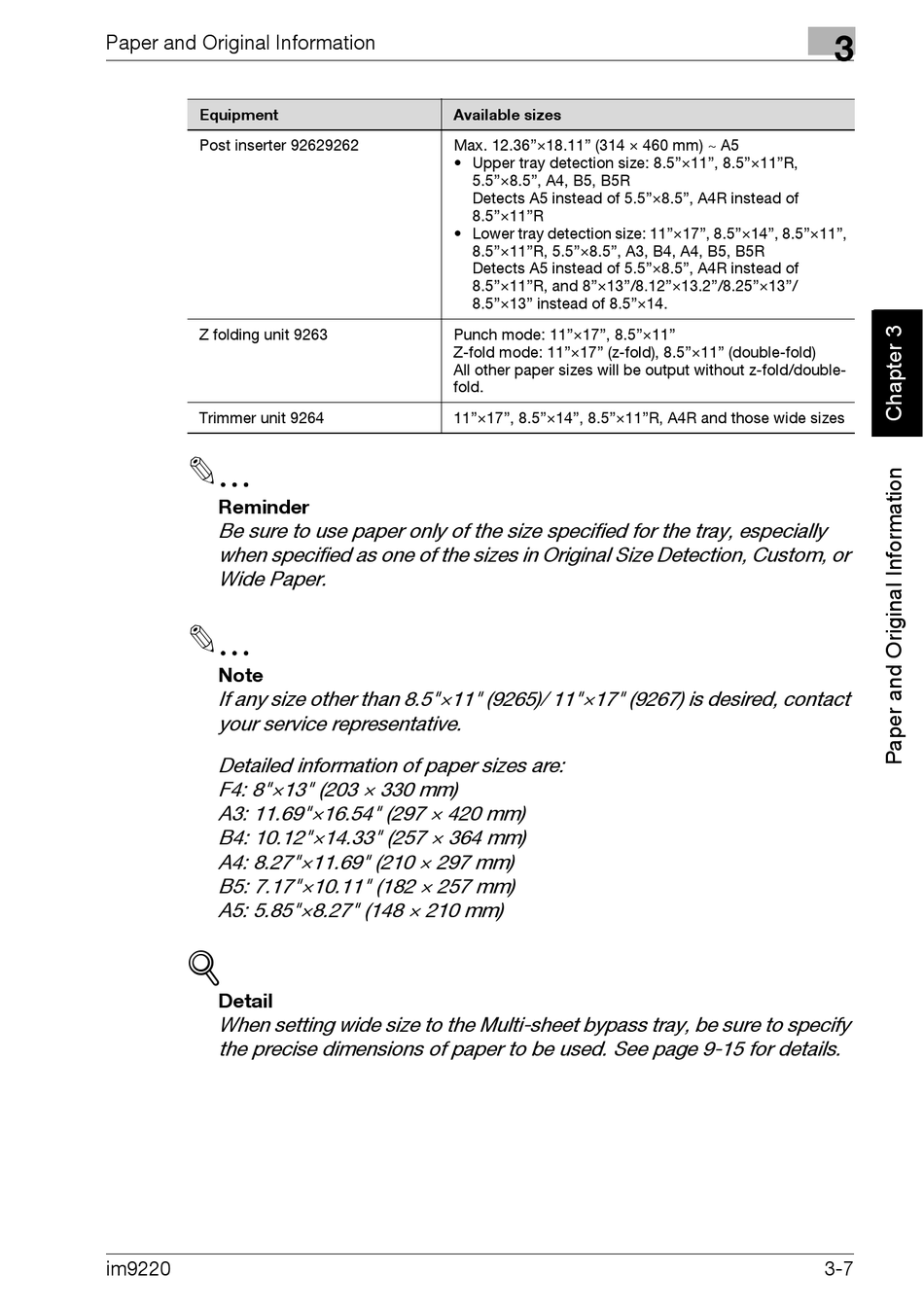

Paper and Original Information
Equipment
Post inserter 92629262
Z folding unit 9263
Trimmer unit 9264
Reminder
Be sure to use paper only of the size specified for the tray, especially
when specified as one of the sizes in Original Size Detection, Custom, or
Wide Paper.
Note
If any size other than 8.5"×11" (9265)/ 11"×17" (9267) is desired, contact
your service representative.
Detailed information of paper sizes are:
F4: 8"×13" (203 × 330 mm)
A3: 11.69"×16.54" (297 × 420 mm)
B4: 10.12"×14.33" (257 × 364 mm)
A4: 8.27"×11.69" (210 × 297 mm)
B5: 7.17"×10.11" (182 × 257 mm)
A5: 5.85"×8.27" (148 × 210 mm)
!
Detail
When setting wide size to the Multi-sheet bypass tray, be sure to specify
the precise dimensions of paper to be used. See page 9-15 for details.
im9220
Available sizes
Max. 12.36"×18.11" (314 × 460 mm) ~ A5
• Upper tray detection size: 8.5"×11", 8.5"×11"R,
5.5"×8.5", A4, B5, B5R
Detects A5 instead of 5.5"×8.5", A4R instead of
8.5"×11"R
• Lower tray detection size: 11"×17", 8.5"×14", 8.5"×11",
8.5"×11"R, 5.5"×8.5", A3, B4, A4, B5, B5R
Detects A5 instead of 5.5"×8.5", A4R instead of
8.5"×11"R, and 8"×13"/8.12"×13.2"/8.25"×13"/
8.5"×13" instead of 8.5"×14.
Punch mode: 11"×17", 8.5"×11"
Z-fold mode: 11"×17" (z-fold), 8.5"×11" (double-fold)
All other paper sizes will be output without z-fold/double-
fold.
11"×17", 8.5"×14", 8.5"×11"R, A4R and those wide sizes
3
3-7
