11

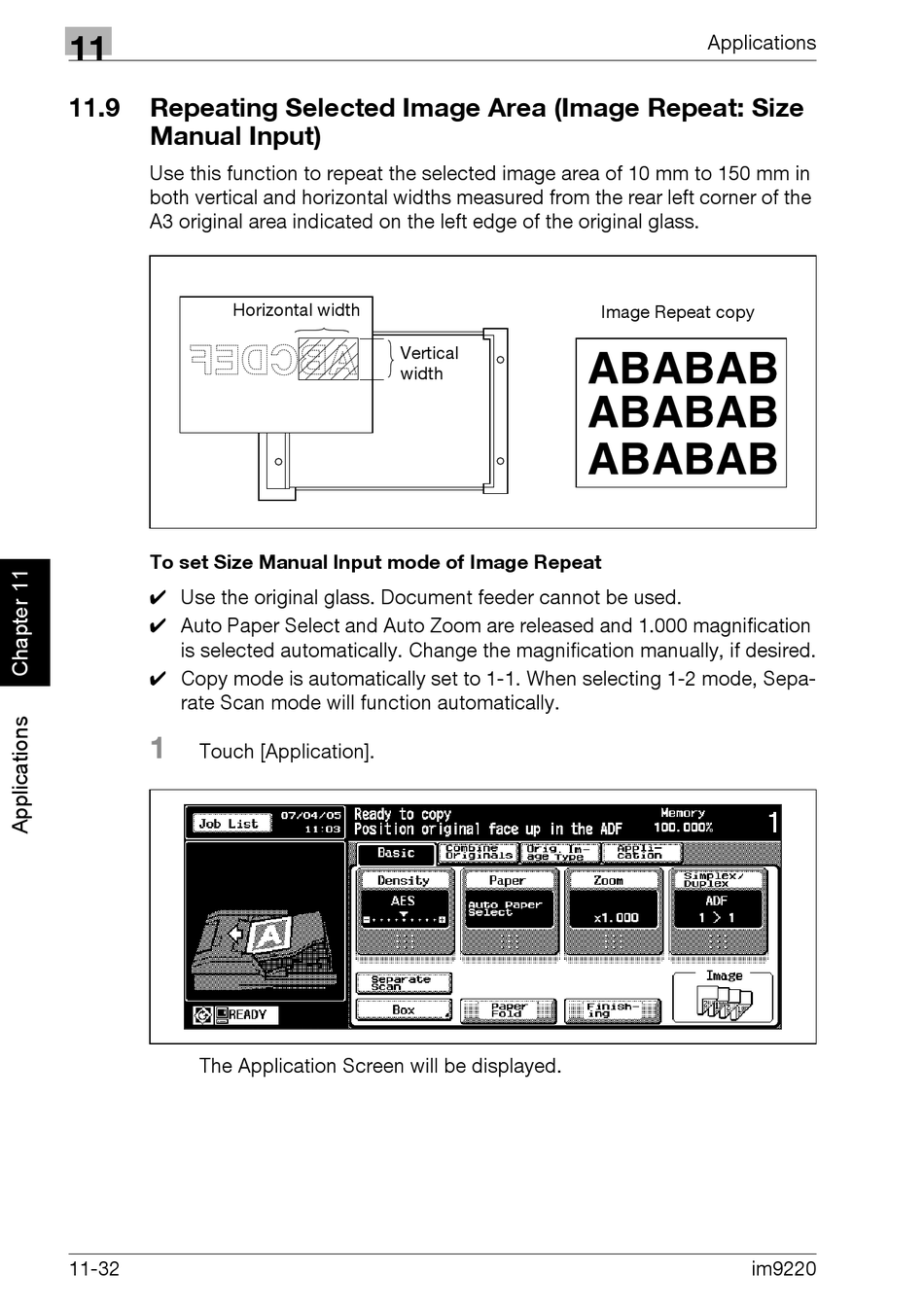

11.9 Repeating Selected Image Area (Image Repeat: Size
Manual Input)
Use this function to repeat the selected image area of 10 mm to 150 mm in
both vertical and horizontal widths measured from the rear left corner of the
A3 original area indicated on the left edge of the original glass.
Horizontal width
To set Size Manual Input mode of Image Repeat
0 Use the original glass. Document feeder cannot be used.
0 Auto Paper Select and Auto Zoom are released and 1.000 magnification
is selected automatically. Change the magnification manually, if desired.
0 Copy mode is automatically set to 1-1. When selecting 1-2 mode, Sepa-
rate Scan mode will function automatically.
1
Touch [Application].
The Application Screen will be displayed.
11-32
Vertical
width
Applications
Image Repeat copy
im9220
