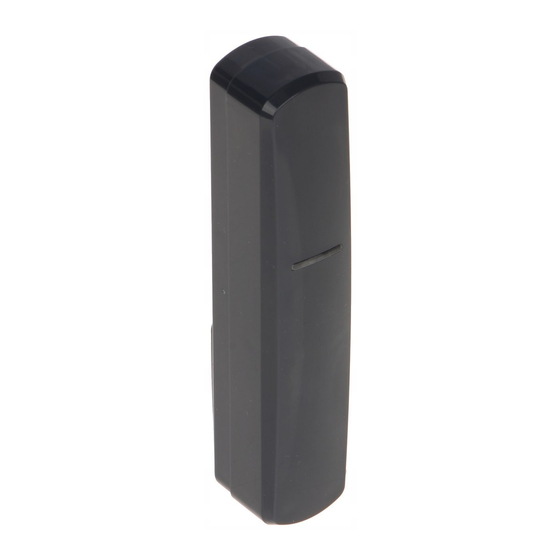

Satel AXD-200 Manual

Wireless multipurpose detector
Hide thumbs Also See for AXD-200:
Table of Contents

Advertisement

Quick Links

Download this manual

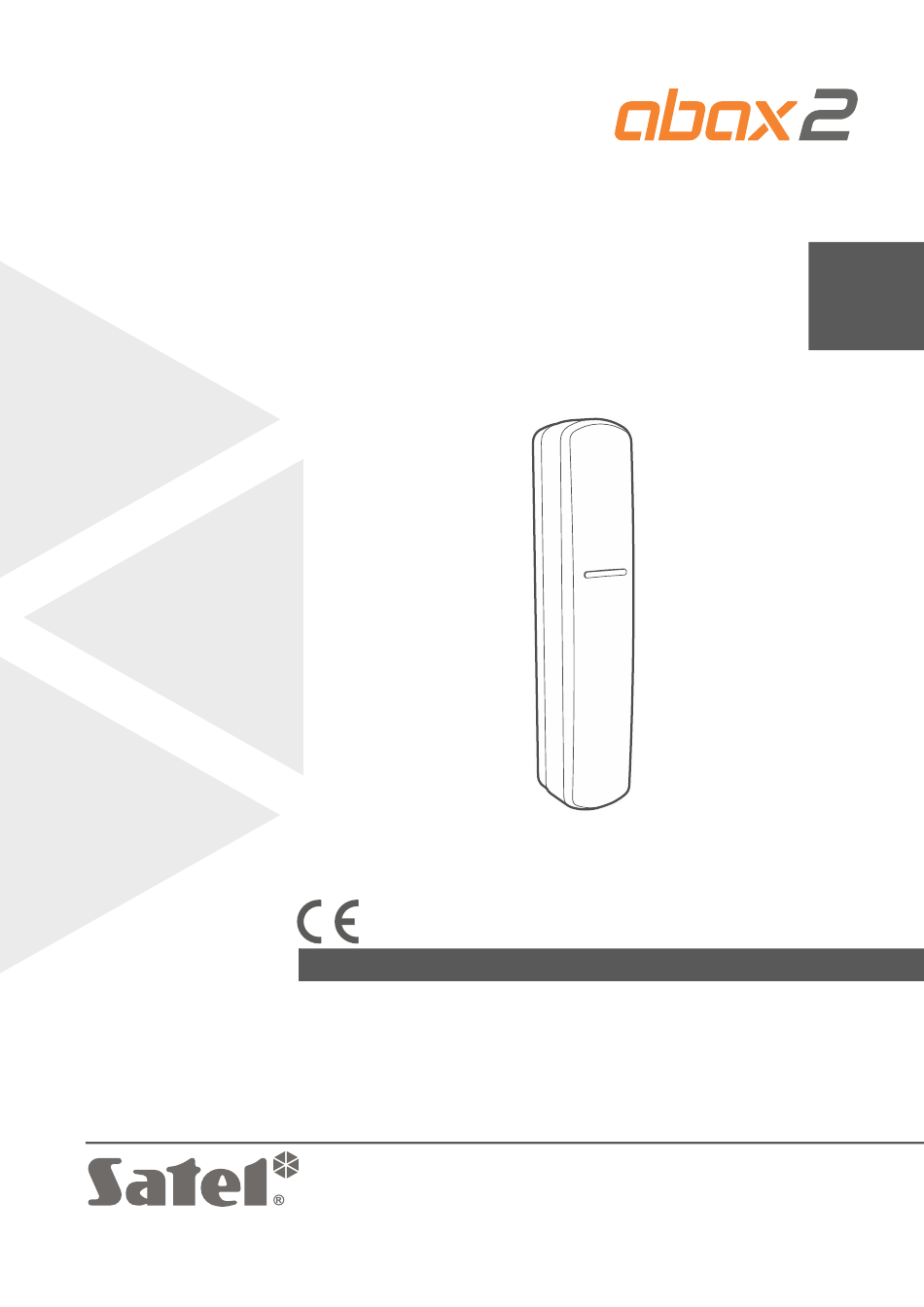

Wireless multipurpose detector
AXD-200
EN
Firmware version 1.05
axd-200_en 07/24
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXD-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Satel AXD-200

Summary of Contents for Satel AXD-200

  • Page 1 Wireless multipurpose detector AXD-200 Firmware version 1.05 axd-200_en 07/24 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
  • Page 2 13 August 2005). The device meets the technical regulations of the Eurasian Customs Union. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.

  • Page 3: Table Of Contents

    CONTENTS Features ........................... 3 Description ........................5 Radio communication ....................... 5 Alarms ..........................5 Operating modes ......................6 Energy saving mode (ECO) ....................6 Test mode ......................... 7 LED indicator ........................7 Battery status control ......................7 Electronics board ......................7 Installation ........................
  • Page 4 AXD-200 SATEL The AXD-200 detector is designed for operation within the ABAX 2 / ABAX two-way wireless system. It is a device that can be used as magnetic contact, shock, reorientation, temperature or flood detector. In the ABAX 2 system, it can also be used as a hardwired zone expander.

  • Page 5: Features

    SATEL AXD-200 1 Features • The type of device selected before or while adding the device to the system. • Encrypted two-way radio communication in the 866 MHz / 868 MHz / 915 MHz frequency band (AES standard for the ABAX 2 system).
  • Page 6 AXD-200 SATEL AVD-200 Shock detector and magnetic contact • Detects shocks and vibrations accompanying attempts to force open a door or window. • Detects open door, window, etc. • Input for connecting an NC type wired detector. • Capability to disable the internal magnetic sensor.

  • Page 7: Description

    SATEL AXD-200 • Occupies 2 positions on the device list (optionally 1 – only the roller shutter input is supported – terminal M2). 2 Description Radio communication The detector connects to the controller / control panel at regular time intervals to provide information about its state (periodical communication).

  • Page 8: Operating Modes

    AXD-200 SATEL ATD-200 The detector reports alarm when it registers a temperature higher / lower than the predefined threshold. The detector allows you to program two critical temperature thresholds: low (L) and high (H). The detector will alert of the threshold being exceeded if the temperature: •...

  • Page 9: Test Mode

    SATEL AXD-200 battery life can be increased as much as fourfold. The option is only available in the ABAX 2 system. The device with ECO option enabled meets requirements of the EN50131-2-6 standard for Grade 2. Test mode The test mode makes the device testing easier, because the LED indicator is enabled.

  • Page 10: Installation

    AXD-200 SATEL In the AVD-200 detector, connecting the M2 input to common ground disables the internal magnetic sensor. 3 Installation There is a danger of battery explosion when using a different battery than recommended by the manufacturer, or handling the battery improperly. Do not crush the battery, cut it or expose it to high temperatures (throw it into the fire, put it in the oven, etc.).
  • Page 11 SATEL AXD-200 2. Install the battery (Fig. 4). After installing the battery, you can select the device type (see “Selecting device type”). You can select the device type later while adding the device to the wireless system in the DLOADX / ABAX 2 Soft program.
  • Page 12 AXD-200 SATEL 5. Put the device at the place of its future installation. 6. Check the level of signal received from the device by the ABAX 2 / ABAX controller or the INTEGRA 128-WRL control panel. If the signal level is lower than 40%, select another place for installation.
  • Page 13 SATEL AXD-200 11. If detectors or flood probe are to be connected to the input terminals, screw the wires to the terminals. 12. Close the device enclosure. 13. In the case of the magnetic contact (AMD-200 / AMD-201 / AMD-202 / AVD-200), secure the magnet as shown in Fig.
  • Page 14 AXD-200 SATEL 16. Depending on the device type and configuration, make sure that the LED indicator comes • AMD-200: – after moving the magnet away (opening the window or door), – after violating the detector connected to the M1 input.

  • Page 15: Selecting Device Type

    SATEL AXD-200 • ATX-230: – after violating the detector connected to the M1 input, – after raising / lowering the roller shutters supervised by the roller shutter detector. 17. For the water flood detector, when the test is done, secure the FPX-1 probe as shown in Fig.

  • Page 16: Specifications

    AXD-200 SATEL 4 Specifications Operating frequency band....866 MHz / 868.0 MHz ÷ 868.6 MHz / 915 MHz – 928 MHz Radio communication range (in open area) ABAX 2 ACU-220 ....................up to 2000 m ACU-280 ....................up to 1200 m ABAX ......................
