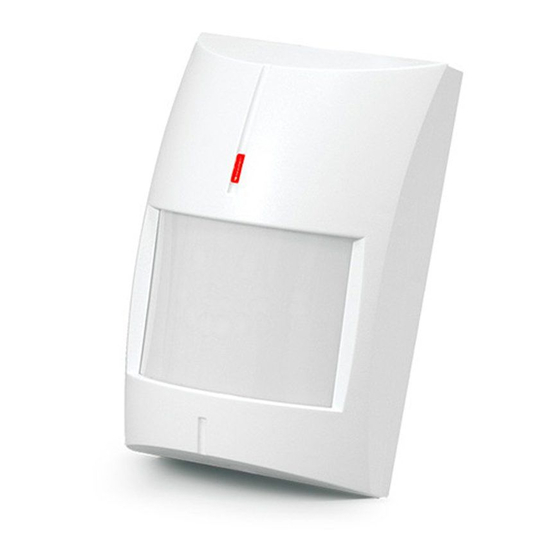

The APD-100 wireless passive infrared detector is designed for operation as part of
the ABAX two-way wireless system.
The signal from pyroelement is
processed digitally. The sensor is
characterized by a high interference
immunity. The sensor detection
sensitivity is controlled by way of
radio.
The LED indicator is "on" in the
T
only (see the ACU-
EST MODE
100 controller manual) to signal
communication with the controller
and violation (of the detector or
tamper contact).
As two tamper contacts are
installed
on
the
board, tamper information is sent
both
when
the
opened, and when the detector is
pulled off from the mounting surface.
Placed on the electronics board is a label with 7-digit serial number, which must be
indicated when registering the detector in the system.
The detector is supplied from a CR123A 3V lithium battery, which ensures approx.
two years' operation.
1. I
NSTALLATION
Prior to permanent mounting of the detector, you should check the level of
signal received from the detector by the ACU-100 controller and, if necessary,
change place of the installation so as to ensure optimal positioning in terms of
communication.
The battery should be installed inside the detector just before registration of the
detector in the controller. If unregistered or missing communication with the
controller, the detector consumes more energy, which affects the battery life.
The detector is designed for indoor installation. It can be attached to the wall either
directly or mounted on a holder included in the delivery set. As the tamper contact
reacts to the pull-off, it is recommended that the device be secured directly to the wall
(one of the screws should be used to fix the housing tamper element). Before the
housing is mounted, remove the electronics board and make suitable screw holes in
the rear panel of the housing. Be particularly careful so as not to contaminate or
damage the pyroelement during installation.
WIRELESS PASSIVE INFRARED
®
LED indicator
pyroelement
tamper contactt
electronics
housing
is
DETECTOR
APD-100
battery
housing
positioning
scale

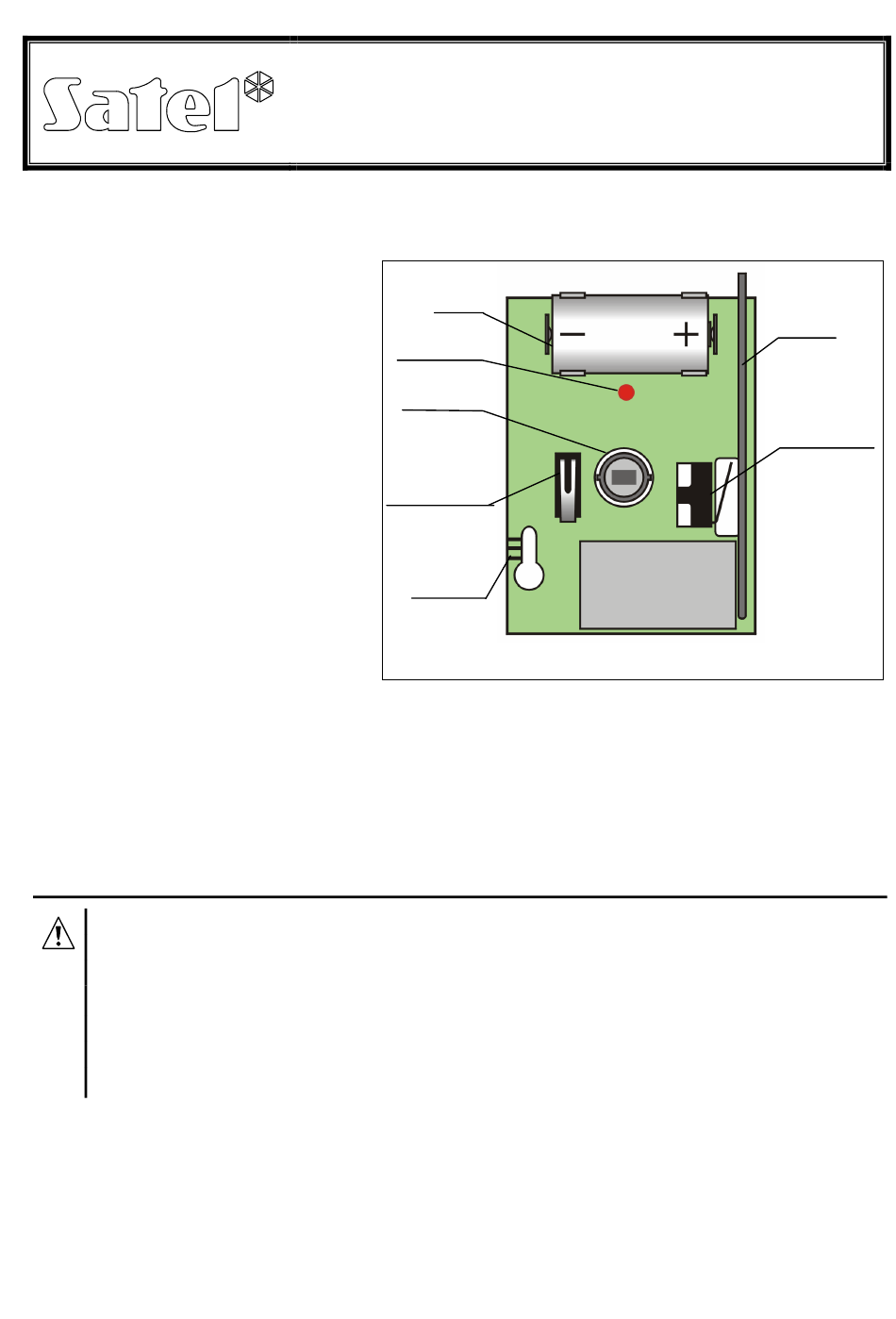

Fig. 1. Detector electronics board.
apd100_e 08/05
antenna
pull-off
tamper contact
