Environmental Class; Operating Temperature Range; Description; Radio Communication - Satel ASP-200 Manual

2
Environmental class according to EN50130-5 ....................................................................... IV
Operating temperature range............................................................................. -40C ...+55C
Maximum humidity ..........................................................................................................93±3%
Dimensions ................................................................................................. 148 x 254 x 64 mm
Weight............................................................................................................................... 860 g

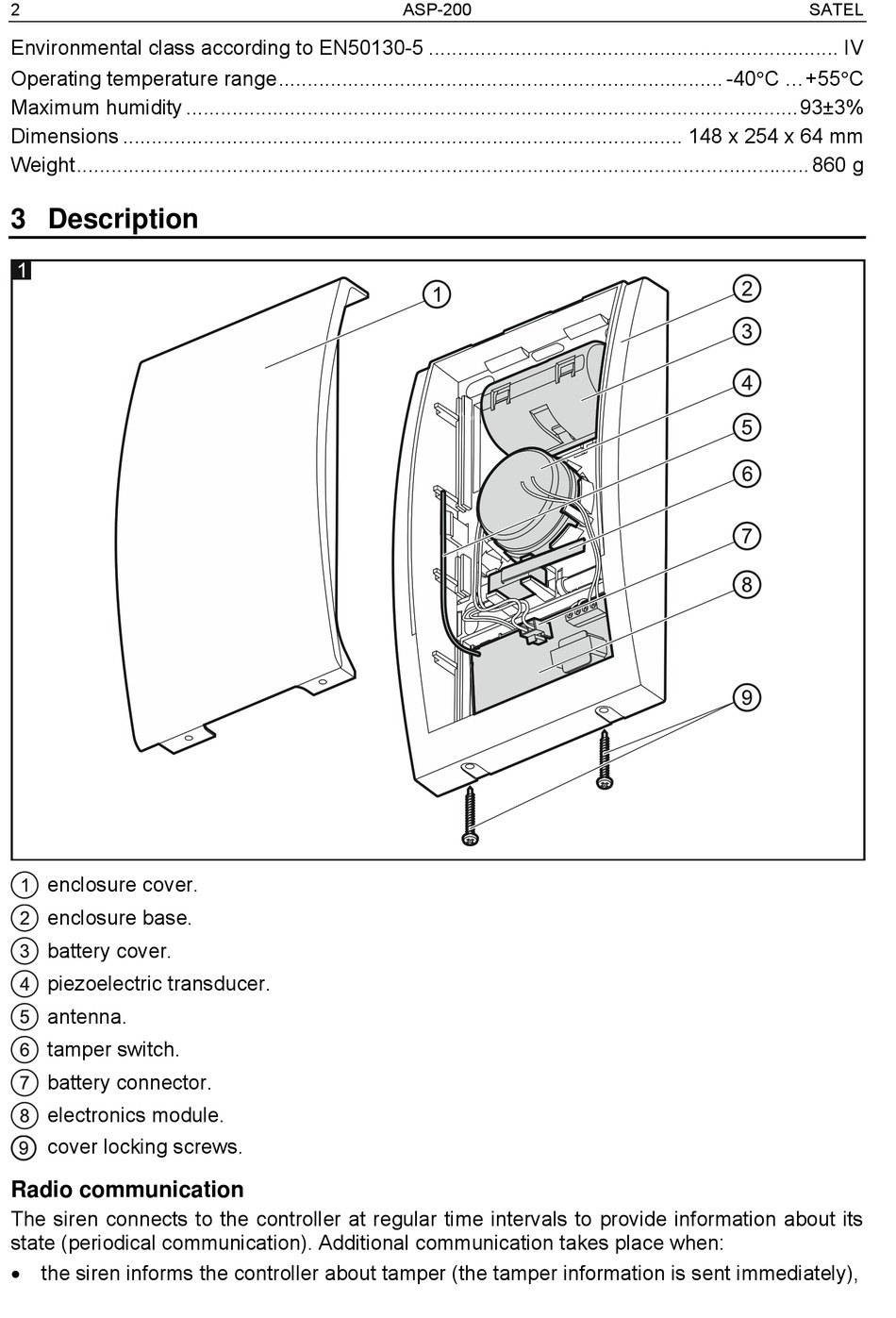

3 Description

enclosure cover.
enclosure base.
battery cover.
piezoelectric transducer.
antenna.
tamper switch.
battery connector.
electronics module.
cover locking screws.

Radio communication

The siren connects to the controller at regular time intervals to provide information about its
state (periodical communication). Additional communication takes place when:
 the siren informs the controller about tamper (the tamper information is sent immediately),
ASP-200 SATEL
