ASP-105
WIRELESSLY TRIGGERED
OUTDOOR SIREN

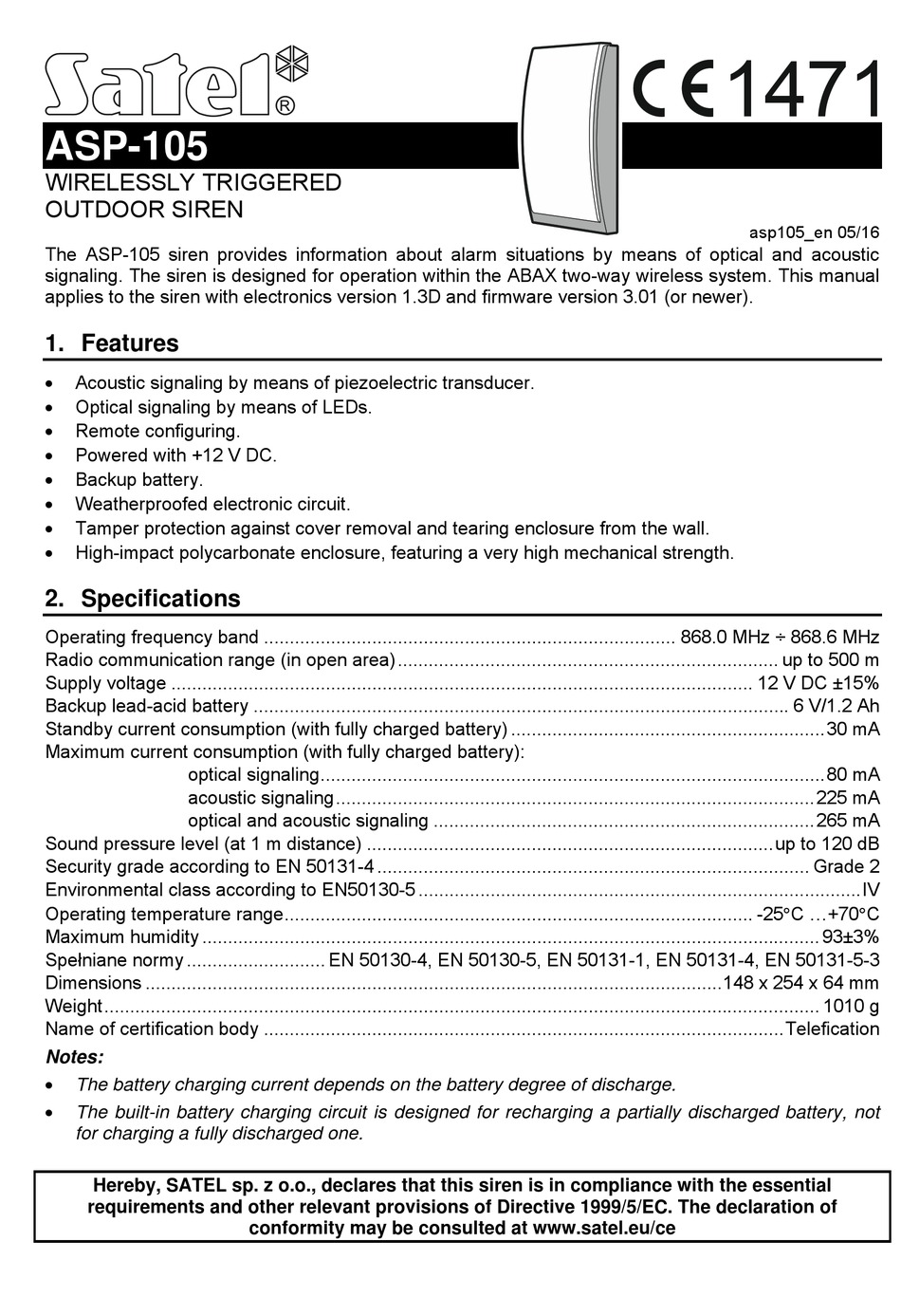

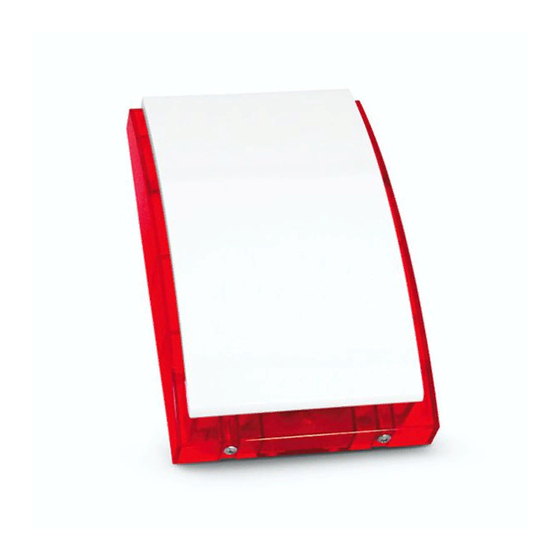

The ASP-105 siren provides information about alarm situations by means of optical and acoustic
signaling. The siren is designed for operation within the ABAX two-way wireless system. This manual
applies to the siren with electronics version 1.3D and firmware version 3.01 (or newer).

1. Features


Acoustic signaling by means of piezoelectric transducer.

Optical signaling by means of LEDs.

Remote configuring.

Powered with +12 V DC.

Backup battery.

Weatherproofed electronic circuit.

Tamper protection against cover removal and tearing enclosure from the wall.

High-impact polycarbonate enclosure, featuring a very high mechanical strength.

2. Specifications

Operating frequency band ................................................................................ 868.0 MHz ÷ 868.6 MHz
Radio communication range (in open area).......................................................................... up to 500 m
Supply voltage ................................................................................................................. 12 V DC ±15%
Backup lead-acid battery ........................................................................................................ 6 V/1.2 Ah
Standby current consumption (with fully charged battery) .............................................................30 mA
Maximum current consumption (with fully charged battery):
optical signaling..................................................................................................80 mA
acoustic signaling.............................................................................................225 mA
optical and acoustic signaling ..........................................................................265 mA
Sound pressure level (at 1 m distance) ...............................................................................up to 120 dB
Security grade according to EN 50131-4 .................................................................................... Grade 2
Environmental class according to EN50130-5 ......................................................................................IV
Operating temperature range........................................................................................... -25C ...+70C
Maximum humidity ........................................................................................................................ 93±3%
Spełniane normy ........................... EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-4, EN 50131-5-3
Dimensions ................................................................................................................148 x 254 x 64 mm
Weight........................................................................................................................................... 1010 g
Name of certification body .....................................................................................................Telefication
Notes:

The battery charging current depends on the battery degree of discharge.

The built-in battery charging circuit is designed for recharging a partially discharged battery, not
for charging a fully discharged one.
