WIRELESS OUTDOOR SIREN
ASP-105
®
asp105_e 08/05

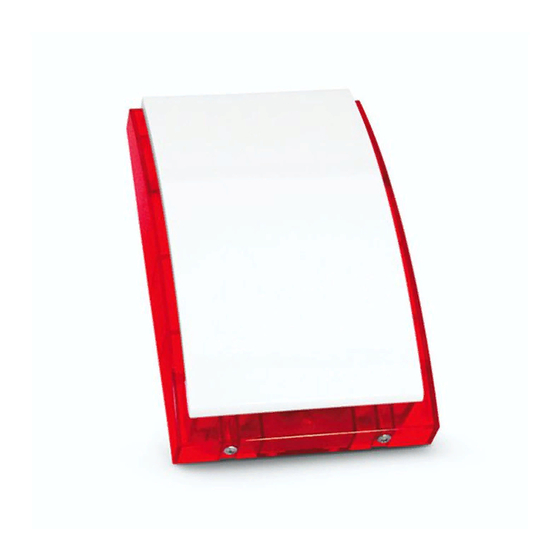

The ASP-105 wireless outdoor siren is designed for operation as part of the ABAX
two-way wireless system.
The optical and acoustic signaling are independently triggered by radio. A xenon lamp
(flash) is the source of light signal, while the sound signal is generated by means of
a piezoelectric transducer.
The ASP-105 outdoor siren is supplied with +12V (±15%) direct voltage. An
emergency power supply is the 6V 1.2Ah battery.
1. D
ESCRIPTION OF ELECTRONICS BOARD
Electronic circuit of the outdoor siren is made with the use of SMD technology and
impregnated against adverse effect of weather, which ensures a high reliability of the
device.
to piezoelectric
transducer
to battery
antenna
red
black
fuse 3.15A
LED indicator
xenon lamp

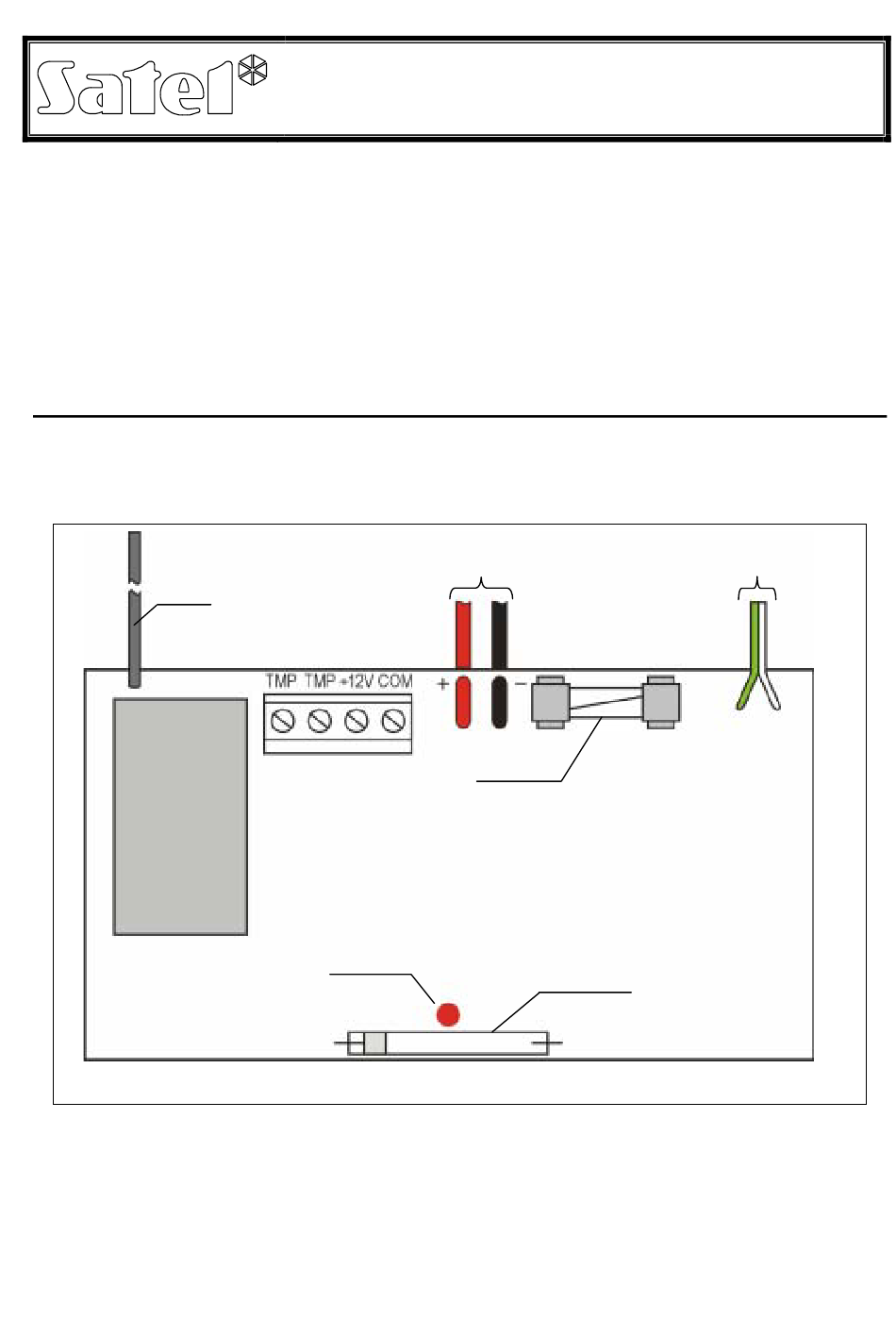

Fig. 1. Outdoor siren electronics board
A tamper contact, which reacts to opening or pull-off of the housing from the surface,
is connected to the TMP terminals. The terminals +12V and COM are used to connect
the outer power supply.
The 3.15A fuse protects the battery power supply circuit.
The LED indicator is "on" in the T
only (see the ACU-100 controller manual)
EST MODE
to signal communication with the controller.
