Satel ASP-205 User Manual

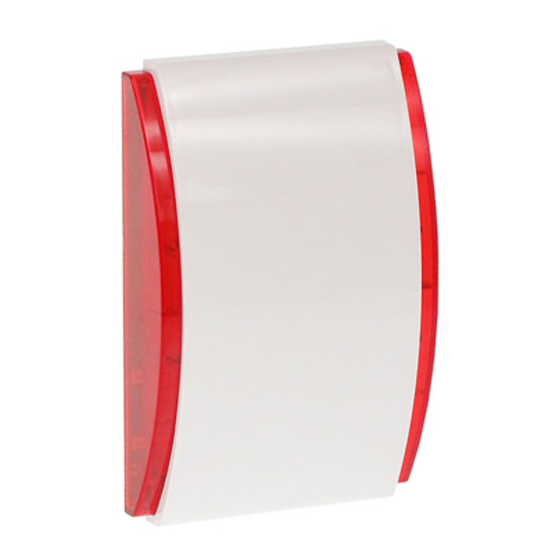

The ASP-205 wireless indoor siren is designed to work as part of the ABAX two-way
wireless system. It is supported by the ACU-100 controller with firmware version 1.05
or later.
The source of light in the siren are two sets of LED indicators. The sound signal is
generated by means of a piezoelectric transducer. The siren makes it possible to
program two different signaling modes for 2 alarm types (e.g. the burglary alarm and
the fire alarm), or the independent triggering of optical and acoustic signals. It takes
up two positions on the list of wireless devices supported by the ACU-100 controller.
The siren is power supplied from a CR123A 3V lithium battery, which ensures
approximately two-year operation (provided that the duration of signaling is up to
9 minutes per month).
The housing is made of PC LEXAN high-impact polycarbonate, owing to which it is
characterized by a very high mechanical strength. Design of the siren ensures a high
degree of tamper protection (against opening and/or pull-off from the mounting
surface).

1. Installation

Prior to permanently mounting the siren, check the level of signal
received from the siren by the ACU-100 controller and, if necessary,
change the place of installation so as to select the optimum location with
respect to communication.
Install the battery in the siren just before registering it in the controller. If
not registered or lacking communication with the controller, the siren will
consume much more energy which will adversely affect the battery life.
The ASP-205 siren can only be used inside the protected facilities.
In order to install the ASP-205 indoor siren in the ABAX system, do the following:
1. Remove the two lock screws from the siren cover and open the housing.
2. Install battery and add the siren to the wireless system (see ACU-100 controller
user manual). Placed on the piezoelectric transducer is a sticker with the 7-digit
serial number which is to be entered when registering the expander in the system.
3. Select the place where the ASP-205 siren is to be installed. Mount the siren on
a flat surface and as high as possible. This will minimize the risk of tamper and, at
the same time, will make it possible to obtain a better range of radio
communication and avoid the risk of the expander being accidentally covered by
personnel moving around the premises. It is advisable that a small gap be
maintained between the upper edge of the siren and the ceiling or any other
structure to be situated above the siren. Otherwise removal and/or replacement of
the cover will be impossible.
4. Check the level of signal received by the controller from the siren. Select another
place of installation, if necessary.
