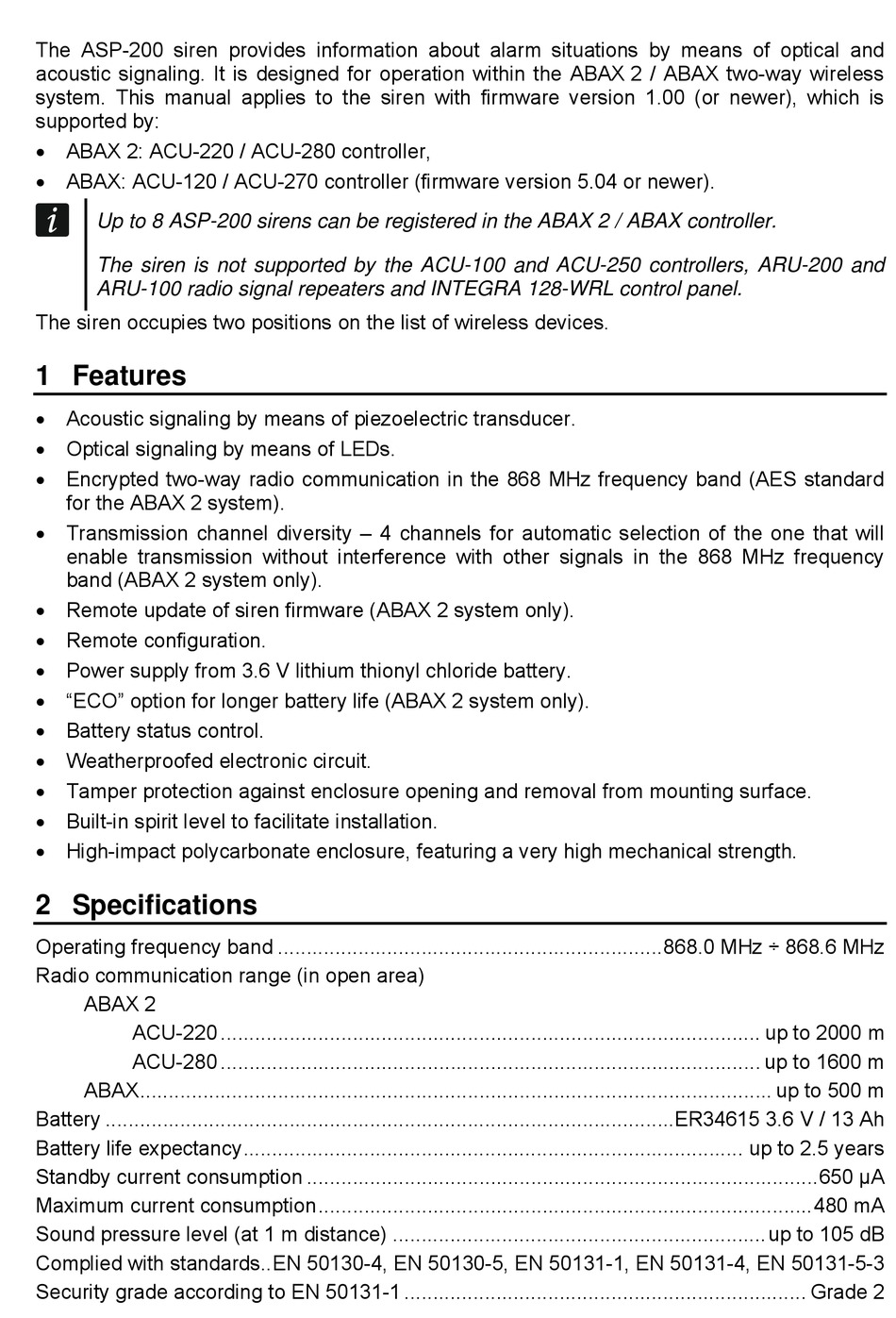

The ASP-200 siren provides information about alarm situations by means of optical and
acoustic signaling. It is designed for operation within the ABAX 2 / ABAX two-way wireless
system. This manual applies to the siren with firmware version 1.00 (or newer), which is
supported by:
 ABAX 2: ACU-220 / ACU-280 controller,
 ABAX: ACU-120 / ACU-270 controller (firmware version 5.04 or newer).
Up to 8 ASP-200 sirens can be registered in the ABAX 2 / ABAX controller.
The siren is not supported by the ACU-100 and ACU-250 controllers, ARU-200 and
ARU-100 radio signal repeaters and INTEGRA 128-WRL control panel.
The siren occupies two positions on the list of wireless devices.

1 Features

 Acoustic signaling by means of piezoelectric transducer.
 Optical signaling by means of LEDs.
 Encrypted two-way radio communication in the 868 MHz frequency band (AES standard
for the ABAX 2 system).
 Transmission channel diversity – 4 channels for automatic selection of the one that will
enable transmission without interference with other signals in the 868 MHz frequency
band (ABAX 2 system only).
 Remote update of siren firmware (ABAX 2 system only).
 Remote configuration.
 Power supply from 3.6 V lithium thionyl chloride battery.
 "ECO" option for longer battery life (ABAX 2 system only).
 Battery status control.
 Weatherproofed electronic circuit.
 Tamper protection against enclosure opening and removal from mounting surface.
 Built-in spirit level to facilitate installation.
 High-impact polycarbonate enclosure, featuring a very high mechanical strength.

2 Specifications

Operating frequency band ...................................................................868.0 MHz ÷ 868.6 MHz
Radio communication range (in open area)
ABAX 2
ACU-220 .............................................................................................. up to 2000 m
ACU-280 .............................................................................................. up to 1600 m
ABAX.............................................................................................................. up to 500 m
Battery ...................................................................................................ER34615 3.6 V / 13 Ah
Battery life expectancy....................................................................................... up to 2.5 years
Standby current consumption .........................................................................................650 µA
Maximum current consumption......................................................................................480 mA
Sound pressure level (at 1 m distance) .................................................................up to 105 dB
Complied with standards..EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-4, EN 50131-5-3
Security grade according to EN 50131-1 ...................................................................... Grade 2
