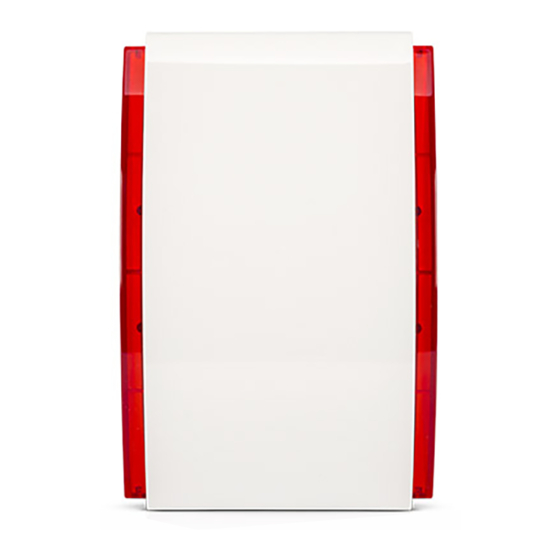

Abax 2 wireless indoor siren

Advertisement

Quick Links

ASP-215
Wireless indoor siren
Firmware version 1.00
asp-215_en 01/19
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASP-215 and is the answer not in the manual?

Questions and answers

Summary of Contents for Satel ASP-215

  • Page 1 ASP-215 Wireless indoor siren Firmware version 1.00 asp-215_en 01/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 The rating plate of the device is located on the enclosure base. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3: Specifications

    The ASP-215 siren provides information about alarm situations by means of optical and acoustic signaling. It is designed for operation within the ABAX 2 / ABAX two-way wireless system. This manual applies to the siren with firmware version 1.00 (or newer), which is supported by: ...
  • Page 4 ASP-215 SATEL Sound pressure level (at 1 m distance)..............up to 105 dB Complied with standards. EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-4, EN 50131-5-3 Security grade according to EN 50131-1 ..............Grade 2 Environmental class according to EN50130-5 .................II Operating temperature range................
  • Page 5 SATEL ASP-215 Radio communication The siren connects to the controller / control panel at regular time intervals to provide information about its state (periodical communication). Additional communication takes place when the siren informs the controller / control panel about tamper (the tamper information is sent immediately).
  • Page 6 ASP-215 SATEL Enclosure base Explanations for Fig. 2: mounting hole. mounting hole for tamper protection. 4 Installation and start-up Never shorten or deform the antenna. There is a danger of battery explosion when using a different battery than recommended by the manufacturer, or handling the battery improperly.
  • Page 7 SATEL ASP-215 Simultaneous operation of the siren by the ABAX 2 and ABAX controller / INTEGRA 128-WRL alarm control panel is not possible. 5. Replace the siren cover. 6. Place the siren in the location intended for its installation. 7. Check the level of signal received from the siren by the ABAX 2 / ABAX controller or the INTEGRA 128-WRL control panel.
