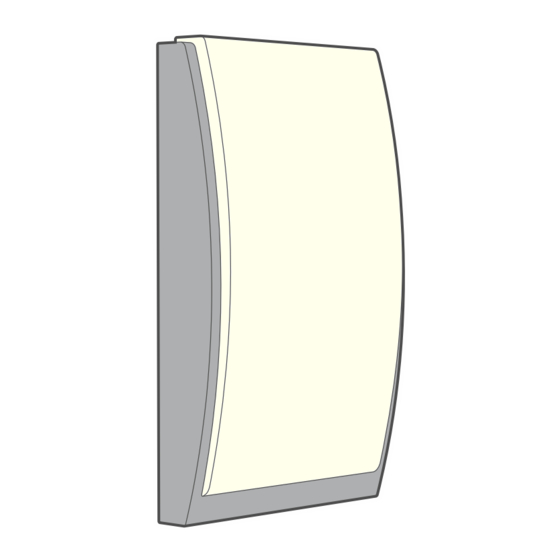

- Page 1 Wireless outdoor siren ASP-201 Firmware version 1.00 asp-201_en 12/22 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
- Page 2 13 August 2005). The device meets the technical regulations of the Eurasian Customs Union. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
-
Page 3: Table Of Contents
CONTENTS Features ........................... 2 Specifications ........................2 Description ........................3 Radio communication ....................... 3 Triggering the signaling ....................4 Energy saving mode (ECO) ....................4 Power supply ........................5 Enclosure base ......................... 5 Installation and start-up ....................5 Battery replacement ......................6... -
Page 4: Features
ABAX: ACU-120 / ACU-270 controller (firmware version 5.04 or newer). Up to 8 ASP-200 / ASP-201 sirens can be registered in the ABAX 2 / ABAX controller. The siren is not supported by the ACU-100 and ACU-250 controllers, ARU-200 and ARU-100 radio signal repeaters and INTEGRA 128-WRL control panel. -
Page 5: Description
SATEL ASP-201 Environmental class according to EN50130-5 ..............IIIA Operating temperature range ................-40C …+55C Maximum humidity ......................93±3% Dimensions ....................148 x 254 x 64 mm Weight ..........................762 g 3 Description enclosure cover. enclosure base. battery holder. sounder. -
Page 6: Triggering The Signaling
The siren connects to the controller every 15 minutes. If any value different from 0 is programmed for the “Filter” parameter for the ASP-201 siren, the lack of presence will be reported if no transmission from the siren is received within one hour. -
Page 7: Power Supply
Power supply The siren is powered from a 3.6 V lithium thionyl chloride battery. It is a high-current battery, characterized by high capacity. The battery is offered by SATEL. The siren provides information about battery condition during each transmission. If you want to replace the low battery with a fresh one, follow the procedure described in the “Battery replacement”... -
Page 8: Battery Replacement
ASP-201 SATEL 1. Remove the cover locking screws. 2. Lift up the enclosure cover by approx. 60º and remove it (Fig. 3). 3. Install the battery. The leftmost LED will start flashing every second to indicate that the battery initialization procedure has begun. Given the specific character of the battery, it must be properly initialized to reach the required power supply parameters. - Page 9 1. Start the service mode in the control panel (if the ABAX 2 / ABAX controller is connected to a SATEL alarm control panel) or the test mode in the ABAX 2 / ABAX system. 2. After the leftmost LED on the siren starts flashing every 3 seconds, you can open the siren enclosure.
