ASP-105
WIRELESSLY TRIGGERED OUTDOOR SIREN

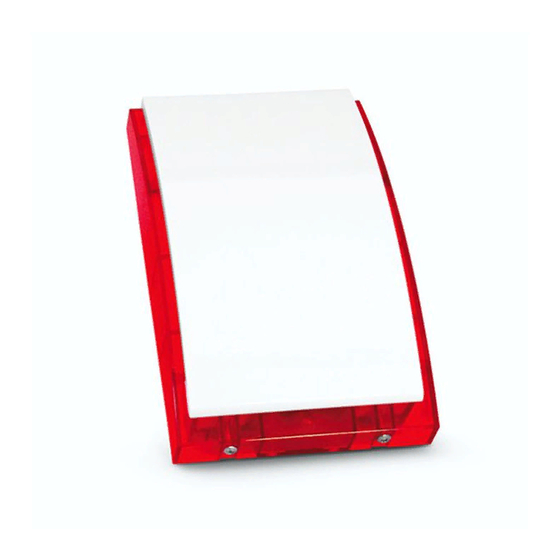

The ASP-105 outdoor siren is designed for operation as part of the ABAX two-way wireless
system. It is available in three versions which vary in the color of their optical signal (red –
ASP-105 R, blue – ASP-105 BL, and orange – ASP-105 O). This manual applies to the siren
with electronics version 1.3D and firmware version 3.00 (or newer).
1. O
PERATION
The siren requires +12 V DC (±15%) voltage supply. The 6 V 1.2 Ah battery is used as an
emergency source of power. The siren informs the controller/control panel about external
power loss and low battery (voltage drop across battery terminals below 5.7 V). The battery is
tested only when the siren is powered from the battery, so its status must be checked when
maintenance work is being performed.
Acoustic and optical signaling is triggered independently, upon receiving appropriate
command by radio. The optical signaling lasts until cleared. Maximum duration of the
acoustic signaling is remotely programmable within the range from 1 to 9 minutes.
During programming, you can select one of the four tone types (see Table 1).
Two sound frequencies (1450 Hz/2000 Hz) alternating during 1
1
second period
Sound with a smoothly rising and falling frequency (1450 Hz –
2
2000 Hz – 1450 Hz) during 1 second period
Sound with rising frequency (from 1450 Hz to 2000 Hz) during 1
3
second period
Sound with falling frequency (from 1450 Hz to 2000 Hz) during 1
4
second period
Opening the enclosure or tearing it off from the mounting surface will trigger the tamper
alarm. It will sound for the maximum period preprogrammed for acoustic signaling.
Information about the tamper alarm will be sent to the controller/control panel.
Note: Signaling the tamper alarm will be blocked:
– on entering the test mode,
– on entering the service mode, in case of interaction with an INTEGRA or VERSA
control panel,
– for 40 seconds after the siren power-up.
The command to block/unblock the tamper alarm signaling as a result of
entering/exiting the service mode or the test mode will be sent during the polling
period.
®

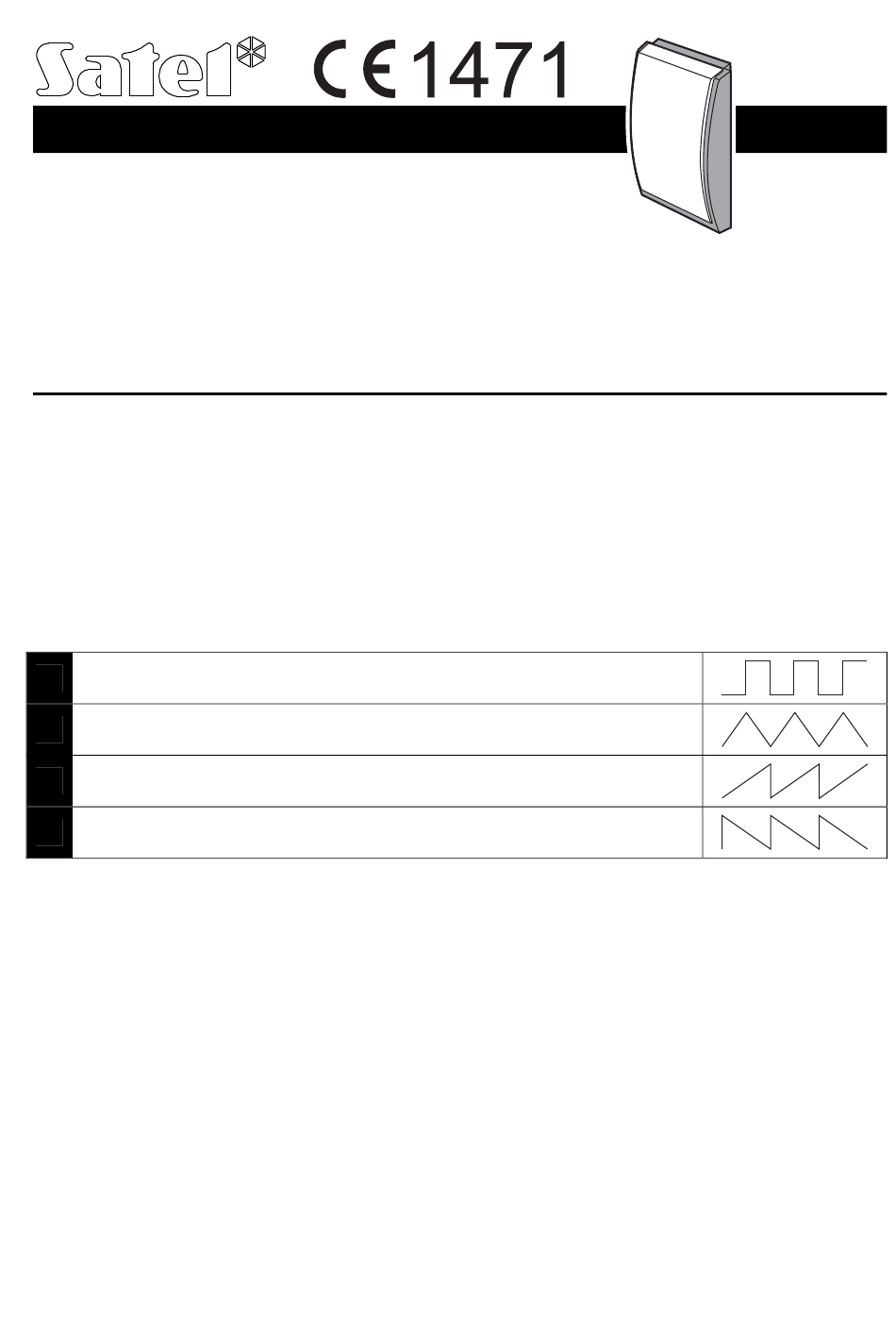

Table 1. Available tone types.
asp105_en 01/12
