Satel INT-VMG Manual

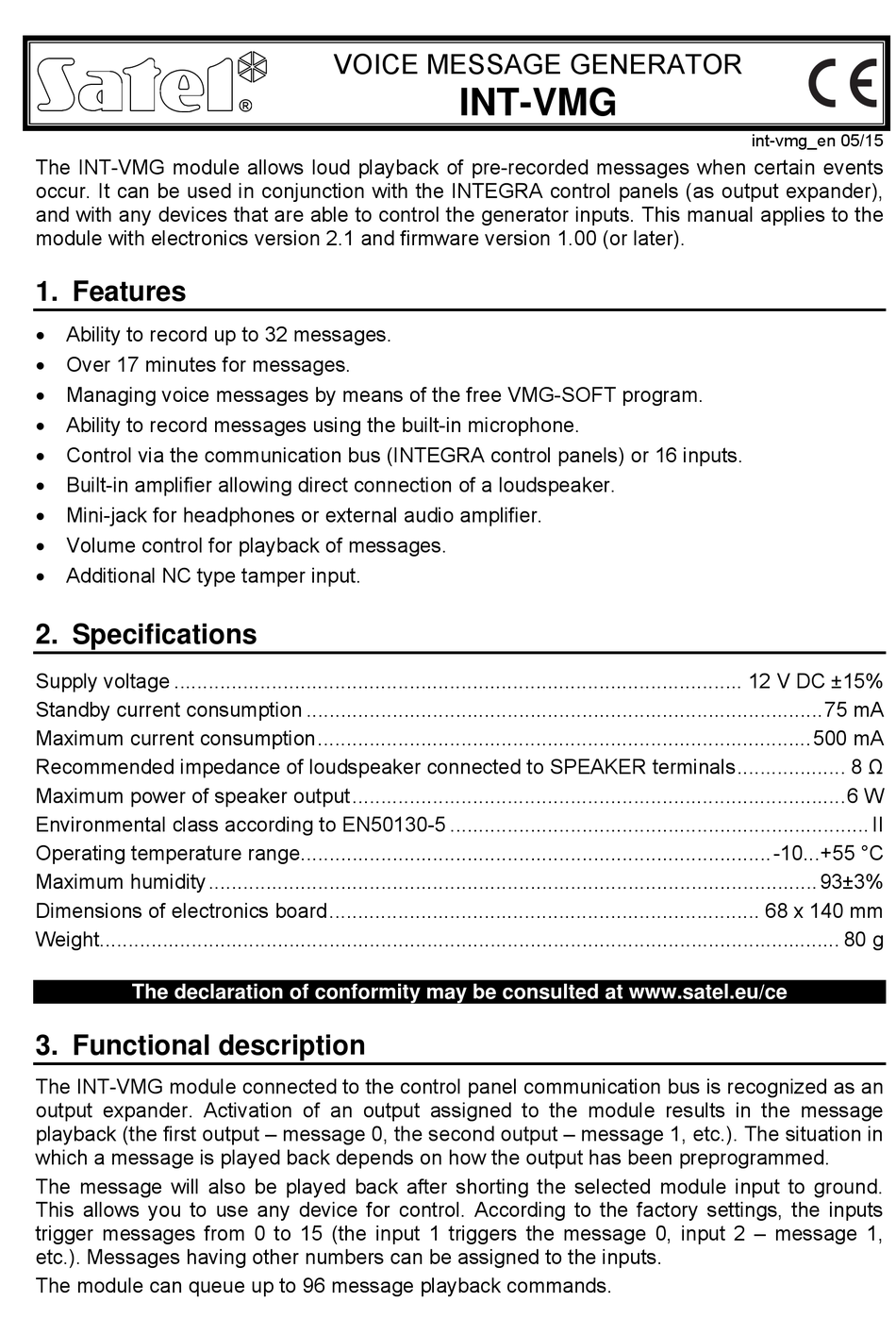

VOICE MESSAGE GENERATOR
INT-VMG
®
int-vmg_en 05/15

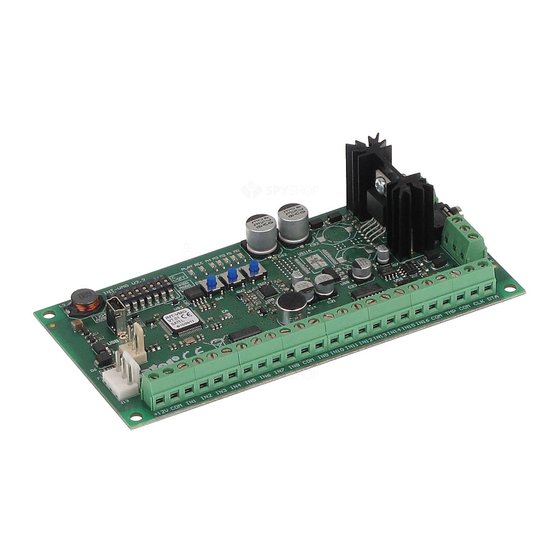

The INT-VMG module allows loud playback of pre-recorded messages when certain events
occur. It can be used in conjunction with the INTEGRA control panels (as output expander),
and with any devices that are able to control the generator inputs. This manual applies to the
module with electronics version 2.1 and firmware version 1.00 (or later).

1. Features

 Ability to record up to 32 messages.
 Over 17 minutes for messages.
 Managing voice messages by means of the free VMG-SOFT program.
 Ability to record messages using the built-in microphone.
 Control via the communication bus (INTEGRA control panels) or 16 inputs.
 Built-in amplifier allowing direct connection of a loudspeaker.
 Mini-jack for headphones or external audio amplifier.
 Volume control for playback of messages.
 Additional NC type tamper input.

2. Specifications

Supply voltage ................................................................................................... 12 V DC ±15%
Standby current consumption ..........................................................................................75 mA
Maximum current consumption......................................................................................500 mA
Recommended impedance of loudspeaker connected to SPEAKER terminals................... 8 Ω
Maximum power of speaker output......................................................................................6 W
Environmental class according to EN50130-5 ......................................................................... II
Operating temperature range..................................................................................-10...+55 °C
Maximum humidity .......................................................................................................... 93±3%
Dimensions of electronics board........................................................................... 68 x 140 mm
Weight................................................................................................................................. 80 g
The declaration of conformity may be consulted at www.satel.eu/ce

3. Functional description

The INT-VMG module connected to the control panel communication bus is recognized as an
output expander. Activation of an output assigned to the module results in the message
playback (the first output – message 0, the second output – message 1, etc.). The situation in
which a message is played back depends on how the output has been preprogrammed.
The message will also be played back after shorting the selected module input to ground.
This allows you to use any device for control. According to the factory settings, the inputs
trigger messages from 0 to 15 (the input 1 triggers the message 0, input 2 – message 1,
etc.). Messages having other numbers can be assigned to the inputs.
The module can queue up to 96 message playback commands.
