INT-KNX-2
KNX INTEGRATION MODULE
The INT-KNX-2 module integrates the INTEGRA / INTEGRA Plus alarm system with the KNX
system. Using the module, the control panel can control the actuators connected to the KNX
bus, and the bus devices can control the alarm system. This manual applies to the module
with firmware version 2.00, which is supported by the INTEGRA and INTEGRA Plus control
panels with firmware version 1.13 of 2015-03-11 (or newer).

1 Features

 64 KNX communication objects.
 Expansion of the alarm system by adding virtual outputs dedicated to control the KNX
devices.
 The number of virtual outputs determined by means of DIP switches (from 8 to 64 – a
multiple of 8).
 Capability to control the KNX devices with macro commands.
 Alarm system control by means of KNX devices (via the alarm system zones).
 Bus Coupling Unit for direct connection of the module to the KNX bus.
 NC type tamper input.
 Connectable to RS-485 bus (firmware update through the bus).

2 Specifications

Supply voltage ................................................................................................... 12 V DC ±15%
Standby current consumption ..........................................................................................43 mA
Maximum current consumption........................................................................................50 mA
Environmental class according to EN50130-5 ......................................................................... II
Operating temperature range.............................................................................-10 °C...+55 °C
Maximum humidity .......................................................................................................... 93±3%
Dimensions ............................................................................................................. 80 x 57 mm
Weight................................................................................................................................. 32 g
The declaration of conformity may be consulted at www.satel.eu/ce
int-knx-2_en 03/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INT-KNX-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Satel INT-KNX-2

Summary of Contents for Satel INT-KNX-2

  • Page 1: Specifications

    KNX INTEGRATION MODULE int-knx-2_en 03/15 The INT-KNX-2 module integrates the INTEGRA / INTEGRA Plus alarm system with the KNX system. Using the module, the control panel can control the actuators connected to the KNX bus, and the bus devices can control the alarm system. This manual applies to the module with firmware version 2.00, which is supported by the INTEGRA and INTEGRA Plus control...

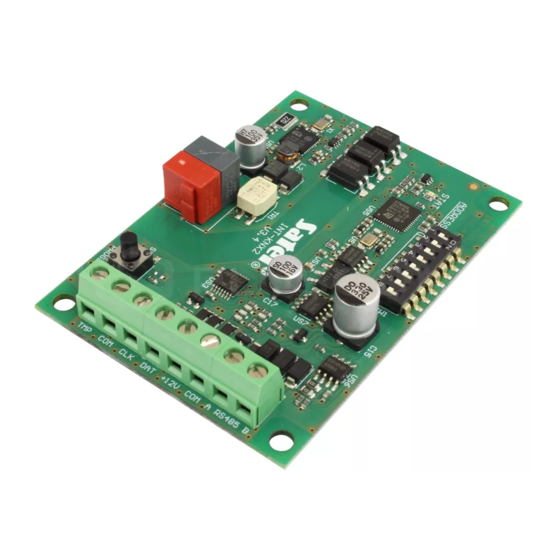

  • Page 2 INT-KNX-2 SATEL 3 Electronics board Fig. 1. Module electronics board. Explanations to Fig. 1: DIP-switches (see: DIP- SWITCHES STAT LED indicating the status of communication with the control panel: ON – no communication with the control panel, blinking – communication with the control panel OK.
  • Page 3 SATEL INT-KNX-2 The DIP-switches 1-5 are used for address setting. The sum of numerical values assigned to switches 1-5 means the address set on the module. The address must be different from that on the other modules connected to the communication bus of the control panel.
  • Page 4 7.1 Description of parameters and options Name – individual name of the device (up to 16 characters). Physical address – address of the INT-KNX-2 module. KNX comm. delay after reset – the time that must elapse after starting the module, before the module begins sending KNX telegrams.
  • Page 5 Tamper signaled in part. – partition where alarm will be triggered in the event of module tamper. Fig. 3. D X program: configuring the INT-KNX-2 module. LOAD 7.1.1 Communication objects Communication objects are presented in the table. Click on an object to configure its settings in the panel on the right.
  • Page 6 The commands may include instructions to change the value of INT-KNX-2 communication objects. Macro commands are offered by some of the SATEL devices (e.g. INT-KSG, INT-TSG and INT-TSI keypads).
  • Page 7 Using the RS-485 bus, connect the module to the ACCO-USB converter, and then connect the converter to the computer (see: ACCO-USB converter manual). You can find a program for updating the module firmware and a detailed description of the firmware update procedure on the www.satel.eu website.
  • Page 8 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. + 48 58 320 94 00 info@satel.pl www.satel.eu...
