Satel INT-VG Quick Start Manual

The INT-VG module interfaces with the INTEGRA and VERSA control panels, enabling the
implementation of voice messaging (it replaces the CA-64 SM voice synthesizer expander). In the
case of VERSA control panels with firmware version 1.02 or later, the module provides the telephone
call answering and telephone control features.

1. Features

•
Voice menu for easy operation of the control panel by telephone (DTMF).
•
Option to define own names for different system components (partitions, zones, outputs, etc.).
•
Nearly 13 minutes for messages to be used in the voice menu.
•
More than 4 minutes for 16 messages for telephone notification (the message may take up to 16
seconds).
•
Control of the security system by means of macro commands to trigger a number of different
functions in the control panel.
•
Managing voice messages and defining macro commands by means of the free VG-SOFT
program.
•
Option to record messages for notification with a built-in microphone.

2. Electronics board

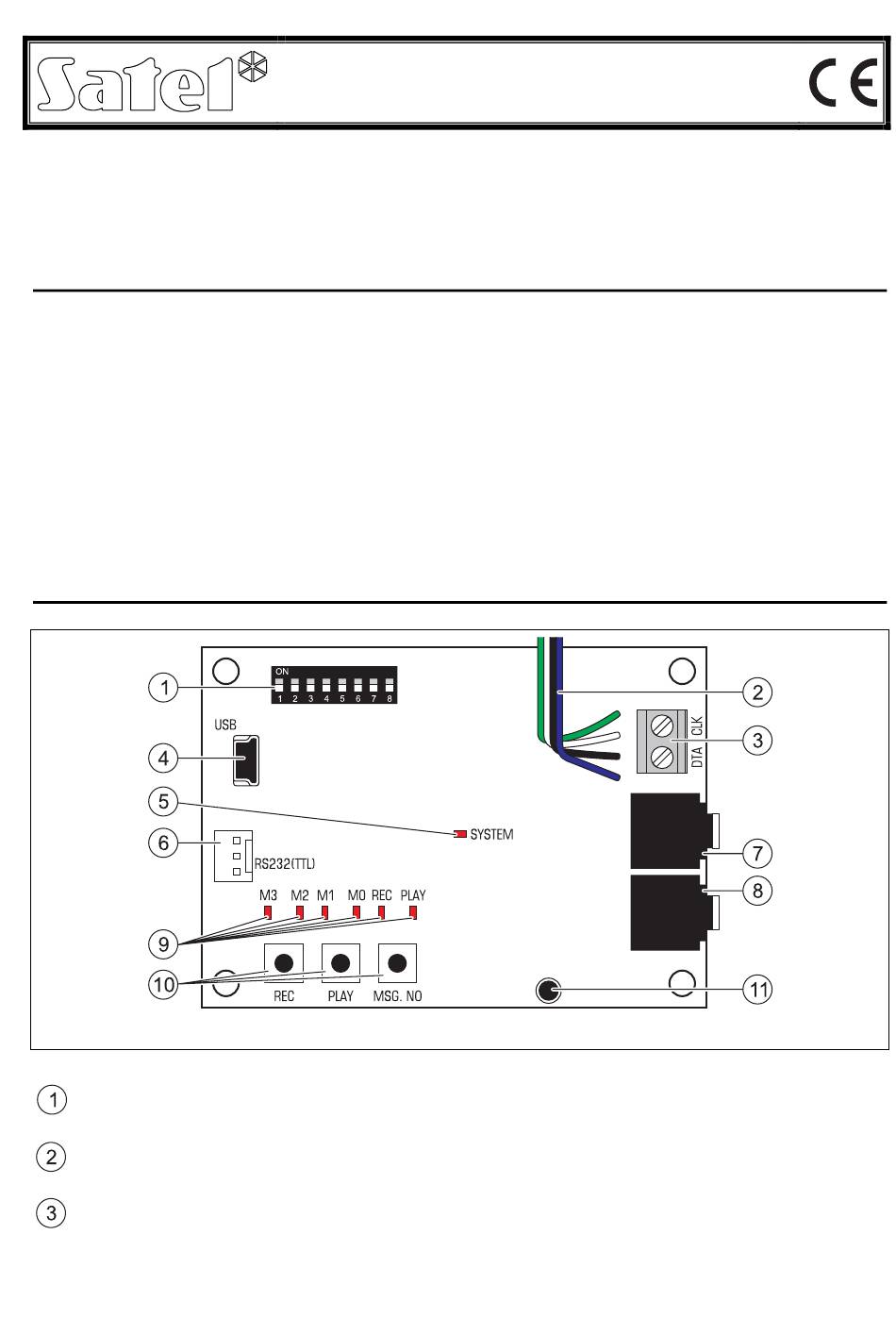

Explanations for Fig. 1:
a set of DIP-switches for setting individual address of the module and for disabling the recording
of messages by means of built-in microphone (see section DIP-
wires to the PIN5 type plug used for connecting the module to a dedicated socket on the control
panel electronics board (socket to connect a voice synthesizer).
terminals for connecting the module to the control panel communication bus:
CLK - clock;
DTA - data.
®

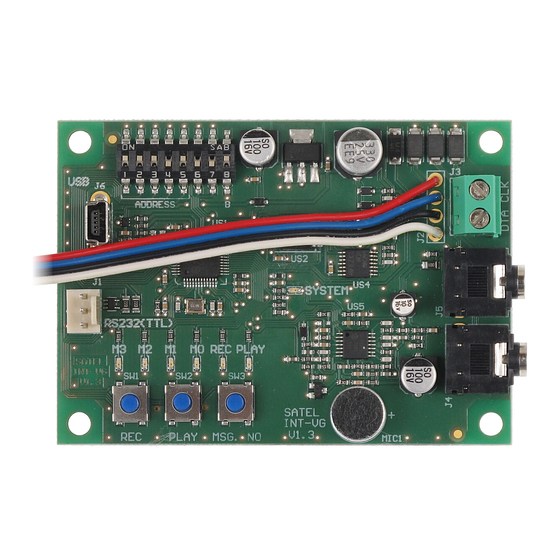

Fig. 1. Module electronics board.
VOICE MODULE
INT-VG
int-vg_en 05/11
).
SWITCHES
