Satel INT-GSM LTE Manual

Lte communication module
Hide thumbs

Advertisement

Quick Links

Download this manual
INT-GSM LTE
LTE communication module
Firmware version 2.03
int-gsm_lte_en 05/22
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

loading
Need help?

Need help?

Do you have a question about the INT-GSM LTE and is the answer not in the manual?

Questions and answers

Related Manuals for Satel INT-GSM LTE

Summary of Contents for Satel INT-GSM LTE

  • Page 1 INT-GSM LTE LTE communication module Firmware version 2.03 int-gsm_lte_en 05/22 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 The name plate of the device is located on the enclosure base. FreeRTOS is used in this device (www.freertos.org). SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3 Changes made to the firmware version 2.02 Cellular phone Cellular signal jamming detection. RS-485 bus Faster data transmission when working with the ETHM-1 Plus module, firmware version 2.08 of 24.09.2021 or newer.

  • Page 4: Table Of Contents

    Initiating connection by SMS message .................... 38 6.1.3 Initiating connection from the keypad (by the control panel)............38 6.1.4 Establishing connection via the SATEL server ................39 INTEGRA CONTROL application ..................39 6.2.1 Configuring the settings in INTEGRA CONTROL application (Android) .......... 39 6.2.2...

  • Page 5: Introduction

    INT-GSM LTE 1. Introduction This manual describes the INT-GSM LTE module and how it should be installed and configured. The module is supported by the INTEGRA / INTEGRA Plus alarm control panels with firmware version 1.19 or newer. The module can be connected directly to the control panel or to the ETHM-1 Plus module (firmware version 2.07 or newer required) which is...
  • Page 6  Dual Path Reporting compliant with EN 50136. Electronics board  RS-485 port to enable connection of INT-GSM LTE module to ETHM-1 Plus module.  Communication bus for connection of INT-GSM LTE module to keypad bus of the alarm control panel.  RS-232 port to allow: ...
  • Page 7 SATEL INT-GSM LTE Fig. 1. Module connected to the INTEGRA / INTEGRA Plus alarm control panel. Fig. 2. Module connected to the ETHM-1 Plus Ethernet module.

  • Page 8: Description Of The Module

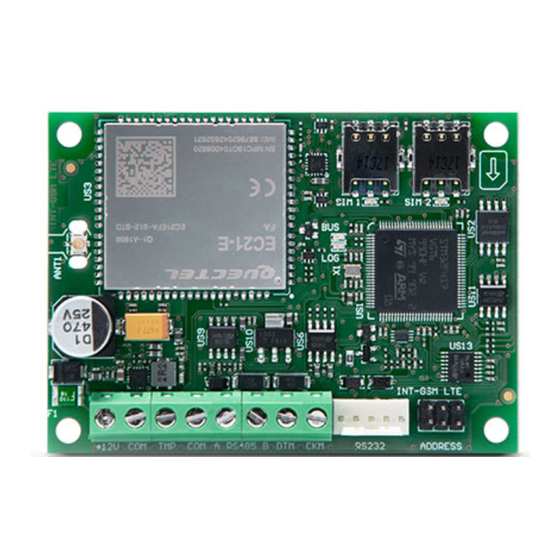

    SATEL 3. Description of the module Electronics board Fig. 3. INT-GSM LTE module electronics board. antenna cable (the antenna is delivered with the module). slot in which the first SIM card is to be installed. slot in which the second SIM card is to be installed.

  • Page 9: Installation

    Setting the address is required if the module will be connected to the keypad bus of the alarm control panel. If the INT-GSM LTE module will be connected to the ETHM-1 Plus module, you do not have to set the address.

  • Page 10: Installation Of Antenna

    (the control panel does not support devices with the same address). Installation of antenna The INT-GSM LTE module is delivered with an antenna. The antenna can be replaced with another antenna mounted on the enclosure or at some distance from it. If this is the case, you will need the IPX-SMA adapter.

  • Page 11: Connecting To The Ethm-1 Plus Module

    SATEL INT-GSM LTE Fig. 5. Wiring diagram of the cable connecting RS-232 ports of INT-GSM LTE module and INTEGRA / INTEGRA Plus control panel with RJ type connector socket. Fig. 6. Wiring diagram of the cable connecting RS-232 ports of INT-GSM LTE module and INTEGRA control panel with PIN5 connector socket.

  • Page 12: Starting The Module

    INT-GSM LTE SATEL If the module is to be used in conjunction with the ETHM-1 Plus module (firmware version 2.07 or newer required), connections between the modules and the control panel must be made as shown in Fig. 7. Starting the module 1.

  • Page 13: Int-Gsm

    INT-GSM LTE INT-GSM This section describes settings of the INT-GSM LTE module connected directly to the alarm control panel. Description of the settings of the INT-GSM LTE module connected to the ETHM-1 Plus module you will find in the ETHM-1 Plus module manual.
  • Page 14 INTEGRA CONTROL [Connect GSM] – if this option is enabled, connection can be established between the INTEGRA CONTROL application and the alarm control panel via the module. The connection is set up by the SATEL server. The option is not available when the “INTEGRUM (client)” option is enabled.

  • Page 15: Int-Gsm Functions

    SATEL server. You can read the QR code by using a mobile device or export to the file and transmit to the users. The QR code facilitates configuring the INTEGRA CONTROL application settings.
  • Page 16 INT-GSM LTE SATEL GPRS APN – access point name for Internet connection. Username – user name for Internet connection. Password – password for Internet connection. DNS server – IP address of DNS server to be used by the module. If the address has been saved by the operator to the SIM card memory, you do not have to program it.
  • Page 17 Do not report SATEL server trouble when LAN replaced by GSM – the option is available if the INT-GSM LTE module is connected to the ETHM-1 Plus module. If this option is enabled, loss of connection with the SATEL server via the Ethernet network will not be reported, when the connection has been successfully established via the INT-GSM LTE module (cellular data transmission).
  • Page 18 Do not report SMTP mail server trouble when LAN replaced by GSM – the option is available if the INT-GSM LTE module is connected to the ETHM-1 Plus module. If this option is enabled, loss of connection with the SMTP server via the Ethernet network will not be reported, when the connection has been successfully established via the INT-GSM LTE module (cellular data transmission).

  • Page 19: Pre-Paid Support

    SATEL INT-GSM LTE 5.2.2 Pre-paid support SIM 1 / SIM 2 USSD-check balance – the USSD code which is used to check balance of the SIM card account. If the code has been programmed, the module can check the SIM card account balance.

  • Page 20: Sms Messaging / Clip Control

    INT-GSM LTE SATEL 5.2.3 SMS messaging / CLIP control You can program 16 telephone numbers for messaging purposes. The content of SMS messages is generated automatically, based on descriptions from the control panel event log. CLIP messaging means that the module will call a given telephone number when an event occurs.

  • Page 21: Sms Control

    SATEL INT-GSM LTE The telephone numbers programmed in the lines from T1 to T16 are not treated by the module as any numbers. Function – the function to be run by CLIP. Enter the function number or click on the button to select the function from the list.
  • Page 22 INT-GSM LTE SATEL Several control commands may be included in one SMS message (should be separated by spaces). The control command may be just a fragment of the SMS message. This makes it is possible to write the control command, including the comments, to the telephone memory and send the whole to the module.

  • Page 23: Reporting

     cellular data,  SMS messages (no acknowledgement of event code receipt). Using the INT-GSM LTE module in conjunction with the ETHM-1 Plus module makes it possible to implement the Dual Path Reporting in accordance with EN 50136. For information about how to configure the dual path reporting, please refer to the control panel programming manuals.

  • Page 24: Remote Firmware Update

    Remote update of the module firmware is made possible by the “UpServ” update server, which is included in the SATEL product portfolio. There are two ways to initiate the update.  by using SMS message – only the INT-GSM LTE firmware will be updated.
  • Page 25  INTEGRA control panel – only if the DLOADX program and the control panel are connected via the ETHM-1 Plus or INT-GSM LTE module,  ETHM-1 Plus module – only if the INT-GSM LTE module is connected to the ETHM-1 Plus module (module identified as “ETHM+GSM”).
  • Page 26 ETHM-1 Plus – if this option is enabled, the ETHM-1 Plus module firmware will be updated (the INT-GSM LTE module has to be connected to the ETHM-1 Plus module). INT-GSM – if this option is enabled, the INT-GSM LTE module firmware will be updated. Download firmware – click to download new version of firmware.

  • Page 27: User Functions Definition

    SATEL INT-GSM LTE User functions definition Fig. 16. DLOADX program: “User functions definition” tab. If the INTEGRA CONTROL application is used in the mobile device, the virtual keypad allows you to quickly start user functions after entering the code and pressing an arrow key.

  • Page 28: Macro Commands

    “GUARDX/ INTEGRA CONTROL” item “Macro Commands” tab). Defined macro commands can be automatically downloaded by the INTEGRA CONTROL application after establishing connection with the INT-GSM LTE module. Macro commands can be loaded into the application without establishing connection with the...

  • Page 29: Groups

    This method allows you to use macro commands defined for the e.g. INT-TSG keypad in the INTEGRA CONTROL application. Instead of a file with macro commands defined for the INT-GSM LTE module, you can load a file with macro commands defined for the keypad.

  • Page 30: Definitions

    INT-GSM LTE SATEL Fig. 18. DLOADX program: “Groups” tab. 5.5.2 Definitions You can create and configure macro commands in the “Definitions” tab. The macro command is a sequence of actions, composed of single commands, which are to be done by the control panel when running the macro command.
  • Page 31 SATEL INT-GSM LTE Autoexecute – if this option is enabled, there is no need to enter the group to run the macro command. No confirmation messages – if this option is enabled, no messages will appear to inform you about execution of a command or an error after running a macro command (the screen from which the macro command was run will still be displayed).
  • Page 32 INT-GSM LTE SATEL controlled by using macro commands or the status of partitions which are armed by a macro command. Show name – if this option is enabled, the macro command name will be displayed. Commands Commands list – commands assigned to the currently highlighted macro command.

  • Page 33: Defining The Macro Commands

    SATEL INT-GSM LTE Data type – size and meaning of the communication object data defined in INT-KNX-2 module for selected object. Value – value to be set (if the type of data provides for sending a sequence of characters, you can enter up to 13 characters).
  • Page 34 INT-GSM LTE SATEL 4. Enter a name for the new macro command. 5. If running a macro command is to be each time preceded by user authorization, enable the “Authorization required” option. 6. If the macro command is to be unavailable when any of the partitions managed by the application is armed, enable the “Disabl.
  • Page 35 SATEL INT-GSM LTE 9. Click the button and select the icon for the macro command. 10. If the icon is to change depending on the selected output state:  enable the “State follow output” option,  indicate the output number, ...
  • Page 36 INT-GSM LTE SATEL 13. Configure the command parameters. 14. Click the “Add” button. A new command will appear on the list of commands assigned to the macro command. You can still modify parameters of the command after clicking on it (having made the changes, click the “Change”...
  • Page 37 SATEL INT-GSM LTE 18. Enter the group name, if it is to be displayed. 19. Click the button and select the icon for the macro command group. 20. Click the “Add macro” button. A list of all defined macro commands will be displayed.

  • Page 38: Remote Programming / Operating Of Control Panel Via Module

    GUARDX program If the INT-GSM LTE module is connected to the ETHM-1 Plus module, communication via the INT-GSM LTE module (via cellular network) will only be used if connection via Ethernet cannot be established (see the ETHM-1 Plus module manual).
  • Page 39 Select the “INT-GSM IMEI” variant. INT-GSM IMEI – individual ID number of the module cellular telephone. INT-GSM ID – individual ID number assigned to the INT-GSM LTE module by the SATEL server. GUARDX key – a string of up to 12 alphanumeric characters (digits, letters and special characters), used for data encryption during communication between the control panel and the computer with GUARDX program.

  • Page 40: Initiating Connection By Sms Message

    GUARDX<-ETHM/INT-GSM” and then click the “Start” button. This will display a window with information that the program is waiting for connection. 2. Send to the INT-GSM LTE module the following SMS message: xxxx= (“xxxx” – the control command to initiate establishment of communication with GUARDX program) –...

  • Page 41: Establishing Connection Via The Satel Server

    SATEL server (Connection Setup Service). If the INT-GSM LTE module is connected to the ETHM-1 Plus module, communication via the INT-GSM LTE module (via cellular network) will only be used if connection via Ethernet cannot be established (see the ETHM-1 Plus module manual).
  • Page 42 INT-GSM LTE SATEL file, touch the screen in the “Import macros” area and change the settings. If you select import from file, you will have to indicate location of the file containing macro commands. 4. Tap to save settings. Fig. 24. INTEGRA CONTROL application (Android system): the screen for adding a control panel.

  • Page 43: Configuring The Settings In Integra Control Application (Ios)

    IMEI number” as the way of communication. 2. Enter the IMEI number of module cellular telephone. 3. Enter the ID number of INT-GSM LTE module (assigned to the module by the SATEL server). The user can use keypad to check the IMEI and ID numbers (IP/MAC/IMEI/ID user function is available in the “Tests”...

  • Page 44: Establishing The Communication

    1. Enable the “Server Satel” option so that the app can connect via SATEL server. 2. Enter the IMEI number of the INT-GSM LTE module cellular telephone. 3. Enter the ID number of the INT-GSM LTE module (assigned to the module by the SATEL server).

  • Page 45: Specifications

    SATEL INT-GSM LTE Fig. 28. INTEGRA CONTROL application (Android system): virtual keypad. 7. Specifications Supply voltage ....................12 V DC ±15% Standby current consumption ..................110 mA Maximum current consumption ..................450 mA Environmental class according to EN50130-5 ................. II Operating temperature range ...................

  • Page 46: Manual Update History

    INT-GSM LTE SATEL 8. Manual update history Manual version Introduced changes  Information on the required version of INTEGRA control panel has been modified 10/20 (p. 3).  Information on the required version of ETHM-1 Plus module has been modified (p. 3 and 10).
