1471
versa-lcdm-wrl_en 01/15
Wireless keypad
VERSA-LCDM-WRL
Firmware version 2.02
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. 58 320 94 00
info@satel.pl
www.satel.pl

Advertisement

loading
Need help?

Need help?

Do you have a question about the VERSA-LCDM-WRL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Satel VERSA-LCDM-WRL

Summary of Contents for Satel VERSA-LCDM-WRL

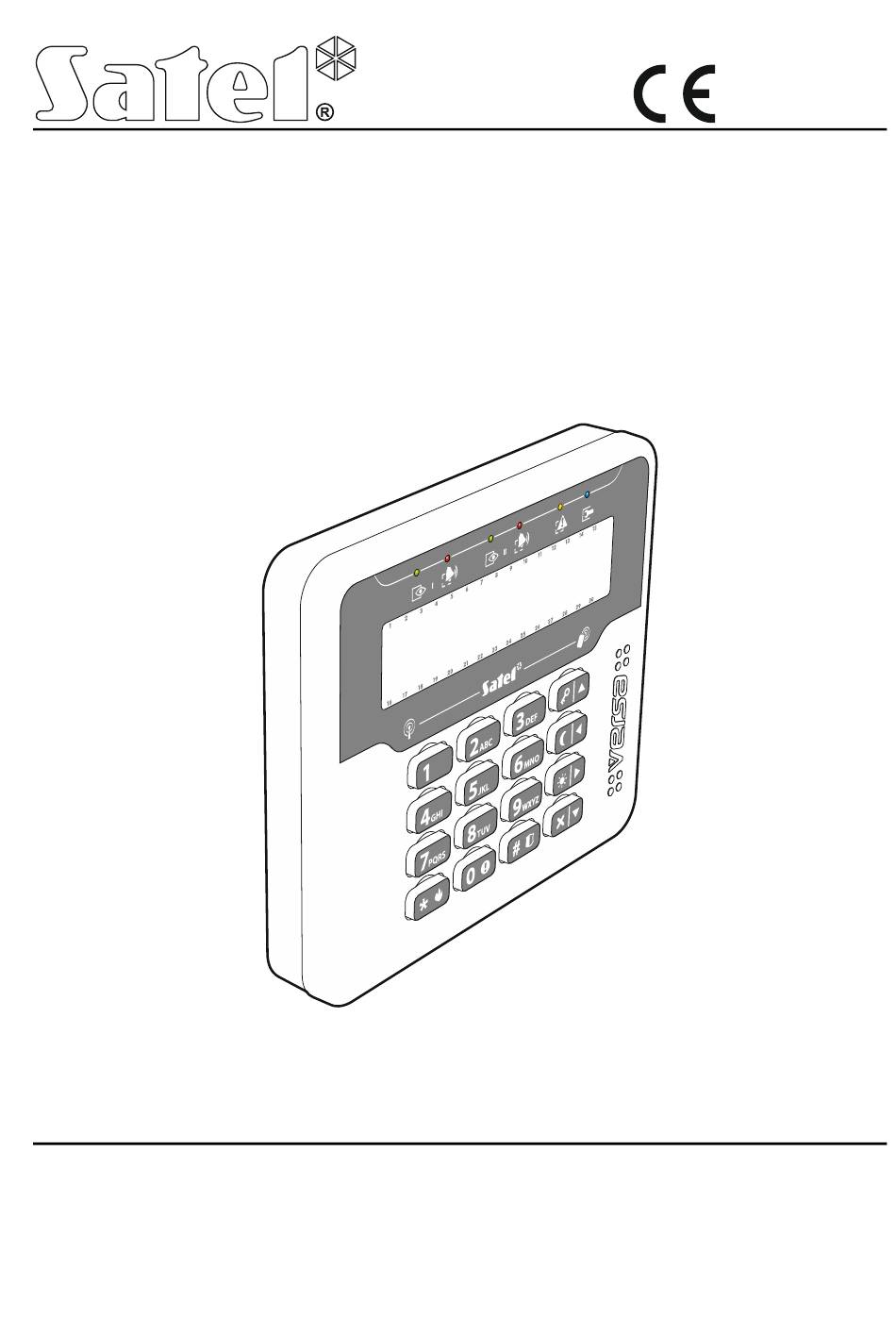

  • Page 1 1471 versa-lcdm-wrl_en 01/15 Wireless keypad VERSA-LCDM-WRL Firmware version 2.02 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. 58 320 94 00 info@satel.pl www.satel.pl...
  • Page 2 The name plate of the device is located on the enclosure base. The SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.

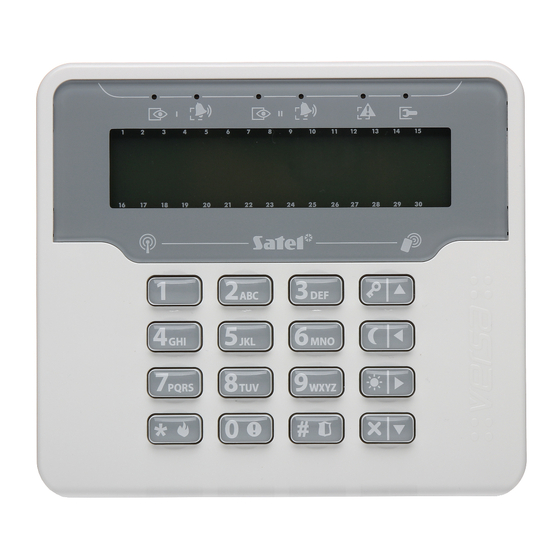

  • Page 3 The VERSA-LCDM-WRL wireless keypad enables operation and programming of the control panels of VERSA (firmware version 1.04 or newer) and VERSA Plus series. The device is designed for work within the ABAX two-way wireless system. It is supported by the ACU-120 / ACU-270 controller connected to the VERSA / VERSA Plus control panel.

  • Page 4: Installation

    VERSA-LCDM-WRL SATEL 2. Description Operating modes The keypad can work in two modes: active mode – started by pressing any key. If the W option is enabled, the active mode will also be started if the entry delay countdown starts or an alarm occurs (see section “Settings stored in ABAX system controller”...
  • Page 5 SATEL VERSA-LCDM-WRL Fig. 2. Opening the enclosure. 2. Install the batteries and add the keypad to the wireless system (see: “Adding the keypad to the wireless system”). 3. Put the cover on the catches and snap the enclosure shut. 4. Fasten the keypad temporarily at the place of its future installation.
  • Page 6 X program installed, or an LCD keypad. The controller allows for registering of up to 6 LOAD VERSA-LCDM-WRL keypads. If no wired keypad is connected to the control panel, you can only add the first wireless keypad using the D...
  • Page 7 SATEL VERSA-LCDM-WRL 3.2 Removing the keypad from the wireless system 3.2.1 DloadX program You can remove the wireless keypads in the “Versa – Structure” window, “Hardware” tab, after clicking on the name of ABAX system controller on the list of devices, and then on the “LCD-WRL”...
  • Page 8 VERSA-LCDM-WRL SATEL Fig. 3. D X program: keypad settings stored in the ABAX system controller. LOAD 4.2 Settings stored in the control panel These settings are configured in exactly the same way, as for the wired keypad:  D X program: “Versa – Structure” window “Hardware” tab “Expansion modules”...
  • Page 9 SATEL VERSA-LCDM-WRL programming manual). In the inactive mode, the alarms are not signaled. The alarms are not signaled, if the G 2 option is enabled in the control panel. RADE Fig. 4. D X program: keypad settings stored in the control panel.
  • Page 10 VERSA-LCDM-WRL SATEL Quick control – if this option is enabled, the users can control the outputs by using the number keys. When programming the control panel, the 15. C outputs must be ONTROLLED assigned to the keys (refer to the control panel programming manual).

  • Page 11: Operation

    SATEL VERSA-LCDM-WRL The auto-backlight parameters do not affect the wireless keypad performance. 4.2.2 Volume Fig. 5. Volume settings in the D X program. LOAD Volume – volume level of the beeps generated during keypad operation (key pressing, confirmation of performed operation, etc.).

  • Page 12: Specifications

    VERSA-LCDM-WRL SATEL the way of using the keypad, please refer to the control panel user and programming manuals. The manuals are available in electronic form on the www.satel.eu website. 6. Specifications Operating frequency band..............868.0 MHz ÷ 868.6 MHz Radio communication range (in open area) ............up to 500 m Batteries......................
