Satel VERSA-KWRL2 Manual

Abax 2 wireless keypad
Hide thumbs Also See for VERSA-KWRL2:

Advertisement

Quick Links

Download this manual

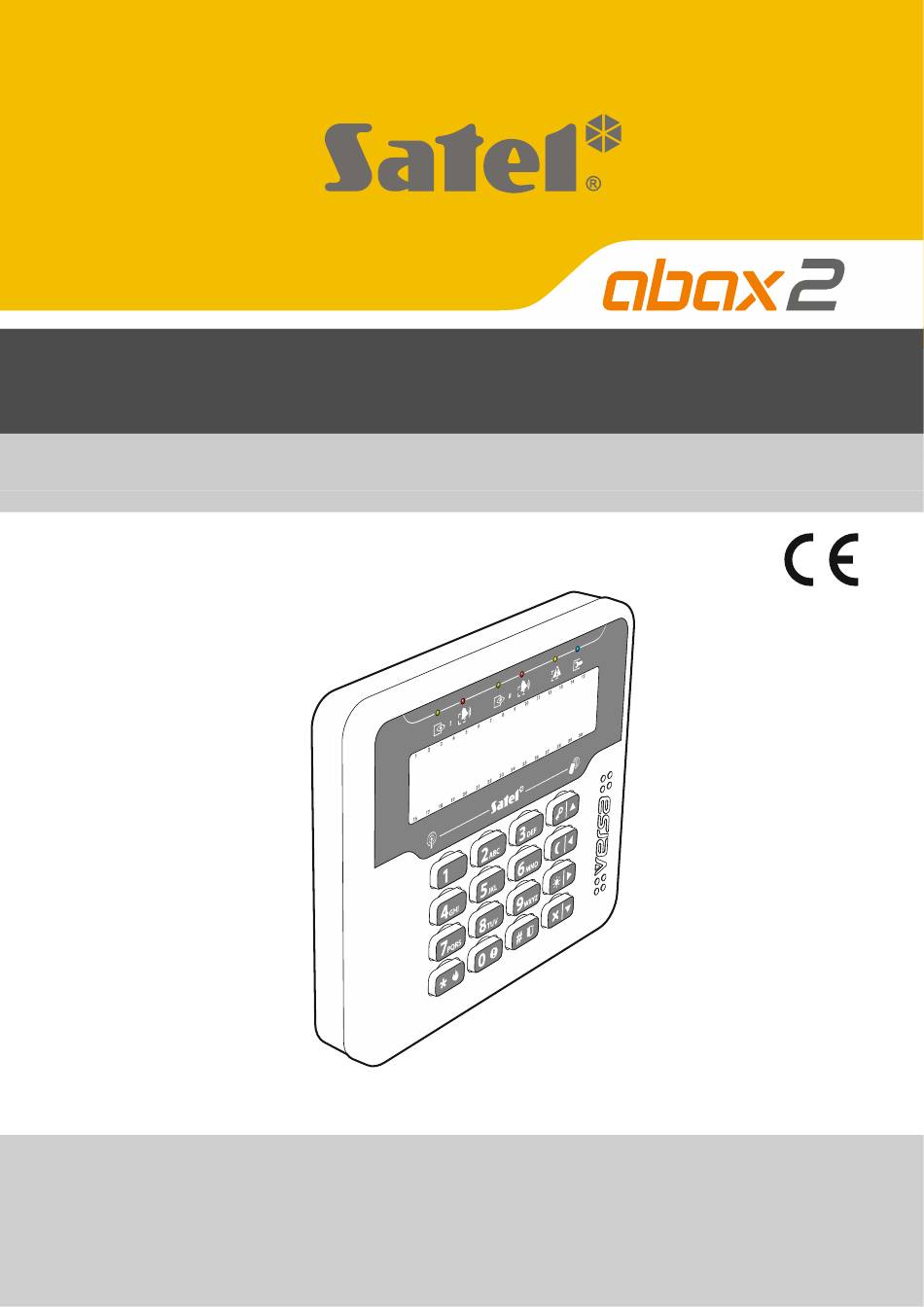

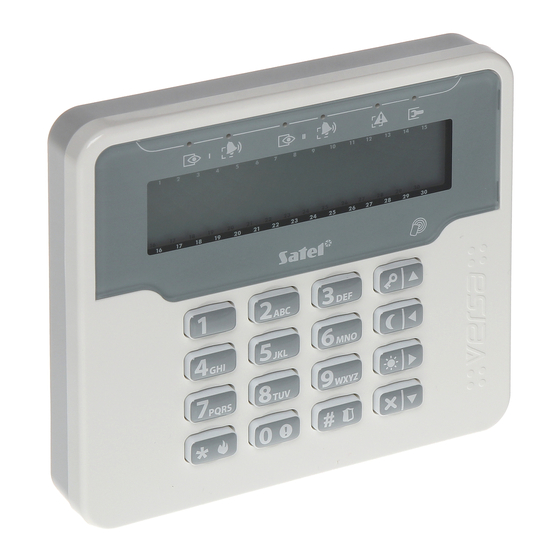

VERSA-KWRL2
Wireless keypad
Firmware version 3.00
versa-kwrl2_en 04/19
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.pl

Advertisement

loading
Need help?

Need help?

Do you have a question about the VERSA-KWRL2 and is the answer not in the manual?

Questions and answers

Related Manuals for Satel VERSA-KWRL2

Summary of Contents for Satel VERSA-KWRL2

  • Page 1 VERSA-KWRL2 Wireless keypad Firmware version 3.00 versa-kwrl2_en 04/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
  • Page 2 The name plate of the device is located on the enclosure base. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3 The VERSA-KWRL2 wireless keypad enables operation and programming of the VERSA, VERSA IP and VERSA Plus control panels with firmware version 1.09 (or newer). The device is designed for work within the ABAX 2 / ABAX two-way wireless system. This manual applies to the keypad with firmware version 3.00 (or newer), which is supported by:...
  • Page 4 VERSA-KWRL2 SATEL  Backlit keys.  Built-in proximity card reader.  Built-in sounder.  Encrypted two-way radio communication in the 868 MHz frequency band (AES standard for the ABAX 2 system).  Transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals in the 868 MHz frequency band (ABAX 2 system only).

  • Page 5: Installation

    SATEL VERSA-KWRL2  after the keypad wake-up, a low battery message is displayed (the message will specify which battery is to be replaced – the battery designation can be found on the electronics board, after opening the enclosure). The battery life depends on how the keypad is used. The more frequently the keypad is woken up, the quicker the batteries will be depleted.
  • Page 6 DLOADX program installed, or an LCD keypad. The controller allows for registering of up to 6 VERSA-KWRL2 keypads. If no wired keypad is connected to the control panel, you can only add the first wireless keypad using the DLOADX program (to establish communication between the program and the control panel, you must start the service mode “from pins”...
  • Page 7 SATEL VERSA-KWRL2 1. Click on the “Read” button to read the data related to wireless keypads from the controller (these data are not read after clicking on the button in the main menu). 2. Click on the “New device” button.
  • Page 8 VERSA-KWRL2 SATEL 3. Click on the “Delete button. ” 4. The “Confirm” window will open. 5. Click on the “Yes” button. 6. The “Confirm” window will close. 7. Click on the “Write” button to save the changes to the controller and control panel.
  • Page 9 SATEL VERSA-KWRL2 Fig. 3. DLOADX program: keypad settings stored in the ABAX 2 / ABAX controller. 4.2 Settings stored in the control panel These settings you can configure:  DLOADX program: “VERSA – Structure” window “Hardware” tab “Expansion modules” branch [keypad name] (see: Fig. 4), ...
  • Page 10 VERSA-KWRL2 SATEL Quick arming – Partition 1 [Part.1 QuickArm] – if this option is enabled, quick arming (without user authorization) of the partition 1 is possible. The quick arming is not possible, if the “Grade 2” option is enabled in the control panel.
  • Page 11 SATEL VERSA-KWRL2 be enabled in the control panel – refer to the control panel programming manual). The signaling will be turned off after reviewing the trouble with the “7. System state” user function. The new troubles will not be signaled, if the “Grade 2” option is enabled in the control panel.
  • Page 12 VERSA-KWRL2 SATEL 4.2.2 Volume Fig. 5. DLOADX program: keypad volume settings. Volume – volume level of the beeps generated during keypad operation (key pressing, confirmation of performed operation, etc.). Chime – volume level of the beeps generated after zone violation (CHIME).

  • Page 13: Operation

    When in the wake-up mode, the wireless keypad works much in the same way as the wired LCD keypad. For how to use the keypad, please refer to the control panel programming and user manuals. The manuals are available on the www.satel.eu website. 6. Specifications Operating frequency band ..............868.0 MHz ÷...
  • Page 14 VERSA-KWRL2 SATEL Standby current consumption, BT2 battery ................ 1 µA Maximum current consumption, BT2 battery (card reader disabled)........30 mA Maximum current consumption, BT2 battery (card reader enabled) ........40 mA Environmental class according to EN50130-5 .................II Operating temperature range................-10°C...+55°C Maximum humidity ......................93±3% Enclosure dimensions .................
