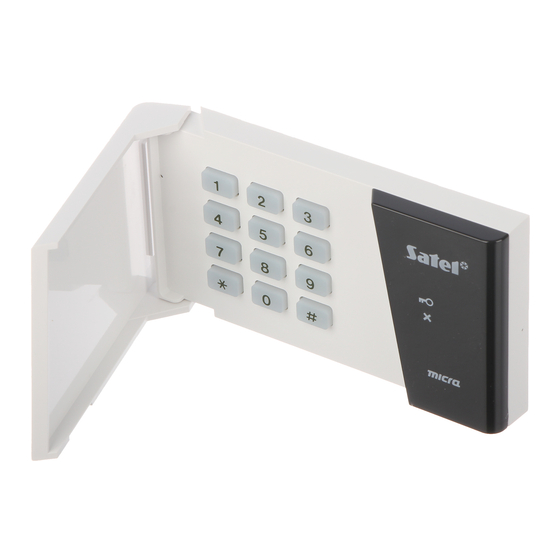

MKP-300
WIRELESS KEYPAD
The MKP-300 keypad allows you to operate the MICRA security system. It can work in conjunction
with the MICRA module running in the alarm module mode (firmware version 2.02 or newer).

1. Features


Up to 8 programmable codes for system users.

Arming / disarming and clearing alarms in the system.

Control of MICRA module outputs.

Triggering PANIC, FIRE or AUXILIARY alarm.

Transmissions secured with rolling code.

Confirmation of performed operations by LEDs and sound signals.

12 keys with backlight.

Tamper protection in 2 ways – cover removal and tearing enclosure from the wall.

2. Description

After performing certain operations on the keypad (see Section
commands will be sent to the MICRA module by radio.
Every 15 minutes, the keypad sends a transmission containing information on the status of the tamper
contact and battery. Periodic transmissions are used to monitor presence and operation of the keypad
by the MICRA module. In case of the tamper contact opening, information about the keypad tamper
will be sent immediately.

2.1 LED indicators

The keypad is provided with two LEDs:
- red color;
- green color.
When you press any key, one of the LEDs will come on, providing indication that the keypad was
recently used to:
- arm the system;
®
mkp300_en 03/12
S
ECURITY SYSTEM OPERATION
),
