2 - CONTROL PANEL

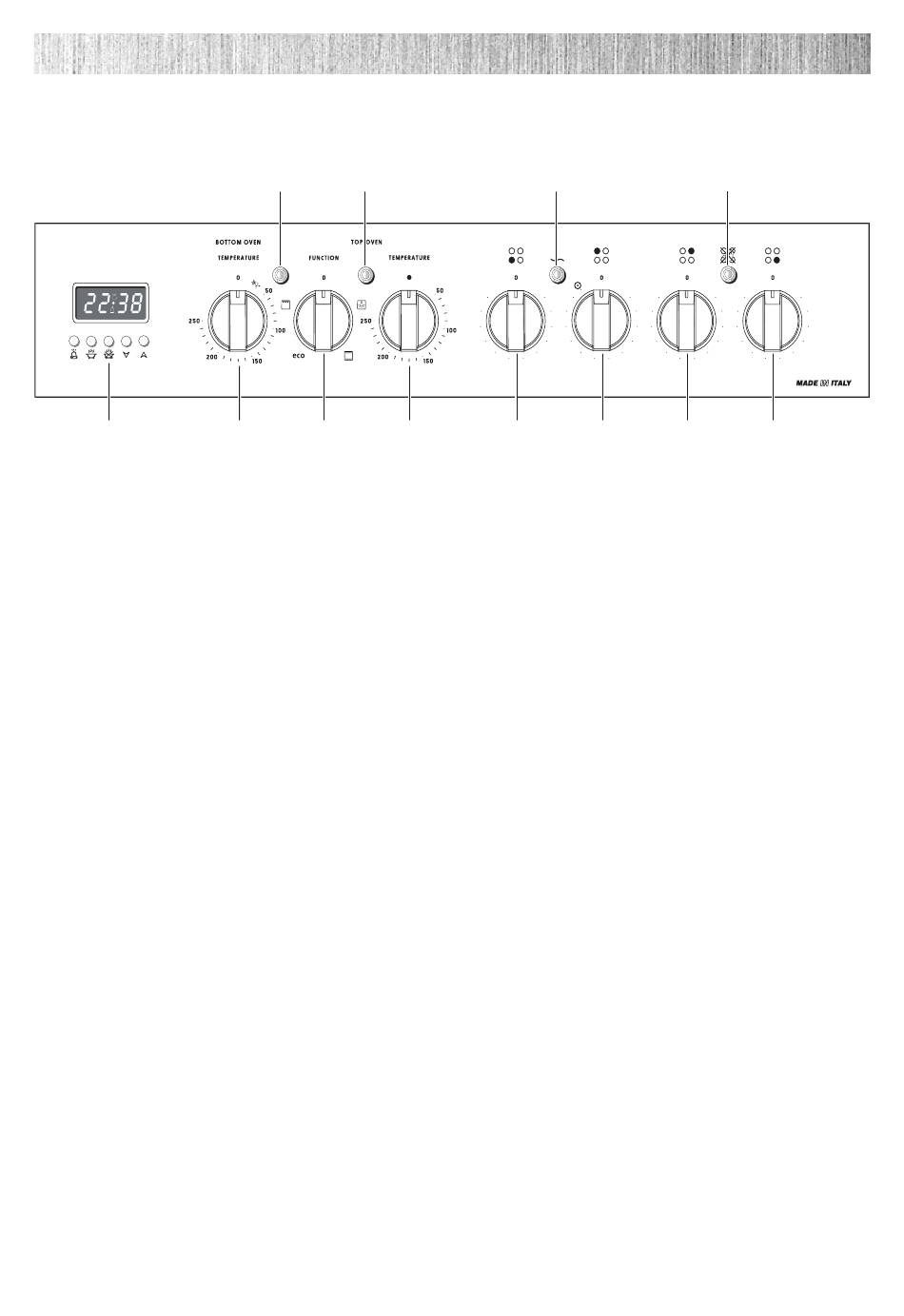

Fig. 2.1
A
8
CONTROLS DESCRIPTION
1 .
Front right cooking zone control knob
2 .
Rear right cooking zone control knob
3 .
Rear left cooking zone control knob
4 .
Front left cooking zone control knob
5 .
Conventional oven temperature knob (Top oven)
6 .
Conventional oven function selector knob (Top oven)
7 .
Fan oven switch and temperature knob (Bottom main oven)
8 .
Electronic programmer (main oven only)
Pilot lamps:
9 .
Main oven temperature light
10 . Conventional oven temperature light
11 . Ceramic hob ON indicator light
12 . Residual heat indicator
Please note: This appliance incorporates a safety cooling fan which you will hear operating
whenever the oven or grill is being used .
The cooling fan may even run on after the appliance has been switched off .
The duration of this time is dependent on several factors, including previous cooking
temperature, duration and ambient temperature . Times in excess of 30 minutes are not
uncommon .
