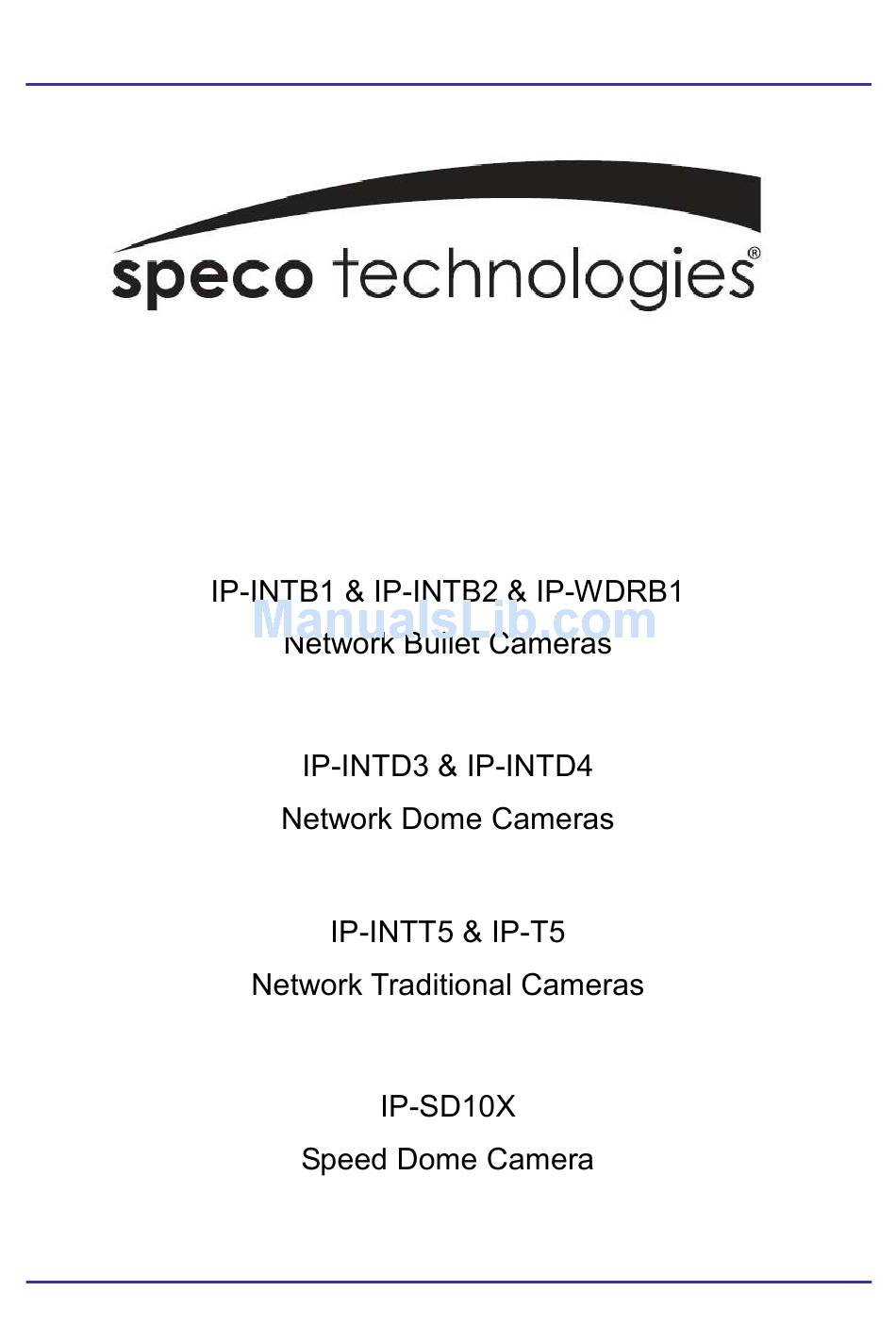

Speco Technologies IP Camera User’s Manual IP Camera User’s Manual (Version 1.3.2)
Page 2
Speco Technologies Introduction We appreciate your purchasing our IP Network Camera. This is a Network Camera with a built-in MPEG-4 CODEC and Streaming Server. It uses an MPEG-4 CODEC as the Video Compression method and has a built-in Streaming Server which allows you to monitor and record real time images in remote places over the Internet.
Speco Technologies IP Camera User’s Manual Important Notes The Network Camera may be damaged by electrical and physical shock Do not try to disassemble the products. Contact or consult the distributor or Head Office for after sale service. There may be no Quality Assurance for the products disassembled arbitrarily.
Page 6
Speco Technologies 5.3. IP S SE OF ETTING 5.4. SE OF ERVICE 5.4.1. User Registration ... 102 5.4.2. Camera Registration... 104 5.4.3. List of Camera ... 105 5.4.4. Change of User’s Information... 107 5.4.5. Search Camera... 108 5.5. EE AND ONTROL OF 5.5.1.
Page 7
Speco Technologies IP Camera User’s Manual 1. Feature...
Speco Technologies Feature 1.1. Package IP/Network Camera Cross LAN Cable Package of Products is composed of main body of product, Software CD (NVR Program, IP Utility, Product Manual, NVR Manual) , Quick Install Guide, Cross LAN Cable, Accessory Pack, Power Lead Cable.
Speco Technologies 1.2. Dimension and Camera Features 1.2.1. Dimensions 1) Bullet Camera ① 2) Dome Camera ① ② ② IP Camera User’s Manual ③ ③...
Page 10
Speco Technologies 3) Traditional Camera 3) Speed Dome Camera ① Power Port: Power connection port (12 VDC) VIDEO Port : Video Output Port (BNC) LAN Port: LAN Connection Port ( Connect with LAN Cable for Local Network or Internet Viewing)
Speco Technologies 1.2.2. Camera Feature Intensifier Cameras SLC ( Speco Light Compensation ) : When the image is in front of strong background lighting, your camera allows you to get a clear image. Intensifier: 1/3 inch double density CCD and digital processor permit high quality pictures to be captured in very low light conditions.
Page 12
Speco Technologies Camera OSD control with client program Super Day/Night Function with Power Sensor-up engine Intelligent Pan/Tilt Controlling High-frame rate of up to 30fps at 704x480 size image 4 selectable image sizes – D1,Half D1,2CIF,CIF Simultaneous access up to 20 users...
Speco Technologies Install and Check Video 2.1. Installation Connect the IP Camera to the PC by LAN cable (Crossover Cable) Supply power to the camera using a 12 volt DC regulated power supply. Wait approximately 2 minutes until the Link/LED light comes on.
Page 15
Speco Technologies Set IP Address, Subnet Mask and Gate-way of User’s PC with 192.168.1.50, 255.255.255.0 and 192.168.1.1 as shown on [Fig. 2-1]. Run Web Browser as [2-2] and input 192.168.1.7 in URL and click “Enter”, then [2-3] is shown. In case [2-3] does not appear, re-set Hardware (Reset Button in Camera) to reboot and run Web Browser, input 192.168.1.7 in URL line and click “Enter”...
Page 16
Speco Technologies Input ID and Password on [Fig. 2-4] to see Video. User’s Authority to see Video on THE CAMERA is as follows ; User ID Guest (select models only) Audio (select models only) Iaudio (select models only) PCAudio (select models only) root Above [Table 2-1] is the value set in THE CAMERA.
Page 17
Speco Technologies Upon installation, Web Viewer [Fig. 2-6] appears and the image of the Camera can be seen. After checking proper operation as seen on [Pic 2-6], go onto the next Chapter (3) Basic Setting. Refer to (5) Basic Use’ to see the details of how to use Web Viewer.
Speco Technologies Basic Setting 3.1. Check Network and Installation Type This Chapter is for basic setting of THE CAMERA. To install Hardware of the Network Camera, basic understanding of Networking is required. Network Environment is required. CAMERA without IP sharing Device under Cable Modem or Leased Line, the other one is to install THE CAMERA under an IP sharing Device , which is required necessarily under PPPoE environment, and even under Leased Line or Cable Modem.
Speco Technologies 3.2. Installation without IP sharing device (Router) 3.2.1. Static IP Setup After checking Video in ‘Video Check’, go to the next step. Connect THE CAMERA to PC with LAN Cable (Crossover Cable). Cable connection and Network Setup should be same as shown in Video Check’.
Page 21
Speco Technologies Put ‘admin’ in ID and Password line, click ‘Login’, then [3-3] ‘Administrator's Page’ will be shown. (ID, Password of THE CAMERA is preset as admin/admin in Administrator’s Page. Change Administrator’s ID and Password in General Setting of Expert Setting’...
Page 22
Speco Technologies Click ‘Click Here’ upon appearing of IP Change Window of [3-5]. IP Change loading Page appears as [3-6], the Main Page of changed address is connected. (Note: Cross Cable connection, but IP has been changed.) Fig. 3―4 Network Setting You may not find the main page of changed address under Pic 3―5 IP Change...
Speco Technologies Remove LAN Cable (Cross Cable) connected between THE CAMERA and PC. Connect THE CAMERA to Network with LAN Cable (Straight Cable). Connect PC to Network with LAN Cable (Straight Cable).. Set up IP Address, Subnet Mask and Gateway of PC according to the Network environment.
Page 24
Speco Technologies Go to Network Setting Page of Administrator’s Page as per 4), 5), 6), 7) of ‘Static IP Setup’. Click on ‘Dynamic IP Address’ in ‘IP Setting’. Click ‘Save’ Button. Upon completion of setting, close the Web Page and find IP of THE CAMERA in ‘IP Utility’...
Speco Technologies connect to THE CAMERA by Domain Name (Server Name) allocated to THE CAMERA. For example, run Web Browser and input Domain Name allocated to THE CAMERA in URL. In http://IPXXXXX.ipcam4u.net, ‘IPXXXXX’ is to be Name of Server registered in Service Server by user.
Page 26
Speco Technologies DNS Address should be input. In case THE CAMERA is installed under IP Sharing Device, input local IP of Router in 2 8) Click ‘Save’ Button of [3-9] to save the set value. Click ‘Click Here’ upon appearing of IP Change Window of [3-10].
Page 27
Speco Technologies It is connected to the new IP set up, in 20 seconds after window of [3-11] appears. Check Video of THE CAMERA referring to is connected to the new IP. Go to Network Setting Page of Administrator’s Page as per 4), 5), 6), 7) of ‘Static IP Setup’.
Page 28
Speco Technologies Set Port in Port Setting Page of [3-12]. It is required to set each different Port for many THE CAMERA Network Cameras under 1 Router. Click ‘Save’ Button to save set value. Remove LAN Cable (Crossover Cable) connected between THE CAMERA and PC.
Speco Technologies connect to THE CAMERA by Domain Name (Server Name) allocated to THE CAMERA. For example, run Web Browser and input Domain Name allocated to THE CAMERA in URL. In http://IPINTB1.ipcam4u.net , ‘IPINTB1’ is to be Name of Server registered in Service Server by user.
Speco Technologies IP Camera User’s Manual 4. Expert Setting...
Page 31
Speco Technologies IP Camera User’s Manual Expert Setting After registration of THE CAMERA in Service Server (refer to ‘Use of Service Server’ of ‘‘ 5. Basic Use’’, connect to THE CAMERA by Domain Name (Server Name) allocated to THE CAMERA. (For example, run Web Browser and input Domain Name allocated to THE CAMERA in URL.
Page 32
Speco Technologies IP Camera User’s Manual Fig. 4―2 Administrator’s Page...
Speco Technologies 4.1. General Setting 4.1.1. Title Setting Server title is to be English without space. Click ‘Save’ Button to save title after input name. Fig. 4―3 General Setting Fig. 4―4 Title Setting IP Camera User’s Manual...
Speco Technologies 4.1.2. Administrator’s ID and Password Change ※ Cautions : Change Administrator’s ID and Password and do not disclose the information to others. Administrator’s ID and Password should be English, within 20 characters, without space. Click ‘Save’ Button to save the changed value after change Administrator’s ID and Password.
Speco Technologies 4.1.4. User List and Delete User list is available on clicking ‘List Users’ on [4-7], to check list and delete user ID in [4-8]. User ID ‘guest’, ‘PTZ’, ‘audio’, ‘Iaudio’, ‘PC Audio’, ‘root’ has be pre-registered as basic user ID on ex-factory.
Speco Technologies 4.1.6. Time Zone Setting This is to set Time zone of location where THE CAMERA is to be installed, to set up local time in case of monitoring from different time zone area. Select one of time zone in ‘Set Time Zone’...
Speco Technologies 4.1.8. Select Language This is to select language to be displayed in all Web Pages such as Administrator’s Page, Web Viewer and Main Page of THE CAMERA. It supports both English and Japanese. Click ‘Save’ Button to save the set value after select the Language.
Speco Technologies 4.3. Video Setting 4.3.1. Video Setting Select and tick on the Channel to use, input Video format (NTSC or PAL), Compressed resolution, Bit rate, Frame rate, Key frame. Video setting can be done automatically by pressing ‘High’, ‘Normal’, ‘Low’ according to the Network Speed at which THE CAMERA is installed.
Speco Technologies 4.4. Color Setting This is to adjust color of channel. Upon adjustment of color on [4-17], then click ‘Save’ to save the setting value. In case to return to default, click ‘Default’ to go to default. Even in this case, it is required to click ‘Save’...
Page 40
Speco Technologies Designate condition to drive Event in ‘Alarm Condition’, such as Sensor Event, Motion detection Event or Sensor + Motion detection Event, If Sensor Event is selected, make Sensor settings Upon event situation after setting on ’Enable’ in ‘Alarm’ of ‘Alarm Event’, Event is to be transmitted to user’s Viewer and inform detection of Event, with flickering on screen and alarm sound.
Speco Technologies 4.5.2. Alarm Event Test Click ‘Test’ of [4-18], THE CAMERA will work as if Alarm has happened. In case selected ‘Alarm Style ->’Alarm Server’, Event is to be notified to Alarm Server and is to recorded into the recorded file (10 seconds before and 50 seconds after Event), and to be sent to Alarm Server.
Speco Technologies Remote Control: to control Relay through Internet using Viewer Local Control: Relay is on during ‘Duration’ time upon Event on Sensor, then is off. Remote & Local Control: Control Relay through Internet using Viewer. To be ON during ‘Duration’ time upon event on Sensor, then to be OFF.
Speco Technologies 4.8. Camera Setting(support for IP-SD10X) It is available to pre-set Pan/Tilt/Zoom Cameras. Preset Setting is available up to 20, but may be less than 20 for some model of Camera. (1) OSD Menu: to activate OSD Menu. (2) Preset No: to select the Preset Number to set up.
Speco Technologies 4.9. Homepage Update Homepage Update function is for user to upload the main page of THE CAMERA onto user’s Homepage. User’s Homepage is composed of 3 files, index.html, top.htm, main.htm. The file for user to use is main.htm. After making Web Page (main.htm) and save it as file name of main.htm, upload by the function of ‘Homepage Update’, then main.htm page is to be the 1st main page of THE CAMERA.
Speco Technologies 4.10.1. Remote Upgrade Address of ‘Update Server Address’ in [4-22] is set as ‘ipcam4u.net’. Check ‘Current Software Version’ in ‘Current Version’ of [4-22] and go ahead with update if current version is lower than latest version. Upon clicking ‘Update’ button in [4-22] ‘Remote Update’, [4-23] will appear.
Page 46
Speco Technologies ‘Downloading’ message will be shown until completion of Update as [4-24] (it may take time according to Network situation). Upon completion of upgrade, there appears message showing upgrade result. [4-25] is the message showing that upgrade has been correctly done. Click ‘Restart’ in ‘System Restart’...
Speco Technologies user keep finding [4-27] or can’t upgrade, contact head office of Speco Technologies 4.10.2. System Re-booting This is the function to re-boot Inner Software of THE CAMERA. Click ‘Restart’ on [4-41] ‘System Restart’ to reboot all inner program of THE CAMERA.
Speco Technologies 4.11. Factory Reset 4.11.1. Reset Button Press reset button for 1sec to be operated.(Red Circle) Bullet Camera Dome Camera 4.11.2. In reset of Factory default Changed to [192.168.1.7] of IP Address. Changed to [192.168.1.1] of Gateway. Changed the Server Login Port No. to “Default”.
Speco Technologies Basic Use 5.1. Use of Web Viewer Table. 5-1 Definition of Web Viewer Button Function Fig. 5―1 Web Viewer Display Screen reduced by 50%. Display Screen at 100%. Double-clicking mouse on enlarged screen has the same function. Enlarge Video of a channel to 640 x 480. Double-clicking in a selected channel has the same function.
Page 51
Speco Technologies Flickering Screen and Alarm Sound Relay ON Relay OFF Select Preset to control Select Tour to control Select Pattern to control Move to the selected Preset/Tour/Pattern. Preset Tour. Move to preset location in regular sequence from No. 1 up to 200.
Page 52
Speco Technologies ③ ① ‘space ’Key’ ② Enlarge / reduce Screen Number Key’ ③ Preset Move Function, The Number represents the Preset Number 20 Preset is controlled by Key Board Key Board 1 ~ 0 : Preset 1 ~ Preset 10 Key Board q ~ p : Preset 11 ~ Preset 20 ‘Direction Key’...
Speco Technologies 5.2. Use of OSD (Not available with IP-T5) The OSD menu of this camera can be controlled by Web Viewer. Please refer to the ‘1.2.2 Camera 5.2.1. Function 11) Intensifier Cameras (Not available with IP-T5) SETUP MENU Feature’ for OSD function.
Page 54
Speco Technologies IP Camera User’s Manual 2) Speed Dome Camera (IP-SD10X)
Page 55
Speco Technologies IP Camera User’s Manual 3) WDR Camera (IP-WDRB1)
Speco Technologies 5.2.2. OSD Menu Setting When you control the OSD by using the joystick on the camera, refer to the following (select models only) When you control by the five keys on the Webviewer GUI refer to the following IP Camera User’s Manual...
Speco Technologies 5.2.3. Operating Camera OSD Menu (Intensifier Cameras) 1. Press the SET button to access the SETUP mode. SET UP menu is displayed on the monitor screen. 2. Select the desired feature using the UP or DOWN button. Each time you press the UP or DOWN button, the arrow indicator moves up or down.
Page 58
Speco Technologies IP Camera User’s Manual 1) Setting up the LENS Select the lens pressing the RIGHT button. ① On the SETUP menu screen, move the arrow indicator to the lens using the UP or DOWN button. ② Select the desired feature using the LEFT or RIGHT button.
Page 59
Speco Technologies IP Camera User’s Manual ▶When DC LENS selected, press SET button to control the BRIGHTNESS.
Page 60
Speco Technologies 1) Shutter status and speed control You can control brightness of the screen by the shutter speed. ① Press the SET button to display the setup menu and move the arrow indicator to ‘SHUTTER’ using the UP or DOWN button.
Page 61
Speco Technologies IP Camera User’s Manual ▶MANUAL : When setting shutter speed manually. (Only for LENS mode) You can select speed from ‘1/60’ to ‘1/200,000’sec...
Page 62
Speco Technologies IP Camera User’s Manual ▶ESC : You can control the BRIGHTNESS. ③When completed, press ‘SET’...
Page 63
Speco Technologies IP Camera User’s Manual 3) SLC (Speco Light Compensation) - BACKLIGHT A built-in SR chip provides intelligent light level control to overcome severe Backlight conditions. ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘BACKLIGHT’...
Page 64
Speco Technologies 3) AUTO GAIN CONTROL (AGC) AGC is to get bright picture. Higher GAIN level, getting brighter screen. But you can get noise increase. ① Press the SET button to display the SETUP menu and move the arrow indicator to AGC using the UP or DOWN button.
Page 65
Speco Technologies 5) WHITE BALANCE (WHITE BAL.) For color control on the screen, use ‘WHITE BALANCE’ function. ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘WHITE BALANCE’ using the UP or DOWN button.
Page 66
Speco Technologies ▶MANUAL : To fine adjust, select the Manual mode. You can increase or decrease the red or blue factor while monitoring the difference on the screen. Set to ‘MANUAL’ mode and press the SET button. Increase or decrease the value for RED(R-Gain) and BLUE(B-Gain), watching the color of the picture, and press the SET button when you obtain the best color.
Page 67
Speco Technologies 6) Digital Noise Reduction (Dynamic Noise Reduction) DNR is to reduce the noise on the screen. ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘DNR’ using the UP or DOWN button.
Page 68
Speco Technologies 7) INTENSIFIER Allows you to get clear images with this function under night or low light conditions ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘Intensifier’ using the UP or DOWN button.
Page 69
Speco Technologies 8) NEXT PAGE ① Press the SET button to display the SETUP menu and move the arrow indicator to ‘Intensifier’ using the UP or DOWN button. ② SET ‘Intensifier’ to the desired mode using the LEFT or RIGHT button.
Page 70
Speco Technologies ③ Press SET button to access the SETUP mode. ④ You can enter up to 15 characters. a. Move the cursor to character-enter location by using the LEFT or RIGHT button. b. Select the desired character by using the UP or DOWN button.
Page 71
Speco Technologies B) COLOR You can choose color and B/W mode electronically. (OPTION) ▶ ON : color mode ▶ AUTO : generally color mode, B/W mode in low luminance. OSD Key may not work for 3 seconds when the COLOR/ BW mode is changed.
Page 72
Speco Technologies C) SYNC Two SYNCHRONIZATION modes are available… INTERNAL and EXTERNAL LINE-LOCK. In LINE-LOCK mode, the camera syncs to the 60 Hz phase. ① Press the SET button to display the setup menu and move the arrow indicator to ‘SYNC’ using the UP and DOWN button.
Page 73
Speco Technologies D) PRIVACY To mask an area that you want to be private. ① Press the SET button to display the setup menu and move the arrow indicator to ‘PRIVACY’ using the UP and DOWN button. ② SET ‘PRIVACY’ to the desired mode using the LEFT or RIGHT button.
Page 74
Speco Technologies E) REVERSE ① Press the SET button to display the setup menu and move the arrow indicator to ‘REVERSE’ using the UP and DOWN button. ② SET ‘REVERSE’ to the desired mode using the LEFT or RIGHT button.
Page 75
Speco Technologies F) DETAIL ① Press the SET button to display the setup menu and move the arrow indicator to ‘DETAIL’ using the UP and DOWN button. ② SET ‘DETAIL’ to the desired mode using the LEFT or RIGHT button.
Page 76
Speco Technologies IP Camera User’s Manual G) DEFAULT : Use to reset your camera to FACTORY DEFAULT SETTING. H) PAGE1 : PAGE 1 : Save the setting of NEXT PAGE function, and then...
Speco Technologies IP Camera User’s Manual 5.3. Use of IP Setting Utility Upon running IP Setting Utility, the following program is to be displayed. Fig. 5―2 IP Find Click ‘IP Find’ Button to find IP of THE CAMERA on local Network.
Page 100
Speco Technologies After finding IP, double-click IP of THE CAMERA to go to the editable Mode as follows. Input new IP Address, Default Gateway, Subnet Mask, and then input Password of THE CAMERA Administrator and click ‘IP Change’, to set up new IP of THE CAMERA. Upon completion of setting, find new IP and click ‘Ping’...
Speco Technologies IP Camera User’s Manual 5.4. Use of Service Server Run Web Browser and input http://ipcam4u.net in URL and click ‘Enter’, then [5-6] will appear as follows. Fig. 5―6 Service Server Click the language user want to use.
Speco Technologies IP Camera User’s Manual 5.4.1. User Registration Fig. 5―7 User Login Click ‘Register Now’ in [5-7]. Fig. 5―8 Agreement...
Page 103
Speco Technologies IP Camera User’s Manual Read the Agreement carefully and click ‘Agree’ in case to agree, and go to the next page. Fig. 5―9 User Registration The part marked with is mandatory. User ID is to be double-checked. Then click ‘Log In’.
Speco Technologies and password on [5-7] to connect to Service Server. 5.4.2. Camera Registration Click ‘To register camera’ in [5-11] to go to Camera Registration Page. ① ② ③ ④ Input name of THE CAMERA in ① of [5-12], which will be applied only in Service Server.
Speco Technologies knowing IP address of THE CAMERA. Domain Name must be unique. Register after checking if it is duplicate or not. ③ is to check whether the Camera is to be open or not. ④ is for the function to connect to THE CAMERA easily by User’s ID and Password registered in THE CAMERA, to monitor or control...
Page 106
Speco Technologies IP Camera User’s Manual Fig. 5―14 Camera List [5-14] shows the registered List of THE CAMERA. Upon clicking on ‘Camera Name’ registered in [5-14], [5-15] will show the Camera Information. ‘Time’ is the latest time for THE CAMERA to report to Service Server.
Speco Technologies ‘Alarm Log List’ shows the information of a channel, alarmed time, type of Alarm. It is available to delete the log file. THE CAMERA sends the recorded files, dividing into Video file and Audio files, to Service Server In case there is no recorded file, the message will show ‘No File’.
Speco Technologies IP Camera User’s Manual Fig. 5―17 Change User’s Information Save User’s information by clicking ‘To Change Information’ after change user’s information. 5.4.5. Search Camera Fig. 5―18 Search Camera ‘Search Camera’ of [5-18] is the function to see information of THE CAMERA or connect directly to THE CAMERA without user registration in Service Server.
Speco Technologies If user want to see information of THE CAMERA by the Address, select ‘Information’ and input MAC Address of THE CAMERA to see information on, and click ‘confirmation’ . Then Information of THE CAMERA will be shown as [5-20].
Page 110
Speco Technologies IP Camera User’s Manual Fig. 5―21 Input User ID On user ID input Page [5-21], input user’s ID registered in ‘Use of Service Server ’ of ‘5. Basic Use’. Fig. 5―22 List of Registered Products Select one of the products (Camera or Server) registered by user on[5-22].
Page 111
Speco Technologies IP Camera User’s Manual Fig. 5―24 Pan/Tilt/Zoom Control It is available to see Image and control Pant/Tilt/Zoom/5 Preset. Number Key of Mobile Phone controls Pan/Tilt/Zoom. (2) Relay Control (2 Relay controllable) It is available to control up to 2 Relay. Relay Name and current status ([ON/OFF]) will be displayed.
Speco Technologies IP Camera User’s Manual It shows the Sensor Name and current status ([Normal/Sensing]). 5.5.2. PDA(WinCE) Run ‘Internet Explorer’ of PDA and input http://ipcam4u.net/pdah5450_eng.htm input in URL to connect to Service Server. Fig. 5―25 PDA Log-in On user ID Input Page [5-25], input user’s ID registered in ‘Use of Service Server ’ of ‘5. Basic Use’...
Speco Technologies 5.6. Use of NVR Program 5.6.1. Required Specification of PC and OS Item Pentium Ⅳ 2.0G Main Memory 256MB Windows 2000/XP Web Browser I.E 5.0 Resolution 1,024 * 768 Network 100 Base-T Ethernet 5.6.2. Supported O/S Windows 2000 Professional (Korean OS, English OS, Japanese OS)
Speco Technologies IP Camera User’s Manual 6. Network Environment...
Page 115
Speco Technologies Network Environment It is required to follow the recommendation of the environment where THE CAMERA will be installed or the similar environment 6-1. Private line Environment Usually Company, University, Research center use the leased line. They use many public IP addresses.
Page 116
Speco Technologies Web Connection Port Authentication and Control Port Video Streaming Port Motion Detectin Control Port IP Camera User’s Manual : Port 80 TCP : Port 9000 TCP : Port 9001 TCP : Port 9005 TCP...
Page 117
Speco Technologies IP Camera User’s Manual 7. Appendix...
Speco Technologies Appendix Appendix A Basic Setting Table Item Network Setting Static IP / Dynamic IP IP Server IP Address Gateway Subnet Mask Web Connection Port Authentication /Control Port Video Streaming Port Motion Detection Port ID and Password Administrator ID /Password...
Page 119
Speco Technologies Appendix B Specification of Products B-1 IP-INTB1 / INTB2 Image Sensor Total Pixel Effective Pixel Horizontal resolution Minimum Illumination S/N Ratio Lens (INTB1 / INTB2) Scanning System Synchronization Compression IMAGING Multi-Streaming Gain Control Electric Shutter Speed INTENSIFIER White Balance...
Page 120
Speco Technologies B-2 IP-INTD3 / INTD4 Image Sensor Total Pixel Effective Pixel Horizontal resolution Minimum Illumination S/N Ratio Lens ( INTD3 / INTD4 ) Scanning System Synchronization Compression IMAGING Multi-Streaming Gain Control Electric Shutter Speed INTENSIFIER White Balance Reduce Noise...
Page 121
Speco Technologies B-3 IP-INTT5 Image Sensor Total Pixel Effective Pixel Horizontal resolution Minimum Illumination S/N Ratio Lens Scanning System Synchronization Compression IMAGING Multi-Streaming Gain Control Electric Shutter Speed INTENSIFIER White Balance Reduce Noise Maximum Frame Rate Image Sizes Frame Rate On Screen Display(O.S.D)
Page 122
Speco Technologies B-4 IP-T5 Image Sensor Total Pixel Effective Pixel Horizontal resolution Minimum Illumination S/N Ratio Lens Scanning System Synchronization Compression Multi-Streaming Electric Shutter Speed MIRROR Maximum Frame Rate IMAGING Image Sizes Frame Rate Viewer Program Network Concurrent Users Recording Event&...
Page 123
Speco Technologies B-5 IP-WDRB1 Image Sensor Total Pixel Horizontal resolution Minimum Illumination S/N Ratio Lens Scanning System Synchronization Compression IMAGING Multi-Streaming AGC Control Electric Shutter Speed Dynamic range Maximum Frame Rate Image Sizes Frame Rate On Screen Display(O.S.D) Iris Control...
Page 124
Speco Technologies B-6 IP-SD10X Image Sensor No. of Pixel Horizontal resolution Minimum Illumination Digital Slow Shutter Lens Compression IMAGING Multi-Streaming Function Image Sizes Maximum Frame Rate Frame Rate CONTROL Tilt Preset Point Network Optical Digital Flikerless Rotation Angle Manual Speed...
Page 125
Speco Technologies Current Users Recording@PC Event& Alarm Video Output Dimension Power Source PHYSICAL Power Consumption (Max.) Operational Temperature Weight Video Out RS485 Interface Sensor In/Relay Out CONNECTIVITY Ethernet Jack Protocols Browser Operating System REQUIREMENTS Processor Memory Appendix C To solve problem...
Page 126
Speco Technologies Check with ‘C-1-2 Network Cable (LAN cable) and cable connection check’. PING Test In case Camera uses Static/Public IP: input “Ping IP address” to command window of PC and check response. In case camera uses dynamic/public IP: In this case, user cannot find camera IP address.
