Summary of Contents for Speco O2MD2
- Page 1 O2MD2...
- Page 2 ’ ’ Directions Be careful not to cause any physical damage by dropping or throwing the camera. Especially keep the device out of reach from children. Do not disassemble the camera. No after service is assumed when disassembled. Use only power adapters compatible with the unit. Be careful to prevent moisture or water penetration into the unit.
- Page 3 ’ ’ Revision History Date Revision Details Mar 27 , 2014 First manual revision creation. Rev.1.0 (Mar. 2014)
-
Page 4: Table Of Contents
4.2. Quick Installation Guide .......................... 14 4.2.1. Connect PC and O2MD2 to network.................... 14 4.2.2. Install Speco-NVR and set IP parameters on O2MD2 ..............14 4.2.3. Remote video connection to O2MD2 ................... 17 4.2.4. Additional settings through connection to the Admin Page ............19 Trouble Shooting ............................ -
Page 5: Introduction

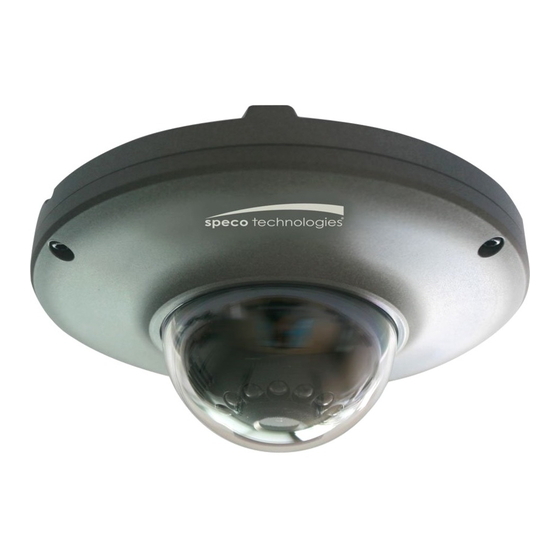

O2MD2 is multi-codec (H.264, MJPEG) IP camera (or network camera) built with embedded software and hardware technology in pancake housing. It enables real time transmission of video of up to 1080P. Remote clients can connect to O2MD2 for the real time video data through various client solutions running on PC or smart device. -
Page 6: Specification
- RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP - NTP, DNS, DynDNS, SOCKS Dynamic IP Speco DDNS (free of charge) - User ID & Password protection, IP address filtering Security - HTTPS encryption, Digest Authentication, User Access Log... -
Page 7: Applications Of O2Md2
Unit, CD, mounting screws Optional Items Adapter DC 12V, 1.5A 1.3. Applications of O2MD2 Small Office, Home environment, Personal user. Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.) Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.) ... -
Page 8: Product Description
2.1. Contents The product package contains followings : Contents Description Remarks O2MD2 IP camera O2MD2 main unit Screws (3 pieces of 1 type), Accessories Anchors (3 pieces of 1 type), L-type wrench 1EA Software & User’s Guide Quick Reference Guide... -
Page 9: Physical Description
’ ’ 2.3. Physical description 2.3.1. External View Figure 2-1. External view of O2MD2 2.3.2. Dimension Unit : mm Figure 2-2. Dimension Rev.1.0 (Mar. 2014) -
Page 10: External Connector
’ ’ 2.3.3. External Connector Power Network (LAN) Figure 2-3. Connector for external connection Rev.1.0 (Mar. 2014) -
Page 11: Functional Description
’ 2.4. Functional Description Power : Power input for supplying 12V DC power. Caution : If O2MD2 is powered by PoE, do not plug in DC Jack with active DC power into DC power connector. Network (LAN) 100Mbps Ethernet connector (RJ-45) with PoE standard (802.3af). LED on the Ethernet connector shows... -
Page 12: On Site Installation
’ ’ 3. On Site Installation Use cables and conduits that are suitable for the installation. Particular attention should be paid in the installation so that no moisture is allowed to penetrate into the unit through the cables or conduits during the life time of the product. -
Page 13: Getting Started
Brief information for first time operation of O2MD2 is provided in this chapter. 4.1. PC Requirement Audio/Video streaming data received from O2MD2 can be displayed or stored in a PC running client programs. Minimum requirement of the PC is described below:... -
Page 14: Quick Installation Guide
(PC is needed to assign IP address to O2MD2) 2. In the case of using PoE, connect the PC and O2MD2 to the network using one of the following ways. If your LAN Switch does not support standard PoE, connect O2MD2 as shown in dotted line in Figure 4-1. - Page 15 ’ ’ Admin Page Button ONSIP Installer Figure 4-2. Speco-NVR Follow the sequence below for setting the IP parameter Run ONSIP installer ① in ONSIP installer window.> Double click on ② > Fill in ④ > make a selection in ⑤ > Fill the Click parameters in ⑥...
- Page 16 ’ ’ Click on the field in ③ for sorting and rearranging the list. Select network mode that best suits from the drop down list in ⑤. You can choose either Static or ADSL and Auto (DHCP), respectively. If ADSL and Auto are selected, the fields in ⑥ is deactivated.
-
Page 17: Remote Video Connection To O2Md2
4.2.3. Remote video connection to O2MD2 1. Connection through Web Viewer Web Viewer offers simplest way of video connection to O2MD2. For video connection, enter the IP address of O2MD2 in the URL window of Internet Explorer as: Can be omitted the [e.g.] Port 80... - Page 18 SAVE button. You can see the live video when you click the live view button as below. When you exit Speco-NVR, you have to input the ID/PW, admin/1234. Details for Speco-NVR can be found in [Speco-NVR User’s Guide].
-
Page 19: Additional Settings Through Connection To The Admin Page
’ ’ 4.2.4. Additional settings through connection to the Admin Page All parameters of the camera are factory default out of the box. For a more sophisticated target application, parameters need to be changed through the admin page. The admin page can be connected through “http://IP_Address:Port_Number/admin.htm”... -
Page 20: Trouble Shooting
’ ’ 5. Trouble Shooting 5.1. No power is applied In case of Standard PoE (Power over Ethernet) Power supply through standard PoE is possible only when the following conditions are met. 1. Standard PoE is supported on the product. 2. -
Page 21: Cannot Connect To The Video
’ ’ 5.2. Cannot connect to the Video Check the status of the network connection through PING test. Try the following on your PC : Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51) If “Reply from ~”... -
Page 22: Windows Vista Or Windows 7
5.3. Windows Vista or Windows 7 Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for proper recording and still video capture in Speco-NVR and Web Viewer. <Windows Vista> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts”... - Page 23 ’ ’ <Windows 7> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts” in control panel 2) Double-click “Change User Account Control setting” 3) Set to “Never notify” Rev.1.0 (Mar. 2014)
- Page 24 ’ ’ 2. Privilege Level Control 1) Select “NVR” icon on the desktop 2) Click right mouse button and select “properties” 3) Check “Privilege Level” in “Compatibility” tab Rev.1.0 (Mar. 2014)
-
Page 25: Technical Assistance
’ ’ 5.4. Technical Assistance If you need any technical assistance, please contact your dealer. For immediate service please provide the following information. 1. Model name 2. MAC address and Registration number 3. Purchase date 4. Description of the problem 5.
