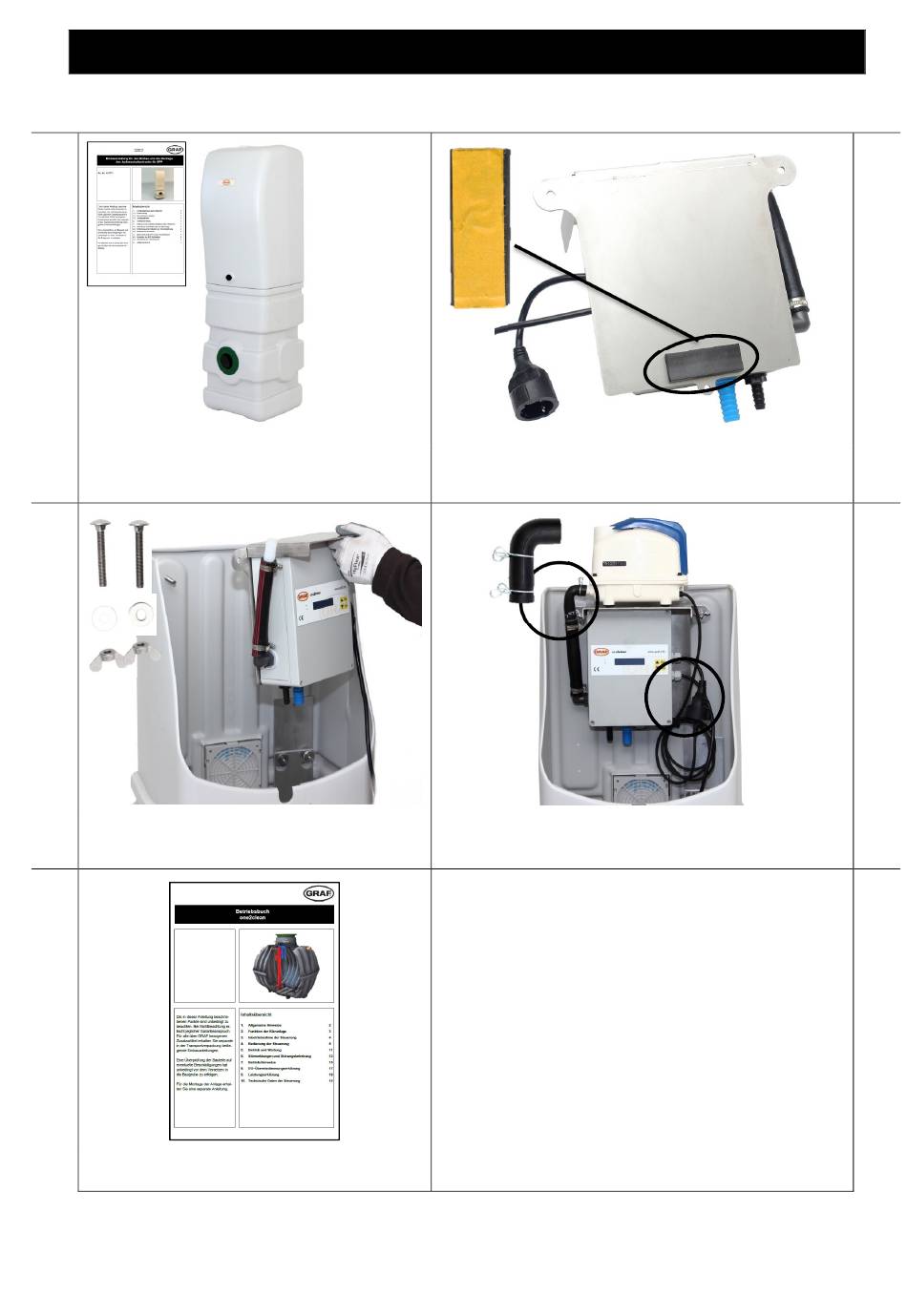

6. Assembling control unit in the external cabinet

1.
Please refer to the installation instructions for
the External Cabinet for electrical connection
details.
3.
The Control Unit should be mounted to the
external cabinet with the screws and wing
nuts provided.
5.
For further information please refer to the
Control Unit operating manual.
6. Assembling control unit in the external cabinet
Before installing the control unit, a strip of foam rubber
must be glued to the back of the control unit.
Position the compressor on top of the Control Unit and
connect together using the 90 Deg hose piece and
hose clamps provided.
21 / 33
2.
4.
