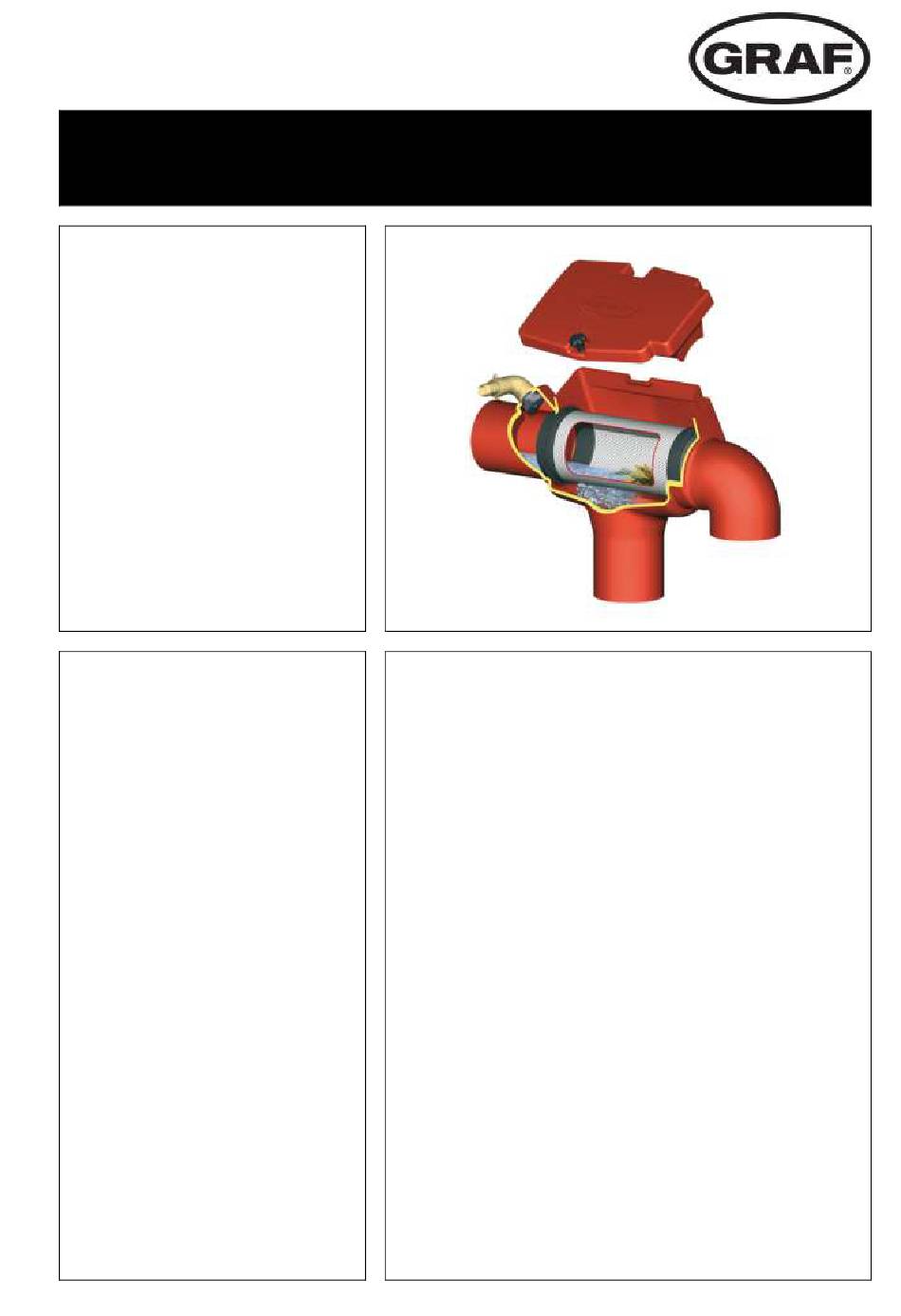

Installation and maintenance instructions for
GRAF MINIMAX
®
MINIMAX
-Filter Internal
Order No.: 340060
®
MINIMAX
-Filter External
pedestrian
Order No.: 340061
®
MINIMAX
-Filter External
for areas traversed by light
traffic
Order No.: 340062
GRAF Filter package
MINIMAX
Order No. 342025
The points described in these
instructions must be observed
under all circumstances. All
warranty rights are invalidated in
the event of non-observance.
Separate installation instructions
are enclosed in the transportation
packaging for all additional articles
purchased from GRAF.
Missing instructions must be
requested from us immediately.
The components must be checked
for any damage prior to installation
under all circumstances.
Missing instructions can be
downloaded on www.graf.info or
can be requested from GRAF.
mail@graf.info
www.graf.info
®
-Filter internal and external
Table of contents
1.
GENERAL NOTES
1.1
Security
1.2
Identification obligation
2.
INSTALLATION CONDITIONS
®
2.1
MINIMAX
-Filter internal:
®
2.2
MINIMAX
-Filter external pedestrian:
®
2.3
MINIMAX
-Filter extern PKW-befahrbar:
3.
TECHNICAL DATA MINIMAX
4.
TECHNICAL DATA MINIMAX
5.
INSTALLATION AND ASSEMBLY
®
5.1
MINIMAX
-Filter internal
®
5.2
MINIMAX
-Filter external
6.
COMMISSIONING AND SERVICE
6.1
Commissioning
6.2
Service
7.
EFFICIENCY / PERFORMANCE
8.
MOUNTING OF CLEANING UNIT
9 / 32
®
-FILTER INTERNAL
®
-FILTER EXTERNAL
10
10
10
10
10
10
10
11
12
13
13
14
15
15
15
16
16
Advertisement
Table of Contents
Related Manuals for Graf MINIMAX
Summary of Contents for Graf MINIMAX
- Page 1 MINIMAX -Filter external for any damage prior to installation COMMISSIONING AND SERVICE under all circumstances. Commissioning Service Missing instructions can be EFFICIENCY / PERFORMANCE downloaded on www.graf.info or MOUNTING OF CLEANING UNIT can be requested from GRAF. 9 / 32...
-
Page 2: General Notes
GRAF offers an extensive range of accessories, all of which are designed to match each other and which can be extended to form complete systems. The use of other accessories may lead to impediments to the system's functional capability, therefore invalidating liability for resulting damage. - Page 3 ® Technical data MINIMAX -Filter Internal Zulauf Inflow Outflow Ablauf Tank Siphon Fließrichtung Designed structure 11 / 32...
- Page 4 ® Technical data MINIMAX -Filter External Zulauf Inflow Ablauf Outflow Zulauf Inflow Tank Tank Tank Fließrichtung Designed structure 12 / 32...
-
Page 5: Installation And Assembly
(included in the Pipe length with bush: MINIMAX add on packet). The couplings should Rohrlänge inkl. Muffe: be secured with commercial self tapping screws. 1500 L = 470 mm... - Page 6 Installation and assembly ® MINIMAX -Filter external 5.2.1 Excavation So that sufficient working room is available and the filter can be evenly embedded, the surface area of the excavation should exceed the filter dimensions on all sides by approximately 300 mm.
-
Page 7: Commissioning And Service
Installation and assembly 5.2.5 Telescope suitable for light traffic To ensure the function in areas traversed by light traffic, the telescope must be embedded around the collar with lean mixed concrete. The concrete encasement must be uninterrupted, 20 cm wide and approximately 30 cm deep. - Page 8 GRAF Iberica Tecnología del Plástico S.L. – Marquès Caldes de Montbui, 114 – ES-17003 Girona – Tel.: +34 972 913767 – Fax: +34 972 913766 GRAF UK Ltd – Target House – Thorpe Way Ind. Estate – Banbury – Oxfordshire – UK-OX16 4SP – Tel.: +44 1608 661-500 – Fax: + 44 1608 665-466...
